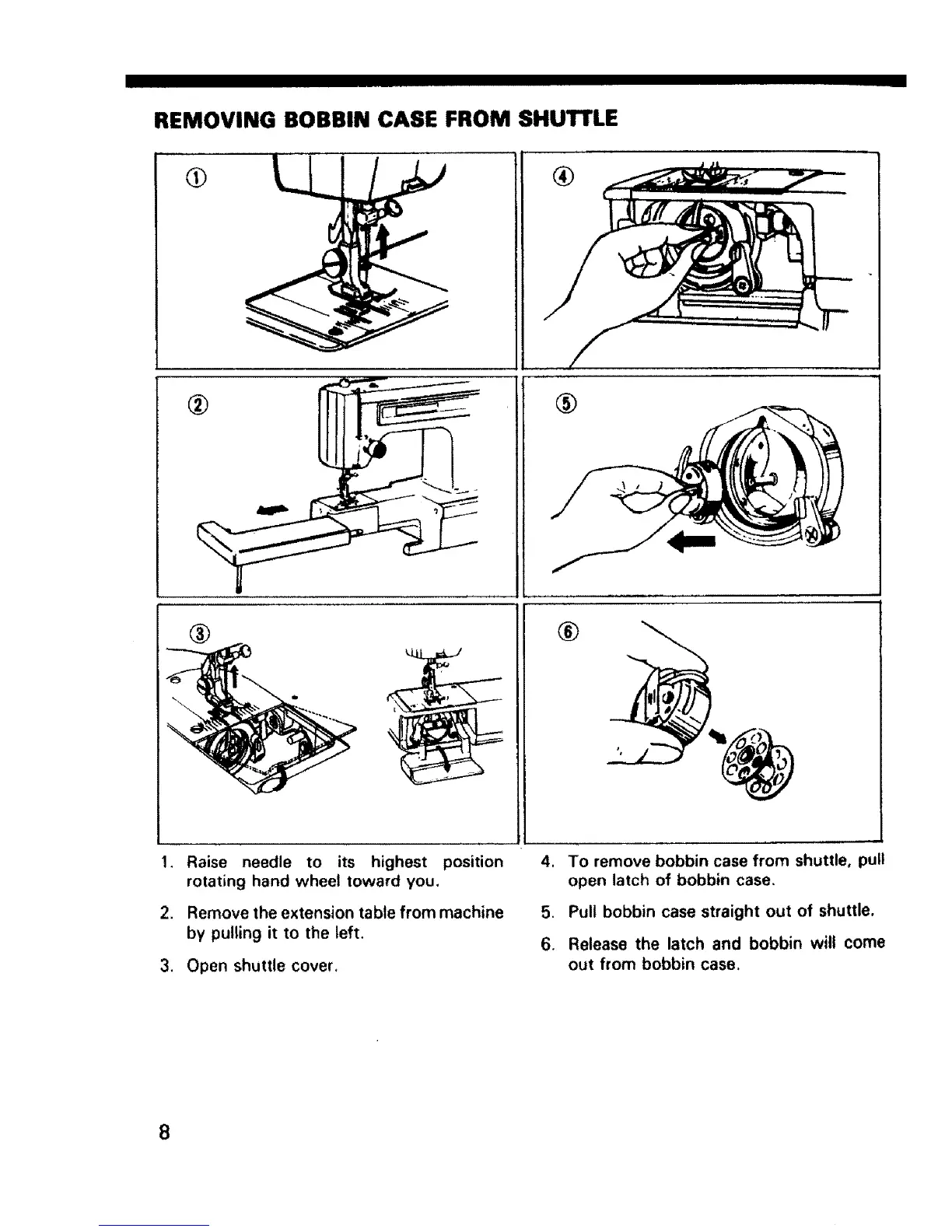

REMOVING BOBBIN CASE FROM SHUTTLE
®
®
®
1, Raise needle to its highest position 4.
rotating hand wheel toward you.
2. Remove the extension table from machine 5.
by pulling it to the left.
6.
3. Open shuttle cover.
To remove bobbin case from shuttle, pull
open latch of bobbin case.
Pull bobbin case straight out of shuttle.
Release the latch and bobbin wilt come
out from bobbin case.
8
