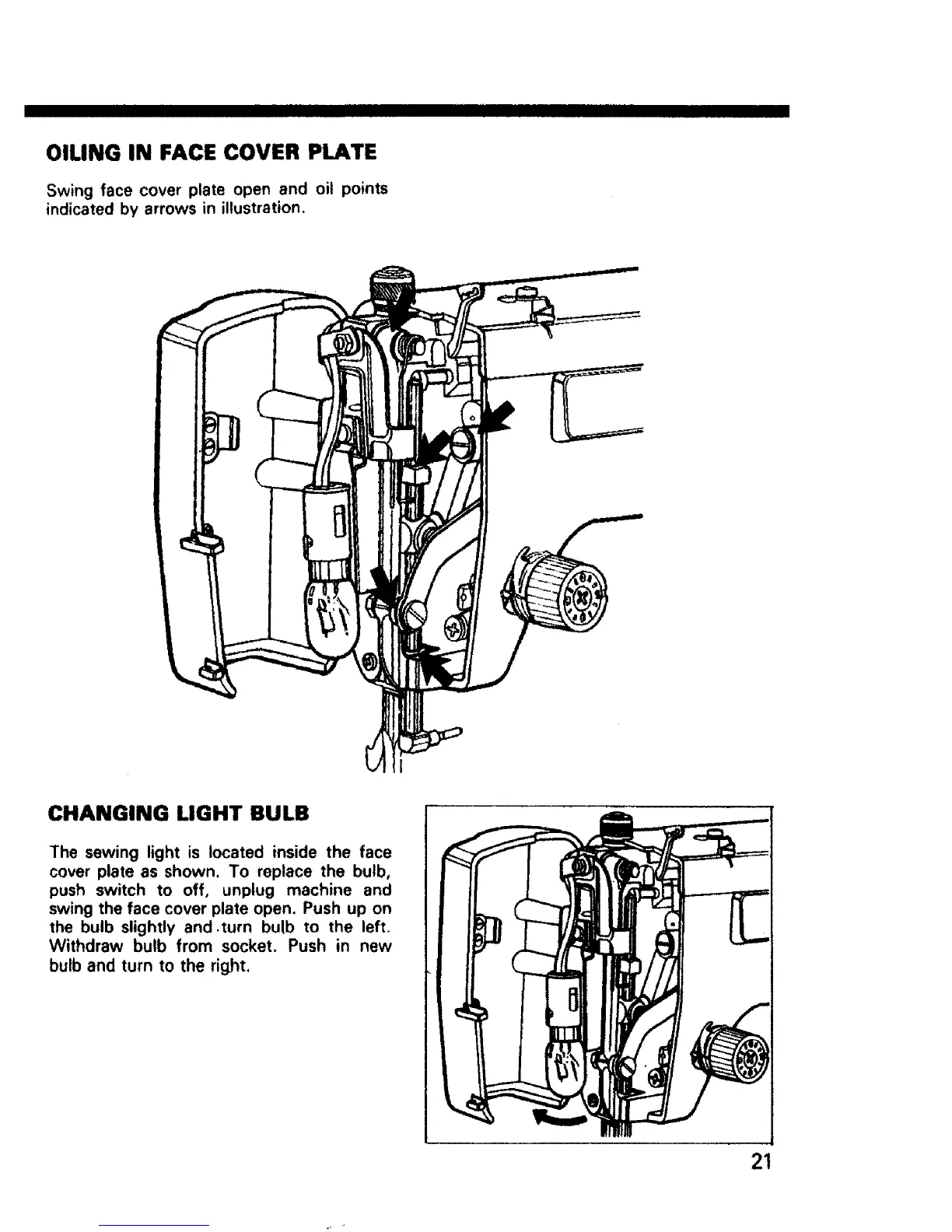

OILING IN FACE COVER PLATE
Swing face cover plate open and oil points
indicated by arrows in illustration.
I
CHANGING LIGHT BULB
The sewing light is located inside the face
cover plate as shown. To replace the bulb,
push switch to off, unplug machine and
swing the face cover plate open. Push up on
the bulb slightly and,turn bulb to the left.
Withdraw bulb from socket. Push in new
bulb and turn to the right.
21
