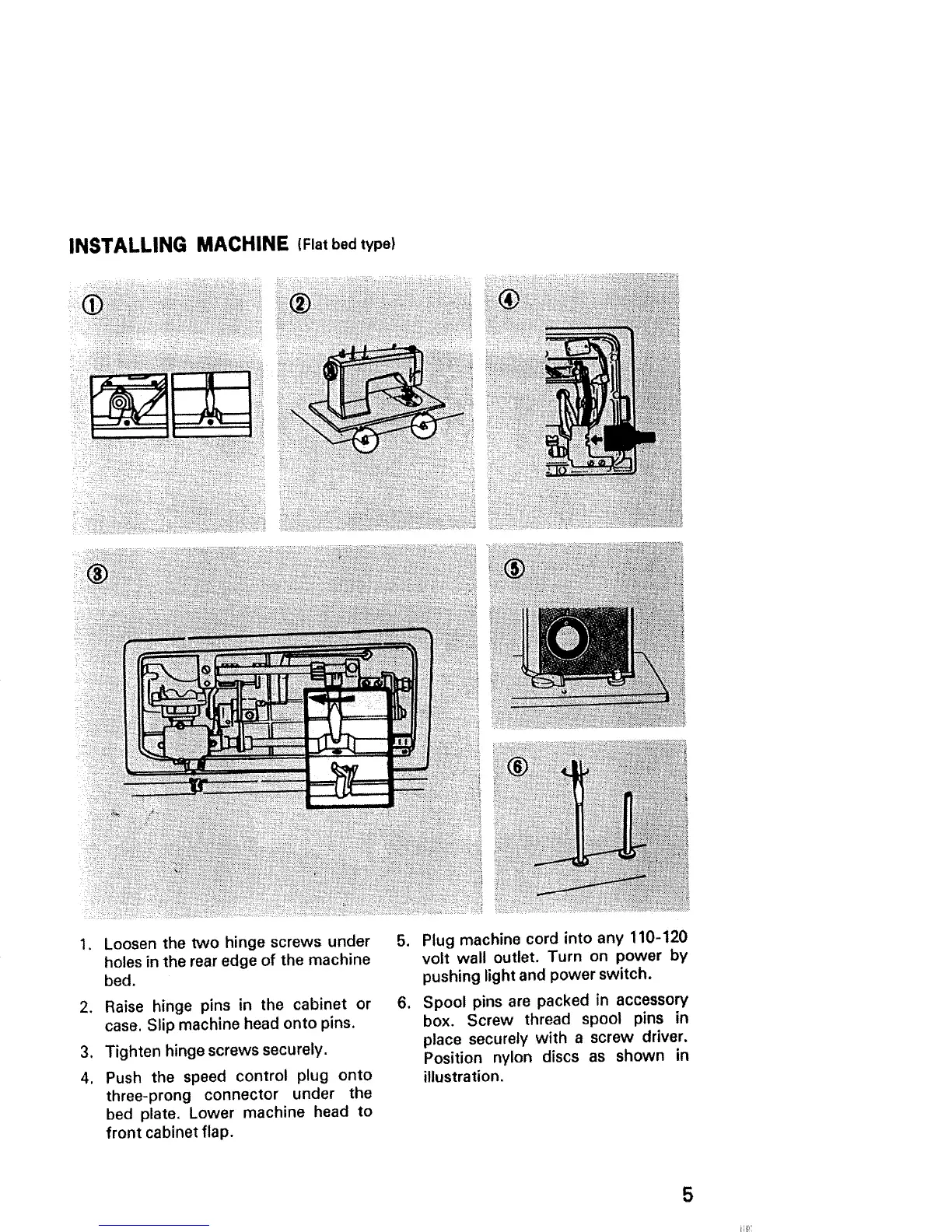

INSTALLING MACHINE (Flat bed type)
1. Loosen the two hinge screws under
holes in the rear edge of the machine
bed.
2. Raise hinge pins in the cabinet or
case. Slip machine head onto pins.
3. Tighten hinge screws securely.
4, Push the speed control plug onto
three-prong connector under the
bed plate. Lower machine head to
front cabinet flap,
g
6,
Plug machine cord into any 110-120
volt wall outlet. Turn on power by
pushing light and power switch.
Spool pins are packed in accessory
box. Screw thread spool pins in
place securely with a screw driver.
Position nylon discs as shown in
illustration.
5
