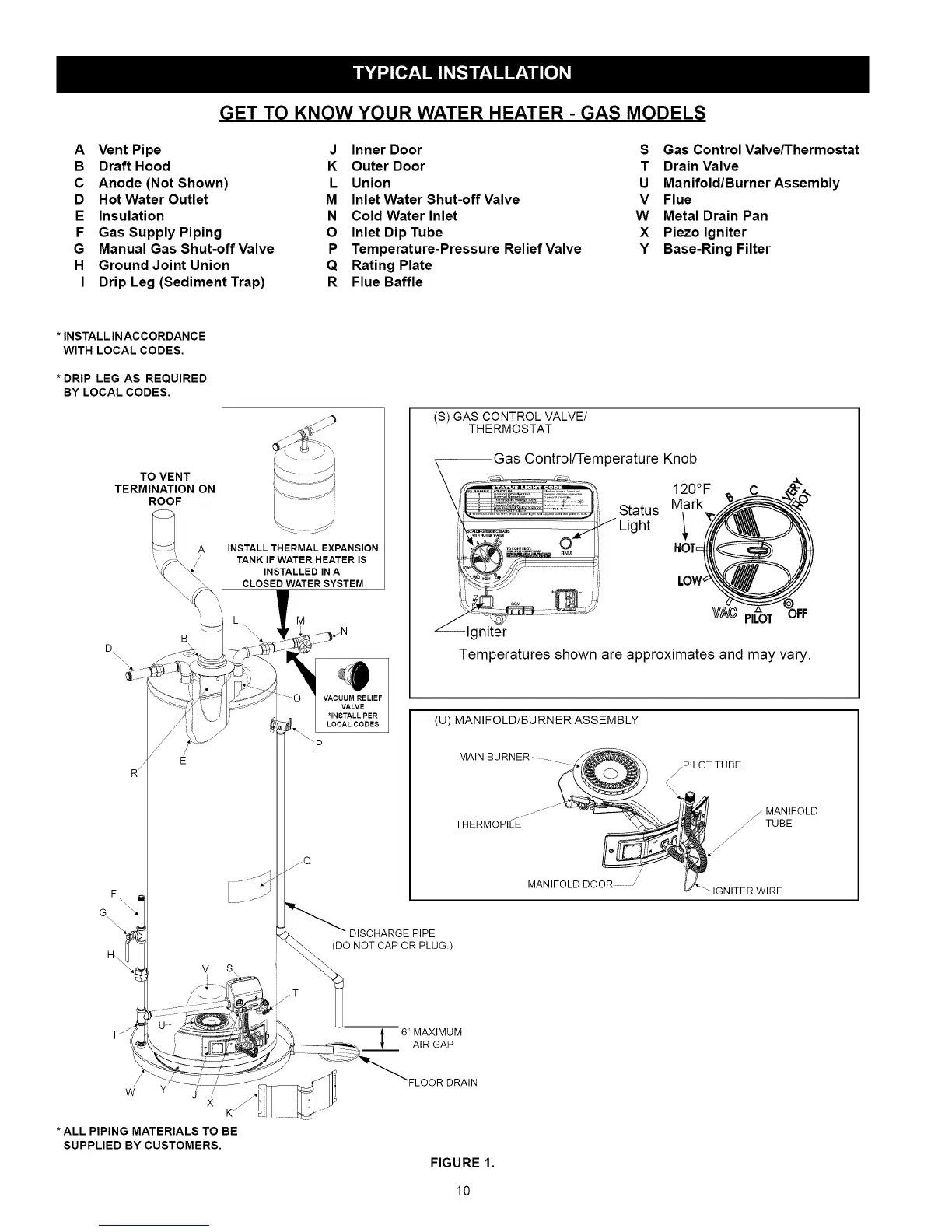

GET TO KNOW YOUR WATER HEATER - GAS MODELS
A Vent Pipe
B Draft Hood
C Anode (Not Shown)
D Hot Water Outlet
E Insulation
F Gas Supply Piping
G Manual Gas Shut-off Valve
H Ground Joint Union
I Drip Leg (Sediment Trap)
J Inner Door
K Outer Door
L Union
M Inlet Water Shut-off Valve
N Cold Water Inlet
O Inlet Dip Tube
P Temperature-Pressure Relief Valve
Q Rating Plate
R Flue Baffle
S Gas Control Valve/Thermostat
T Drain Valve
U Manifold/Burner Assembly
V Flue
W Metal Drain Pan
X Piezo Igniter
Y Base-Ring Filter
* INSTALL INACCORDANCE
WITH LOCAL CODES.
* DRIP LEG AS REQUIRED
BY LOCAL CODES.
TO VENT
TERMINATION ON
ROOF
B
D
INSTALL THERMAL EXPANSION
TANK IF WATER HEATER IS
INSTALLED IN A
CLOSED WATER SYSTEM
(S) GAS CONTROL VALVE/
THERMOSTAT
Control/Temperature Knob
120°F
Status Mark
Light 1
gniter
Temperatures shown are approximates and may vary.
F
G
H\
(U) MANIFOLD/BURNER ASSEMBLY
MAIN BURNER
//
MANIFOLD DOOR J
_PILOT TUBE
MANIFOLD
TUBE
f
IGNITER WIRE
DISCHARGE PIPE
(DO NOT CAP OR PLUG.)
i 6"MAXIMUM
AIR GAP
* ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMERS.
FIGURE 1.
