Kenmore 35132 - Unpacking Instructions; Parts of the Air Conditioner; Accessories

4
1. Place the unit in the correct upright position before unpacking.
2. Cut the two packing straps.
3. Slide the carton in an upwards motion and it will release from the base.
(We recommend that you retain the packaging for off season storage)
4. Grip the carry handles located on either side of the unit and carefully lift until it slides
out of the foam base.
5. Disconnect the tie-in inside the exhaust tube and take out
the exhaust tube.
Remove the air conditioner from the packing carton. It is recommended to keep the carton and packing material for storage or
transportation of the unit.
Hose
Drain hose
For continuous
drainage
Remote sensor kit
(used only in out of room
cooling mode)
Window slider kit
(3pcs)
2 AAA batteries
Remote Control

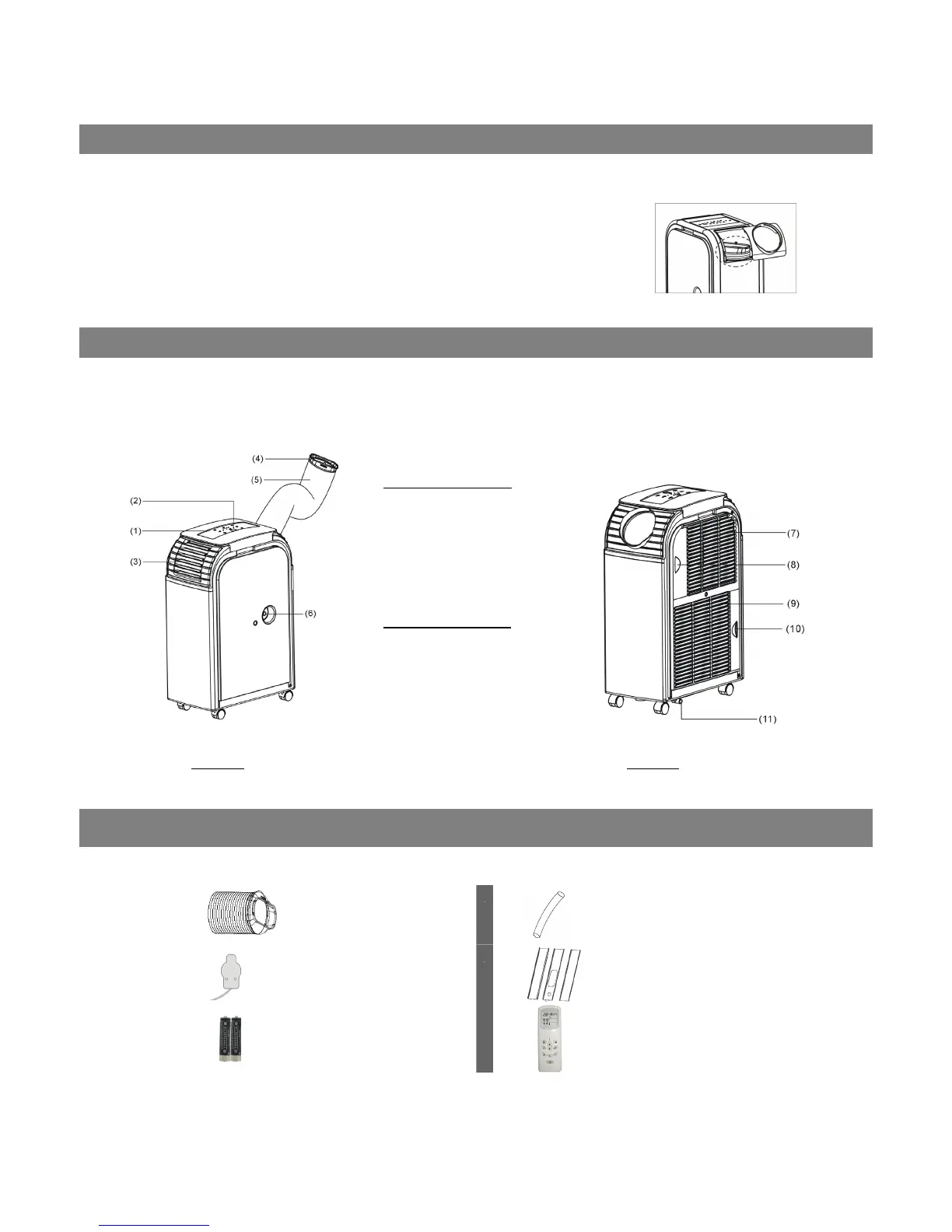

PARTS OF THE AIR CONDITIONER
ACCESSORIES
UNPACKING INSTRUCTIONS
Fi
g
ure 1 Fi
g
ure 2
Front of Unit (Figure 1)
1. Control panel
2. Remote receiver
3. Adjustable air vent
4. Hose joint
5. Exhaust hose
6. Upper drain outlet
Rear of Unit (Figure 2)
7. Cool air inlet
8. Cool air filter
9. Warm air inlet
10. Warm air filter
11. Drain outlet
Upon unpacking the air conditioner, check to ensure these following accessories are included:
