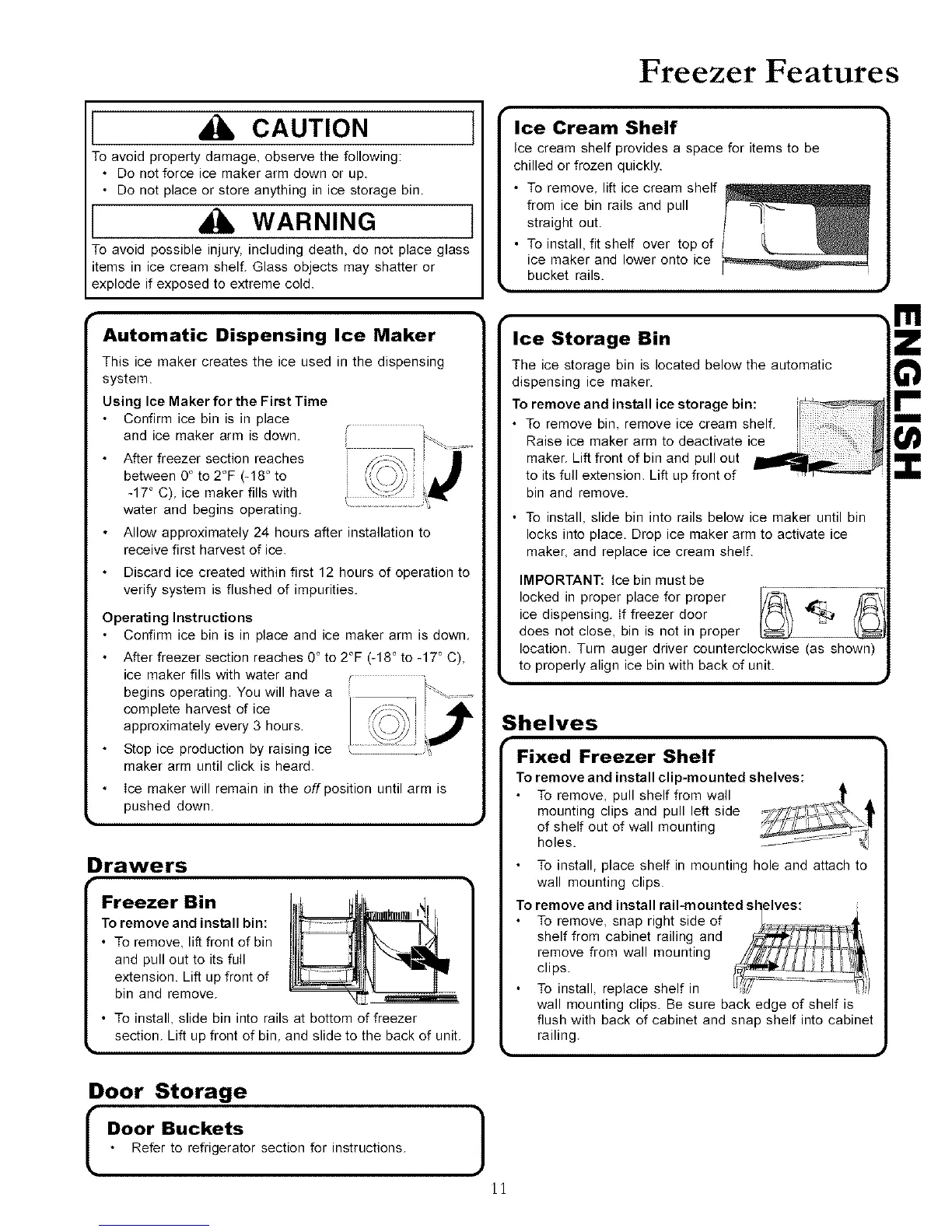

Freezer Features
CAUTION ]
To avoid property damage, observe the following:
• Do not force ice maker arm down or up.
• Do not place or store anything in ice storage bin.
WARNING I
To avoid possible injury, including death, do not place glass
items in ice cream shelf. Glass objects may shatter or
explode if exposed to extreme cold.
Automatic Dispensing Ice Maker
This ice maker creates the ice used in the dispensing
system.
Using Ice Maker for the First Time
Confirm ice bin is in place
and ice maker arm is down.
After freezer section reaches
between 0° to 2°F (-18 ° to
-17 ° C), ice maker fills with
water and begins operating.
Allow approximately 24 hours after installation to
receive first harvest of ice.
Discard ice created within first 12 hours of operation to
verify system is flushed of impurities.
Operating Instructions
Confirm ice bin is in place and ice maker arm is down,
After freezer section reaches 0 ° to 2°F (-18 ° to -17 ° C),
ice maker fills with water and
begins operating. You will have a
complete harvest of ice
approximately every 3 hours.
Stop ice production by raising ice
maker arm until click is heard.
Drawers
Ice maker will remain in the off position until arm is
pushed down.
Freezer Bin L
To remove and install bin:
• To remove, lift front of bin
and pull out to its full
extension. Lift up front of
bin and remove.
• To install, slide bin into rails at bottom of freezer
section. Lift up front of bin, and slide to the back of unit.
, •
Ice Cream Shelf
Ice cream shelf provides a space for items to be
chilled or frozen quickly.
• To remove, lift ice cream shelf
from ice bin rails and pull
straight out.
• To install, fit shelf over top of
ice maker and lower onto ice
bucket rails.
Ice Storage Bin
The ice storage bin is located below the automatic
dispensing ice maker.
To remove and install ice storage bin:
• To remove bin. remove ice cream shelf.
Raise ice maker arm to deactivate ice
maker. Lift front of bin and pull out
to its full extension. Lift up front of
bin and remove.
• To install, slide bin into rails below ice maker until bin
locks into place. Drop ice maker arm to activate ice
maker, and replace ice cream shelf.
IMPORTANT: Ice bin must be
locked in proper place for proper _ _
ice dispensing. If freezer door ..
does not close, bin is not in proper
location. Turn auger driver counterclockwise (as shown)
to properly align ice bin with back of unit.
Shelves
Fixed Freezer Shelf
To remove and install clip-mounted shelves:
To remove, pull shelf from wall
mounting clips and pull left side
of shelf out of wall mounting
holes.
To install, place shelf in mounting hole and attach to
wall mounting clips.
To remove and install rail-mounted shelves:
• To remove, snap right side of L _ _ _.
shelf from cabinet railing and _l_,_/
remove from wall mounting ////f_F_-!ii_
• clips. _ L__'
To install, replace shelf in L_ii_//_°°_!;I
wall mounting clips. Be sure back edge of shelf is
flush with back of cabinet and snap shelf into cabinet
railing.
m
Door Storage
I Door Buckets
• Refer to refrigerator section for instructions.
)
11
