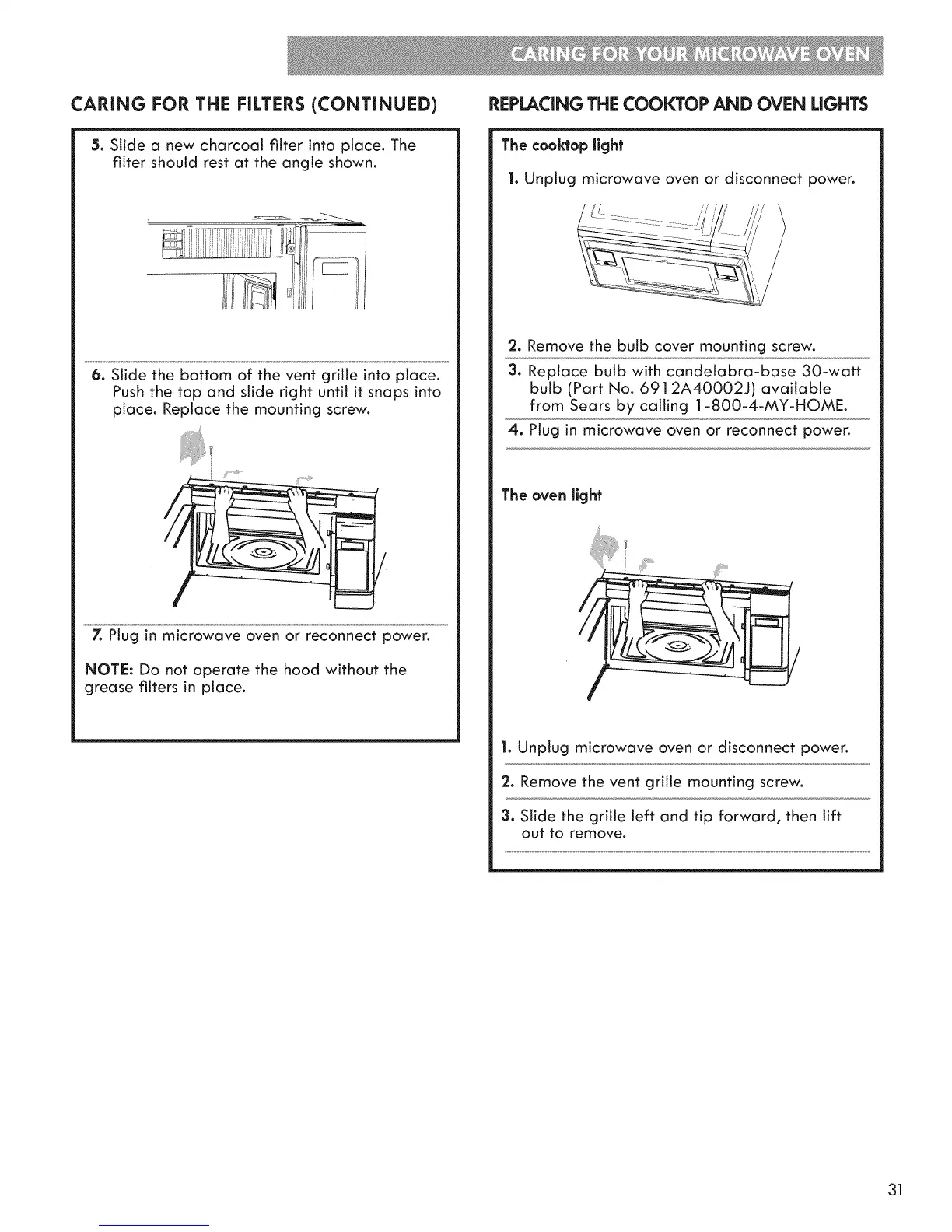

CARING FOR THE FILTERS (CONTINUED)
5. Slide a new charcoal filter into place. The
filter should rest at the angle shown.
6. Slide the bottom of the vent grille into place.
Push the top and slide right until it snaps into
place. Replace the mounting screw.
7. Plug in microwave oven or reconnect power.
NOTE: Do not operate the hood without the
grease filters in place.
REPLACING THE COOICroP AND OVEN LIGHTS
The ¢ooktop light
1. Unplug microwave oven or disconnect power.
/
2. Remove the bulb cover mounting screw.
3. Replace bulb with candelabra-base 30-watt
bulb (Part No. 691 2A40002J) available
from Sears by calling 1-800-4-MY-HOME.
4. Plug in microwave oven or reconnect power.
The oven llght
1. Unplug microwave oven or disconnect power.
2. Remove the vent grille mounting screw.
3. Slide the grille left and tip forward, then lift
out to remove.
31
