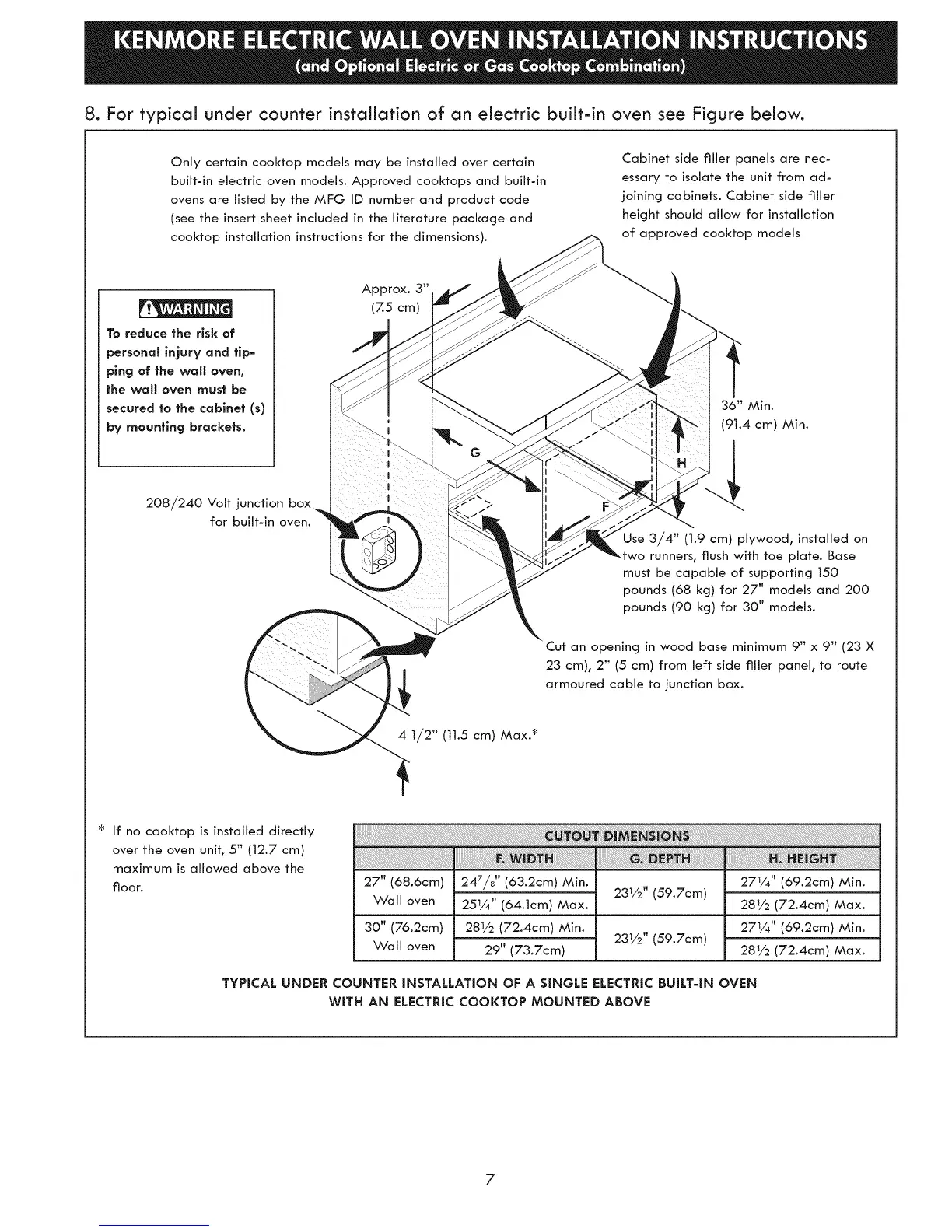

8. For typical under counter installation of an electric built-in oven see Figure below.
Only certain cooktop models may be installed over certain
built=in electric oven models. Approved cooktops and built-in
ovens are listed by the MFG ID number and product code
(see the insert sheet included in the literature package and
cooktop installation instructions for the dimensions).
Cabinet side filler panels are nec-
essary to isolate the unit from ad-
joining cabinets. Cabinet side filler
height should allow for installation
of approved cooktop models
To reduce the risk of
personal injury and tip=
ping of the wall oven,
the wall oven must be
secured to the cabinet (s)
by mounting brackets.
Approx. 3"
(Z5 cm)
36" Min.
(91.4 cm) Min.
208/240 Volt junction box
for built-in oven.
Use 3/4" (1.9 cm) plywood, installed on
_-two runners, flush with toe plate. Base
must be capable of supporting 150
pounds (68 kg) for 27" models and 200
pounds (90 kg) for 30" models.
Cut an opening in wood base minimum 9" x 9" (23 X
23 cm), 2" (5 cm) from left side filler panel, to route
armoured cable to junction box.
4 1/2" (11.5 cm) Max.*
If no cooktop is installed directly
over the oven unit, 5" (12.7 cm)
maximum is allowed above the
floor.
27" (68.6cm)
Wall oven
30" (76.2cm)
Wail oven
247/8 '' (63.2cm) Min.
25V4" (64.1cm) Max.
281/2 (72.4cm) Min.
29" (73.7cm)
27t/4 '' (69.2cm) Min.
281/2 (72.4cm) Max.
27t/4 '' (69.2cm) Min.
281/2 (72.4cm) Max.
TYPICAL UNDER COUNTER INSTALLATION OF A SINGLE ELECTRIC BUILT-IN OVEN
WiTH AN ELECTRIC COOKTOP MOUNTED ABOVE
7
