NOTE
DO NOT remove the ground screw
from hinge.
Door Removal Instructions

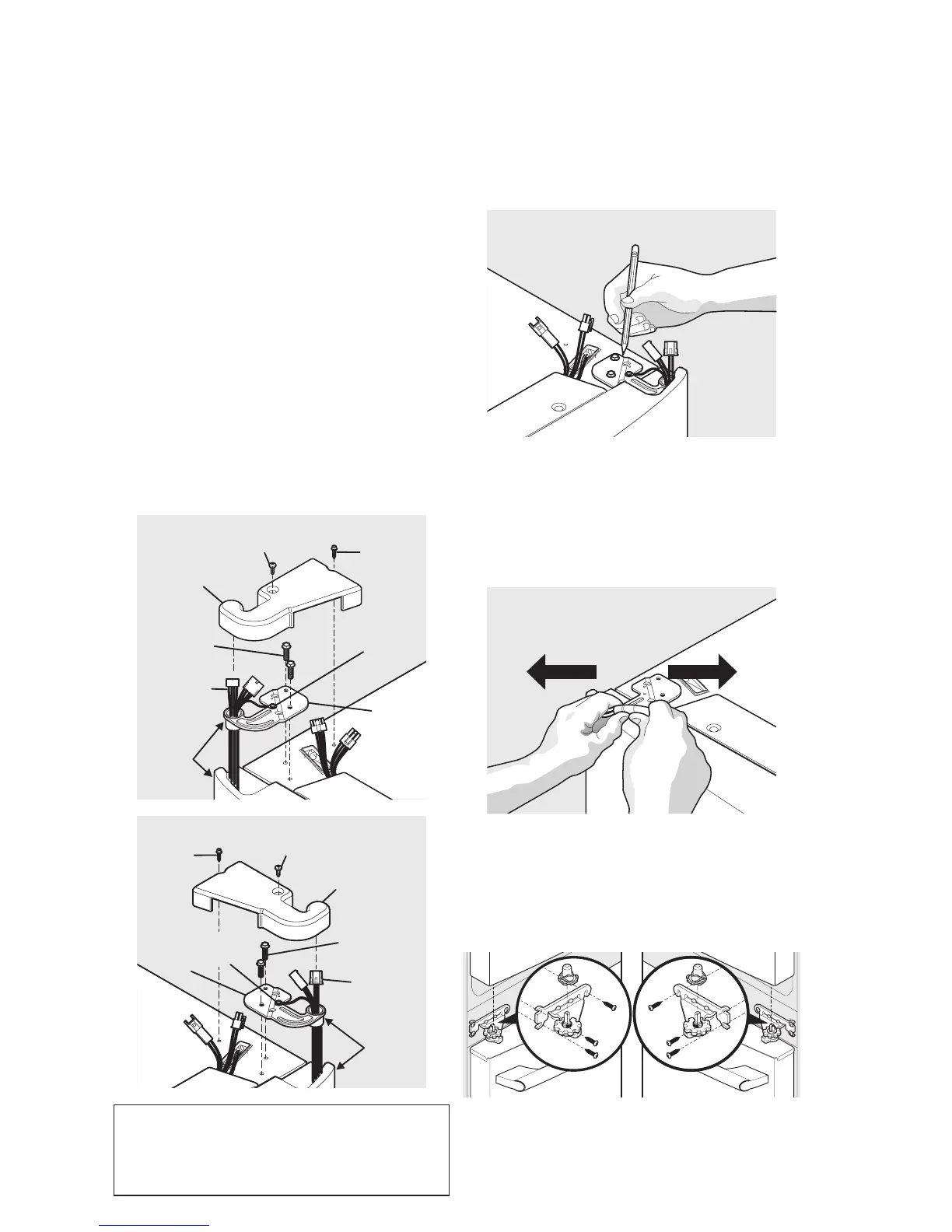

To remove the refrigerator doors:
1. Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
2. Disconnect the harness by grasping
both sides of the connector rmly,
depress the latch, and pull apart.
Remove the two screws from the top
hinge. Lift the door o of the bottom
hinge and set it aside.
Getting Through Narrow Spaces
If your refrigerator will not t through an
entrance area, you can remove the doors.
Check rst by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord
is unplugged from the wall outlet.
2. Open the freezer drawer and remove
the toe grille (see “Installation” section).
3. Remove any food from the door shelves
and close the doors.
To remove the top hinge covers:
1. Remove the two screws from each
cover over the top door hinges.
2. Lift inside edge of hinge cover and
tilt back.
Rear
Cover
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Two Wire
Cables
Leave
Hinge
With
Door
Top
Hinge
Ground
Screw
Rear
cover
screw
Ground
screw
Top
hinge
Front
cover screw
Top hinge
cover
Hinge
screws
Multi-wire
cables
Leave
hinge
with
door
Lower Hinge Removal
3. Unscrew the three lower hinge screws
and hinge if necessary.
To reinstall the right door, reverse the
above steps.
