13
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury, or damage to
the doors or handles.
Door Removal Instructions (Continued)
Once both doors are in place, ensure they
are aligned with each other and level (Please
see the “Installation” section for more details),
and replace the top hinge cover.

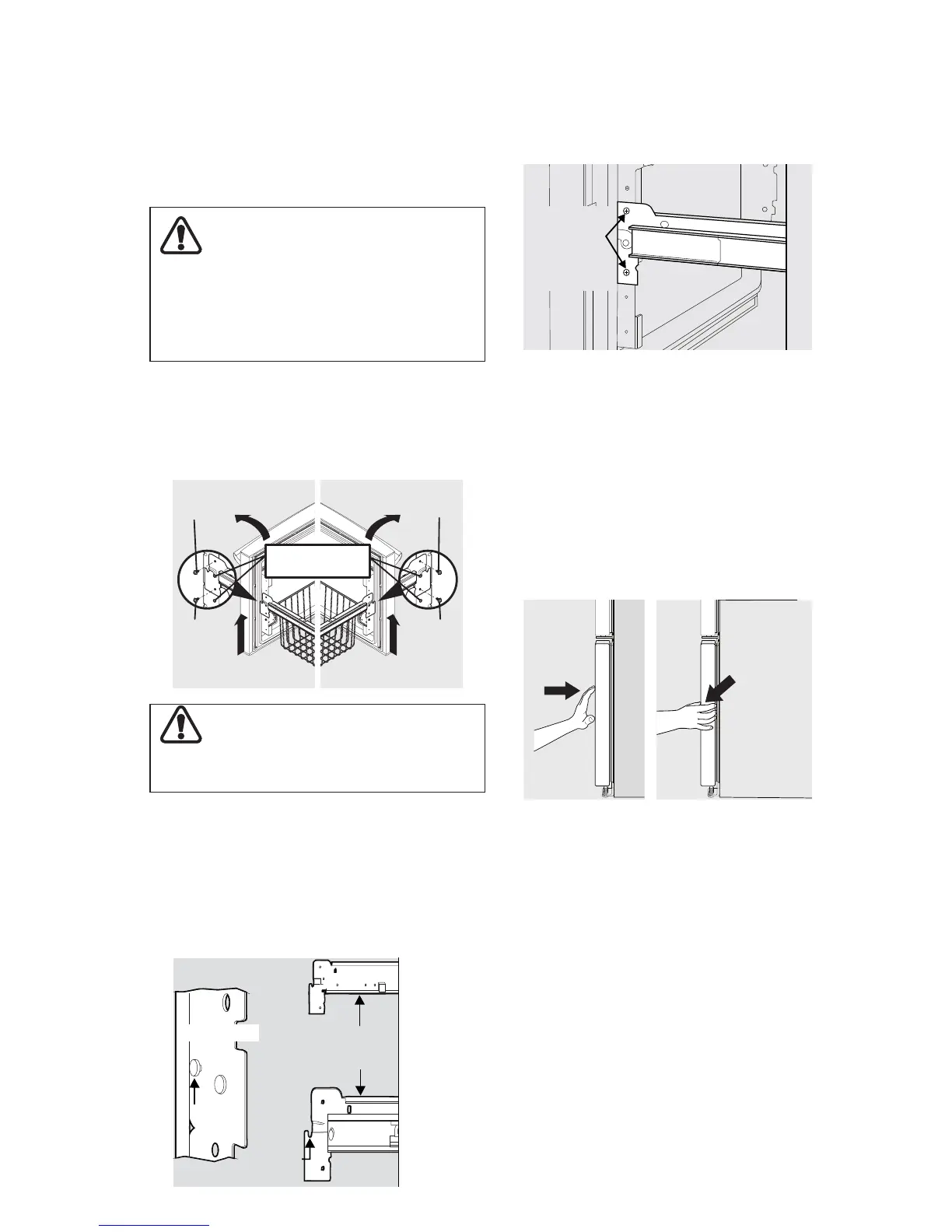

Removing Freezer Drawer
1. Open freezer drawer.
2. Remove drawer screws on right and
left sides (two screws on each side).
3. Lift drawer up and out to remove.
Installing Freezer Drawer
1. With lower slides pulled out, hang
drawer onto slide brackets ensuring
pins on each side are fully inserted
into slots on each side.
6. Tighten four drawer screws.
7. Recheck gasket seal.
8. Install the toe grille by tting into place.
2. Reinstall four drawer screws (two per
side), tighten down, and close drawer (C).
A
B
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
Assembly
Pin
Slot
Cabinet
Fully Extend
Drawer Slides
Install
crews
(2) Each
Side
3. Check gasket seal around top,
bottom, and sides of freezer drawer.
4. If gasket is not sealed, open drawer
and slightly loosen four drawer
screws (two on each side) to allow
drawer to rotate.
5. Close drawer and recheck the seal
on the gasket (A). Open the drawer
grabbing by the sides in the center (B).
Be careful not to rotate the drawer.
Do Not Remove
Other Screws
Remove
Hex
Head Drawer
Screw
To Next Page
