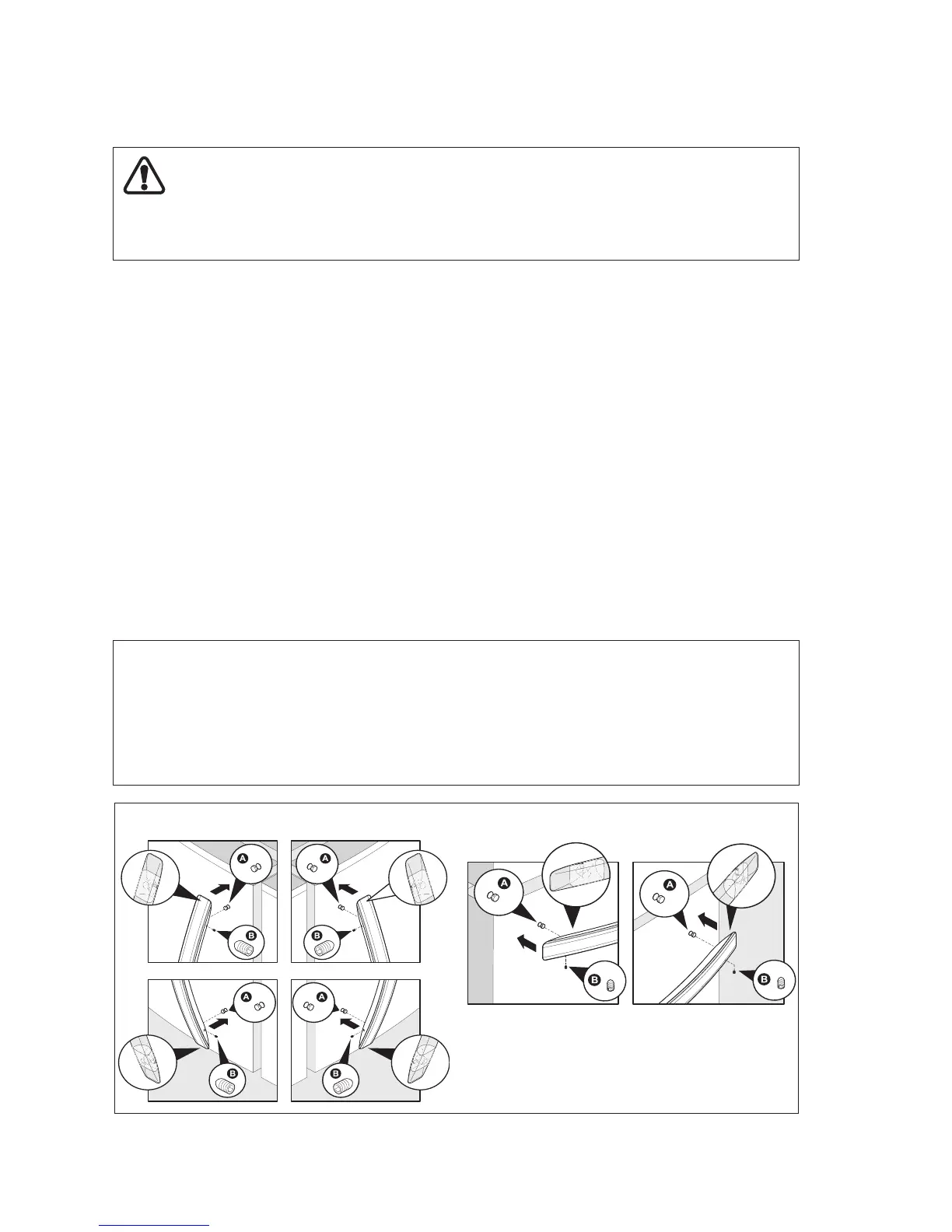

14
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these
handles. The rounded end of the handles may be sharp.
NOTE
All set screws should be tightened so that the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time. If this happens, tighten the set screws on the handles.
Installing Your Door Handles
Mounting Freezer HandlesMounting Refrigerator Handles
1. Remove handles from carton and any other protective packaging.
2. Position fresh food handle end over upper and lower pre-installed shoulder bolts
(A) that are fastened into the door, ensuring the holes for the set screws are facing
towards the opposite door.
3. While holding handle rmly against door, fasten upper and lower Allen set screws
(B) with supplied Allen wrench.
4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws
are facing towards the rst door.
5. Position freezer handle end over left and right pre-installed handle mounts that
are fastened to the door, ensuring the holes for the set screws are facing down.
6. While holding handle rmly against door, loosely tighten far right Allen set screw
(B) with supplied Allen wrench until there is no gap between handle and door.
7. Still holding the handle rmly to the door, rmly tighten far left Allen set screw (B)
with supplied Allen wrench.
8. Return to the far right Allen set screw (B) and rmly tighten with supplied Allen wrench.
Door Handle Mounting Instructions
