Kenmore D02 M90221 - Assembly

ASSEMBLY

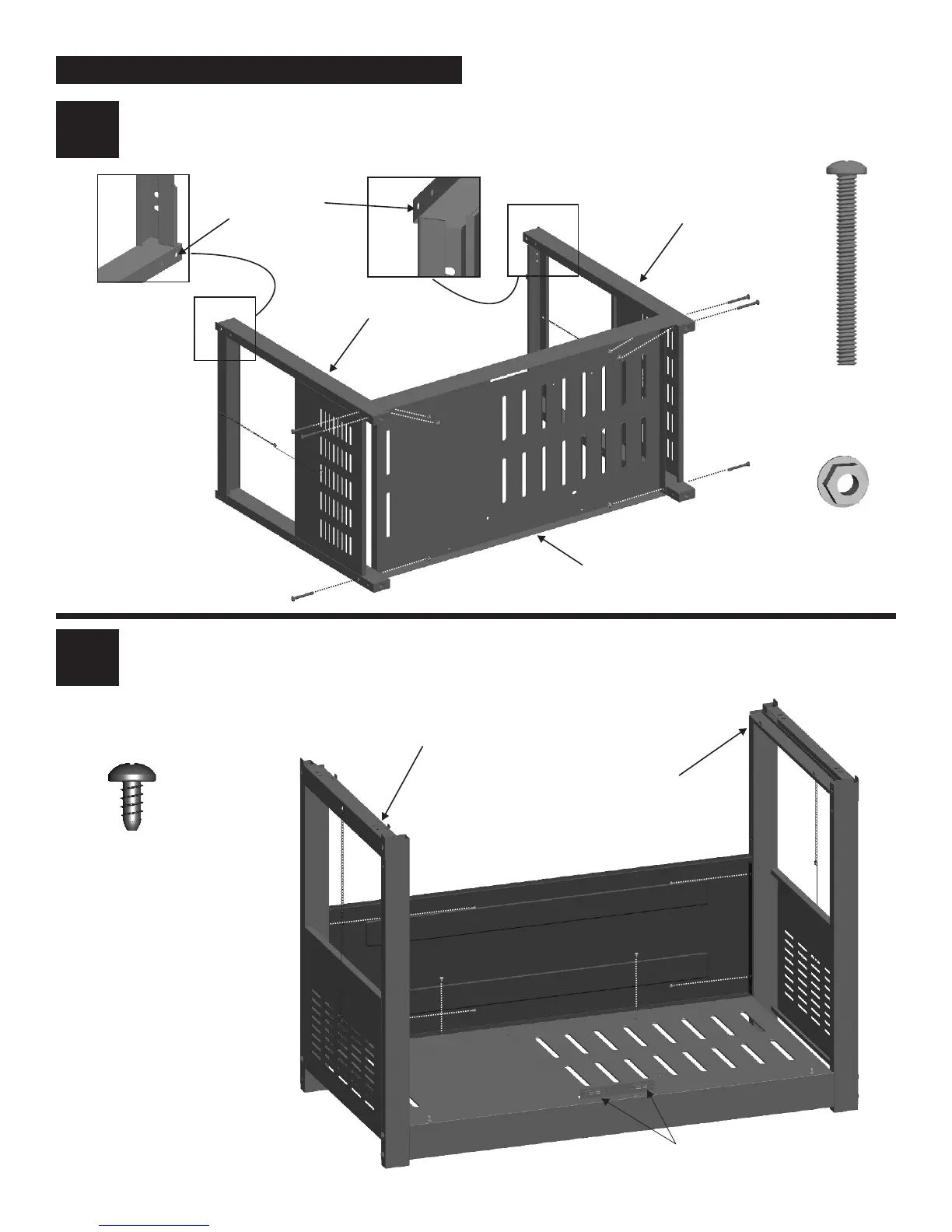

• Place lower back panel between side panels as shown. Attach to left and right side panels with (4) #8x3/8” sheet metal
screws. Then attach to bottom shelf with (2) #8x3/8” sheet metal screws.
11
2
1/4-20
Flange Nut
Qty: 6
1/4-20x2-3/8"
Machine Screw
Qty: 6
Sheet Metal Screws
Qty. 6
#8x3/8"
Left Side Panel
Right Side Panel
Right Side Panel
Left Side Panel
Magnet Assembly
Lower Back Panel
For Front Door
Brace Assembly
Rear
Front
Bottom Shelf
Bottom Shelf
• Attach bottom shelf to left and right leg assemblies with 1/4-20x2-3/8” machine screws and 1/4-20 flange nuts. The
cut out hole for the LP cylinder should be on the left side.
466225712 • 17
