Caster
Pin
4
•

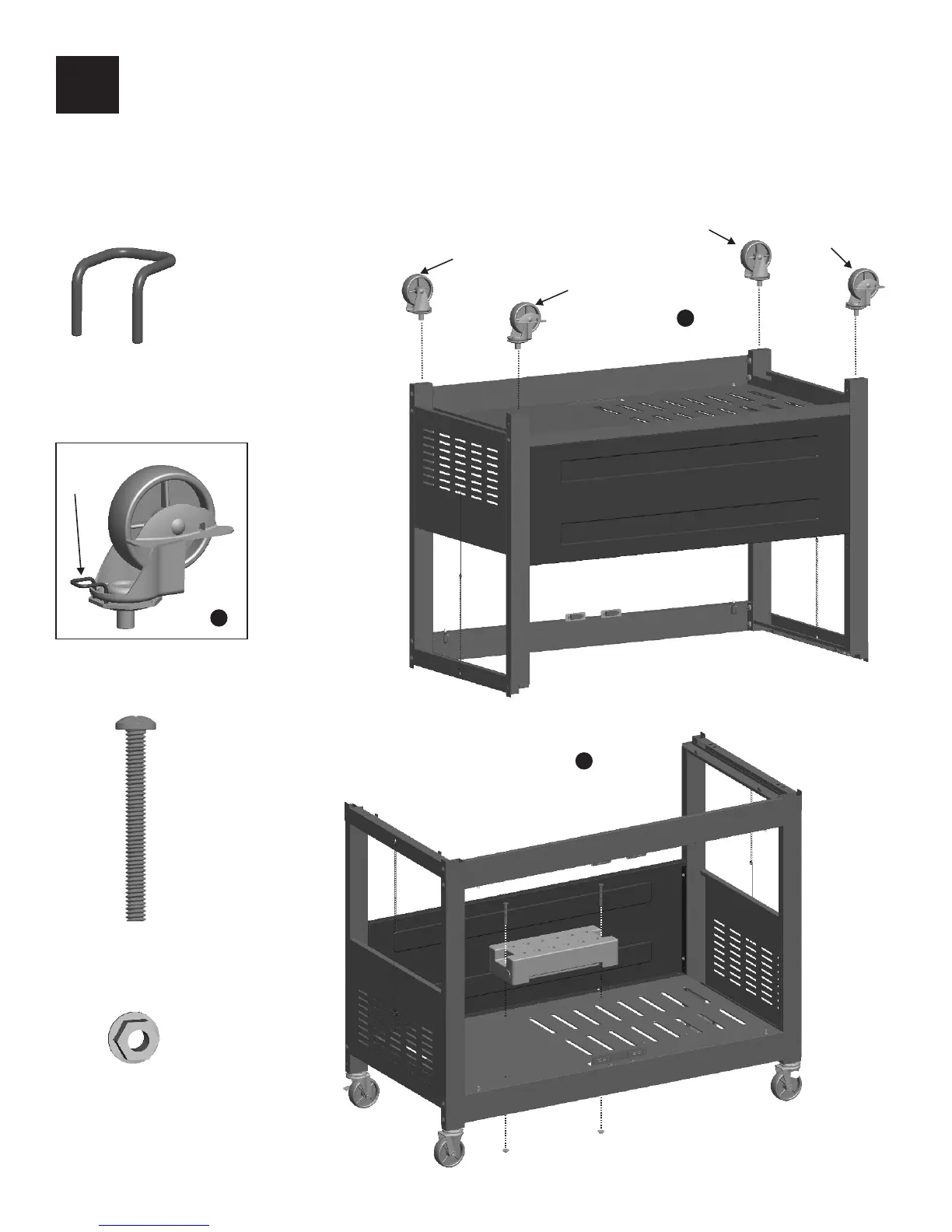

• Insert Caster Pin into the caster mounting plate to lock it in place, shown A. Spin the caster clockwise into the threads on
the bottom shelf until secure. Remove the Caster Pin and repeat for remaining casters. Make sure the two locking casters
are secured at the rear and the non-locking casters are secured at the front (B). After all 4 casters are secure remove the
Caster Pin and save for future maintenance.
• Stand cart upright.
• Attach weight block to bottom shelf with (2) 1/4-20x2” machine screws and 1/4-20 flange nuts (C).
Turn assembly upside down.
Caster Pin
1/4-20
Flange Nut
Qty: 2
1/4-20x2"
Machine Screw
Qty: 2
A
C
Rear
Locking Caster
Fixed Caster
Locking Caster
Fixed Caster
B
466225712 • 19
