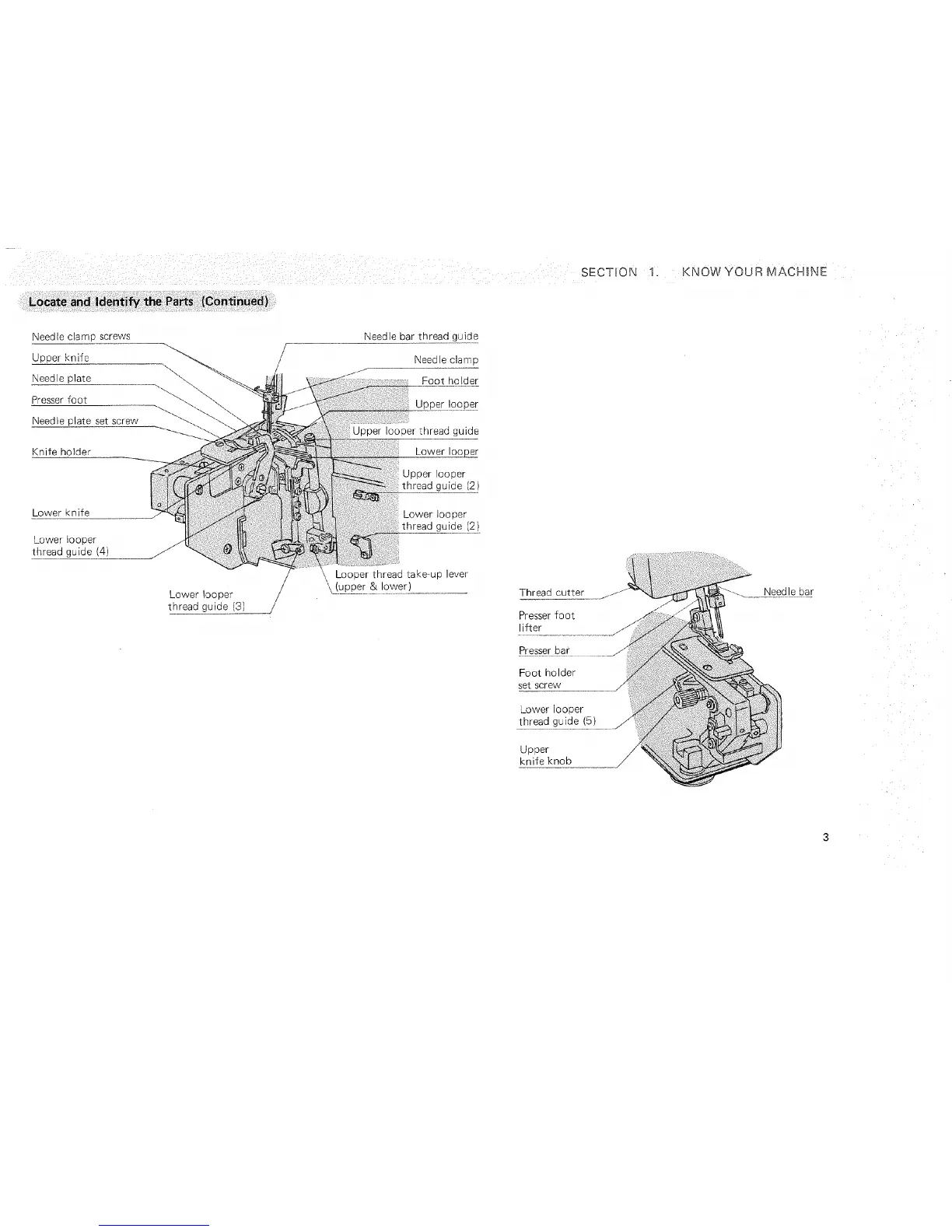

SECTION
1: KNOW YOUR MACHINE
Needle clamp screws
Upper knife
Needle plate
Presser foot "_-_.
Needle plate set screw
Knife holder
Lower knife
Lower looper
thread guide (4)
_f
Lower looper
thread guide (3)
/
Needle bar thread guide
Needle clamp
Foot holder
Upper looper
Upper looper thread guide
Lower Ioo_
Upper looper
thread guide (2)
Lower looper
thread guide /2)
Looper thread take-up lever
'\..!.u...P_2e_& l?wer) ....................
Thread cutter
Presser foot
lifter
Presser bar
Foot holder
set screw
Lower looper
thread guide (5)
Upper
knife knob
