Bottom Panels

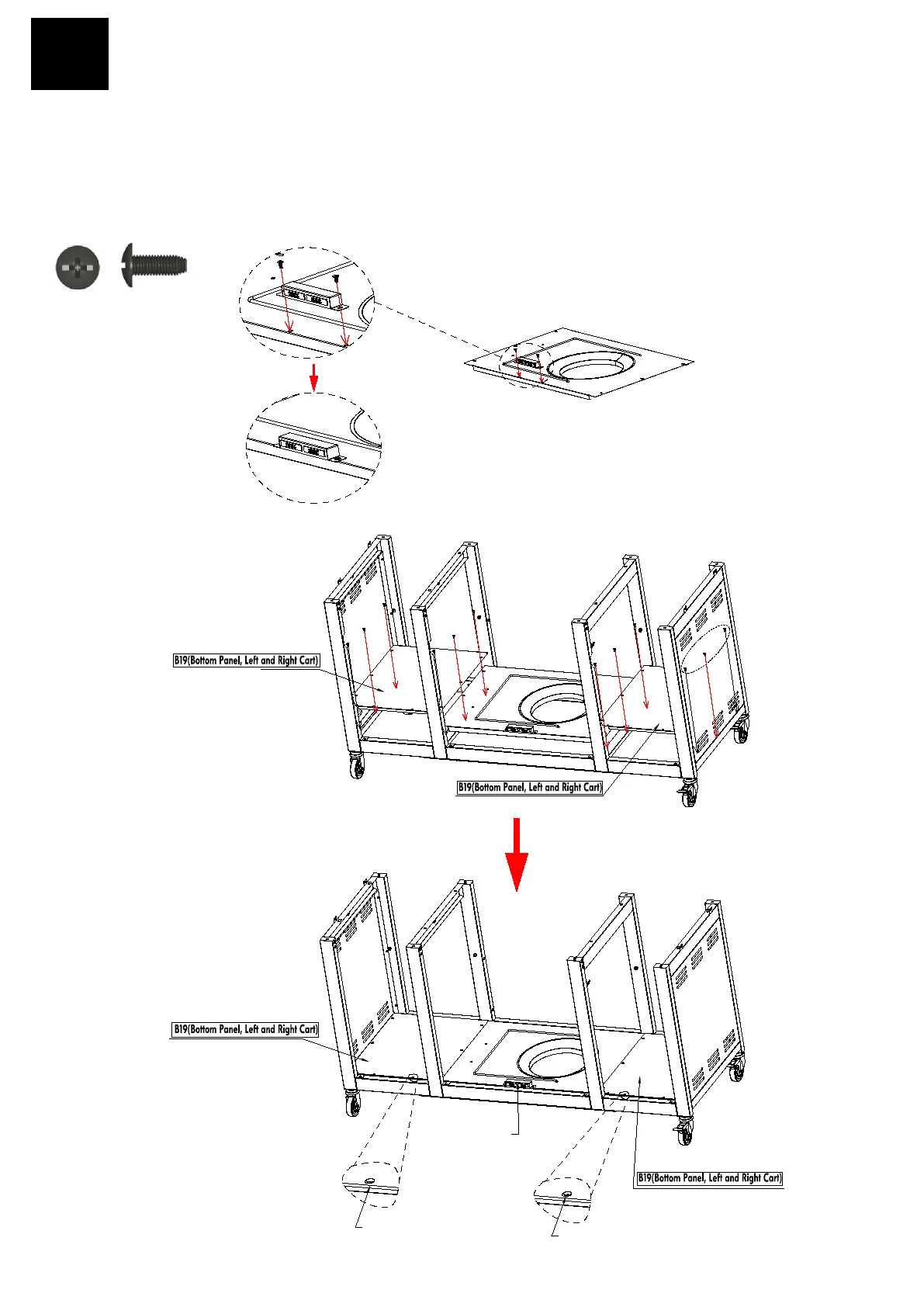

□ Used Pre-assembled (2) M4x10 Screws on the base to attach Door Magnets Box to the Middle Cart Bottom Panel as
shown. (A)
□ Lay the Middle Cart Bottom Panel onto the No.2 and No.3 Leg Frames. ( B)
□ Lay the B19(Bottom Panel, Left and Right Cart) onto the No.1 and No.2 Leg Frames. Lay the B19(Bottom Panel, Left and Right
Cart) onto the No.4 and No.3 Leg Frames. The right edge of the Left Panel and the left edge of the Right Panel will overlay
the left and right edges of the Middle Cart Bottom Panel respectively.(B)
□ Use (12) M4x10 Screws to attach panel edges securely to the Leg Frames as shown. (B)
21
Flanging Hole Side Face Front
Flanging Hole Side Face Front
Magnet Box Side Face Front
To Next Page
