Kenmore PG-40407S0LF-1 - Grill Body and Component Installation

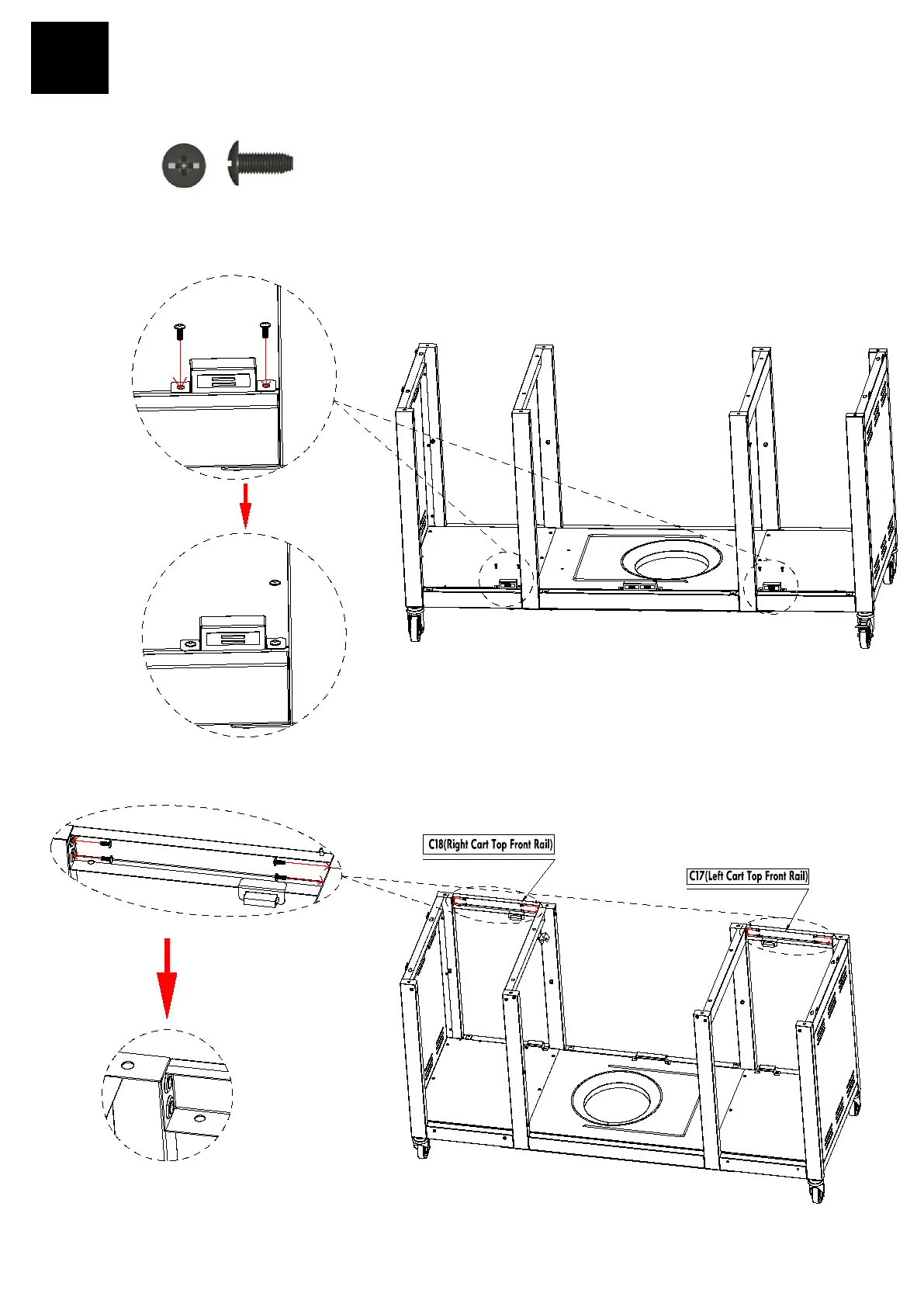

Side Door Magnets, Top Front Rails to Leg Frames
□ Used (4) M4x10 Screws to attach Side Cabinet Door Magnet to Bottom Panel, Left and Right Cart as shown.(A)
□ Used (4) M4x10 Screws to attach C18(Right Cart Top Front Rail)to the No.3 and No.4 Leg Frames as shown.(B)
□ Used (4) M4x10 Screws to attach C17(Left Cart Top Front Rail) to the No.1 and No. 2 Leg Frames as shown.(B)
22
5
M4X10 Screw Qty: 12 pcs
A
B
