Kenmore PG-40407S0LF-1 - Page 23

Door Rail, Left and Right Cart Middle Panels

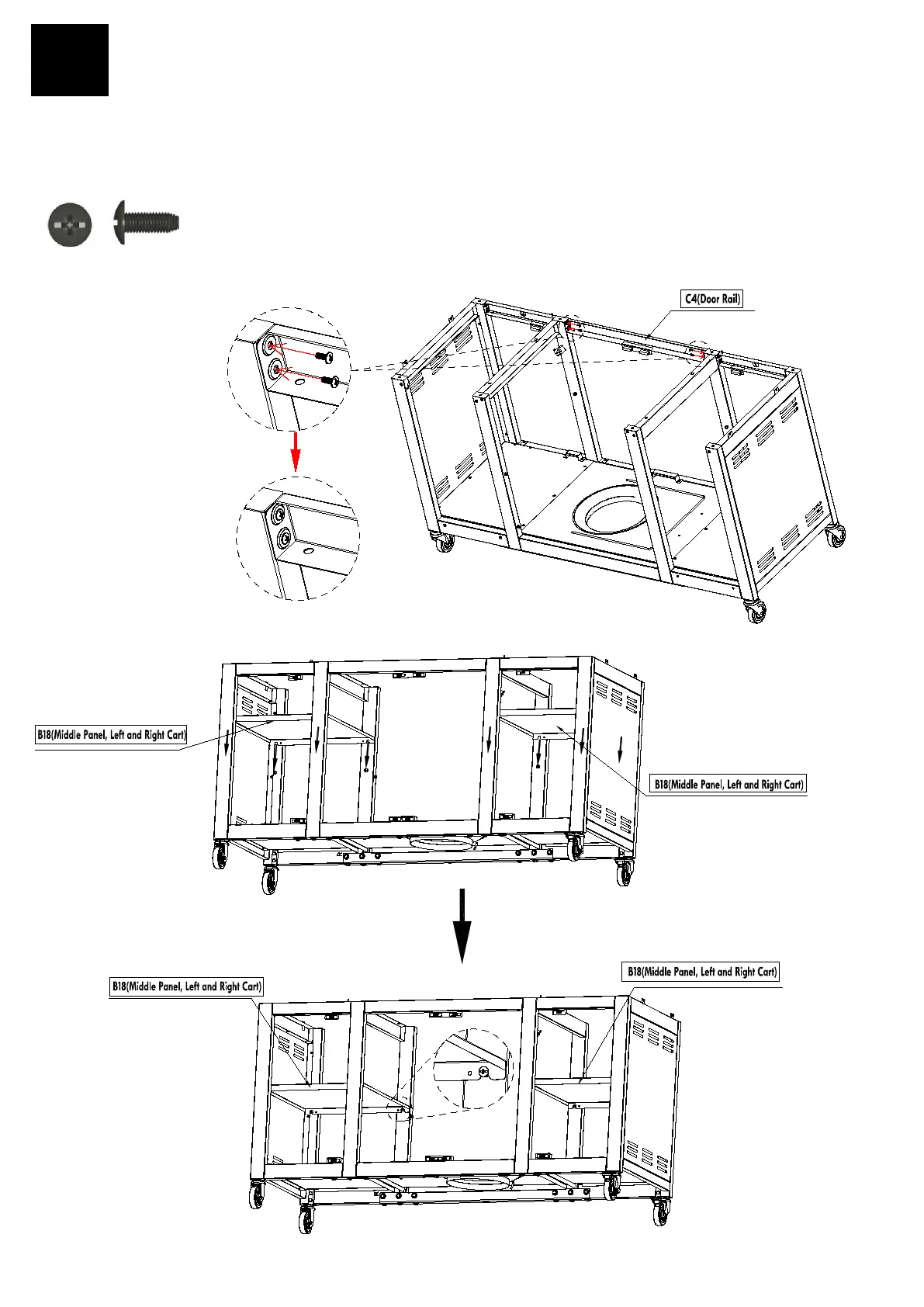

□ Used (4) M4x10 Screws to attach the C4(Door Rail) to the top of the No.2 Leg Frame and No.3 Leg Frame as shown.(A)
□ Place B18(Middle Panel, Left and Right Cart and B18(Middle Panel, Left and Right Cart) onto pre-install M4 Screws as
shown.(B)
NOTE: DO NOT fully tighten down the screws. The panels will fit securely without further screw tightening. Fully tightening the
screws may cause the panels to become tilted or possibly fall down.
23
6
M4X10 Screw Qty: 4 pcs
A
B
