Key
Description
Qty
Part Number
D16
Lid handle
1
61200011
D17
Logo
1
407F10106
D18
Warming Rack
1
60200120
D19
Rear Panel, Rotisserie Burner
1
60200121
D20
Thermocouple Cover
1
50600028
D21
Double Igniter Wire, Rotisserie Burner
1
50600224
D22
Rotisserie Burner
1
50600080
D23
Cooking Grate
3
60200033
E01
Firebox Back Panel
1
60200031
E02
FireBox
1
60200003
E03
Cotter Pin
10
110380
E04
Main Burner
6
60200126
E05
Main Burner Electrode L720
1
40500207
E06
Main Burner Electrode L880
1
40500208
E07
Main Burner Electrode L560
2
40500206
E08
Main Burner Electrode L400
2
40500205
E09
Grease Tray
1
60200042
E10
Heat Diffuser
6
60200122
E11
Pulse Control Line
1
60200123
13

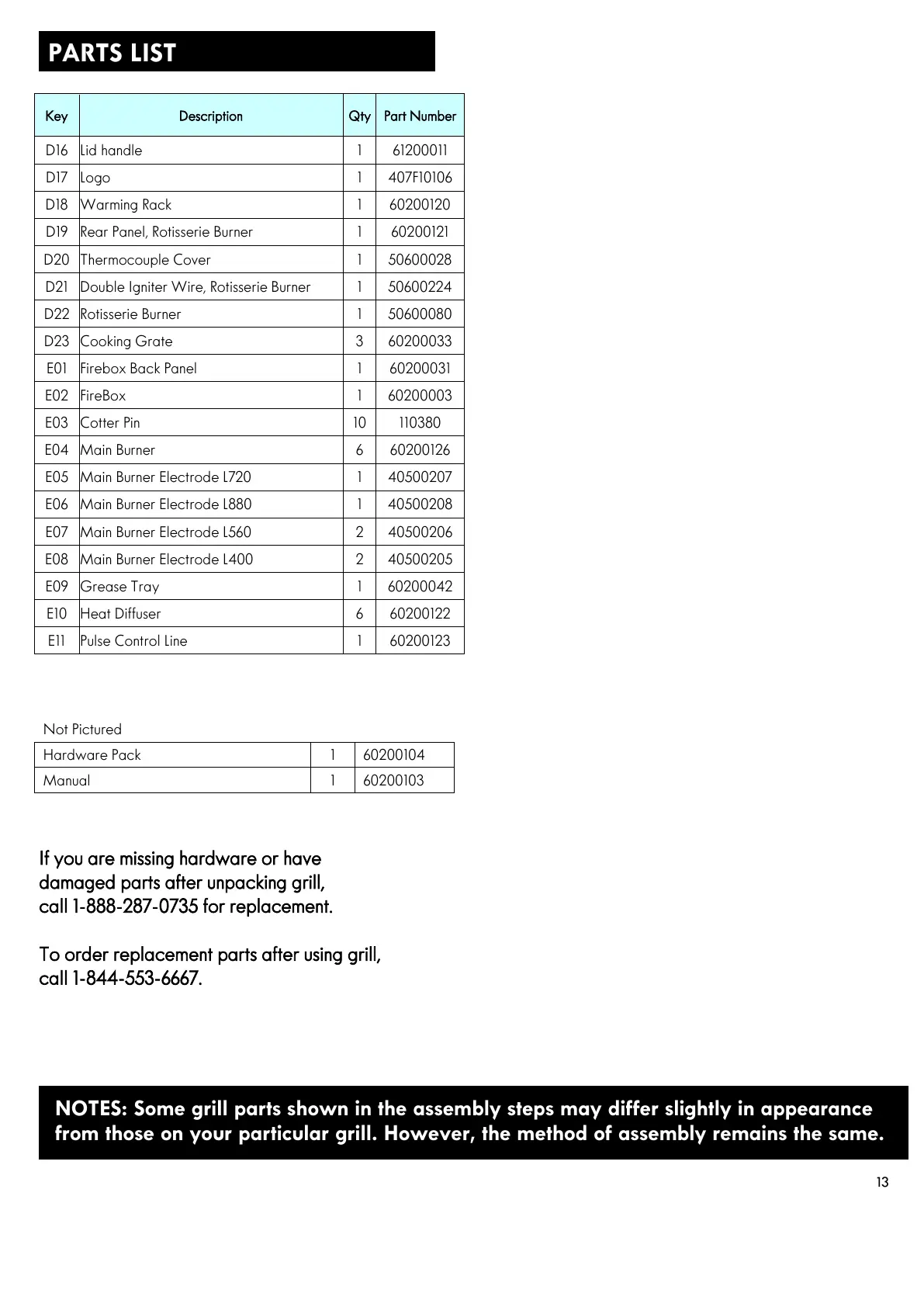

PARTS LIST
Not Pictured
Hardware Pack
1
60200104
Manual
1
60200103
NOTES: Some grill parts shown in the assembly steps may differ slightly in appearance
from those on your particular grill. However, the method of assembly remains the same.
If you are missing hardware or have
damaged parts after unpacking grill,
call 1-888-287-0735 for replacement.
To order replacement parts after using grill,
call 1-844-553-6667.
