Kenmore PG-40602SRL - Parts List

12

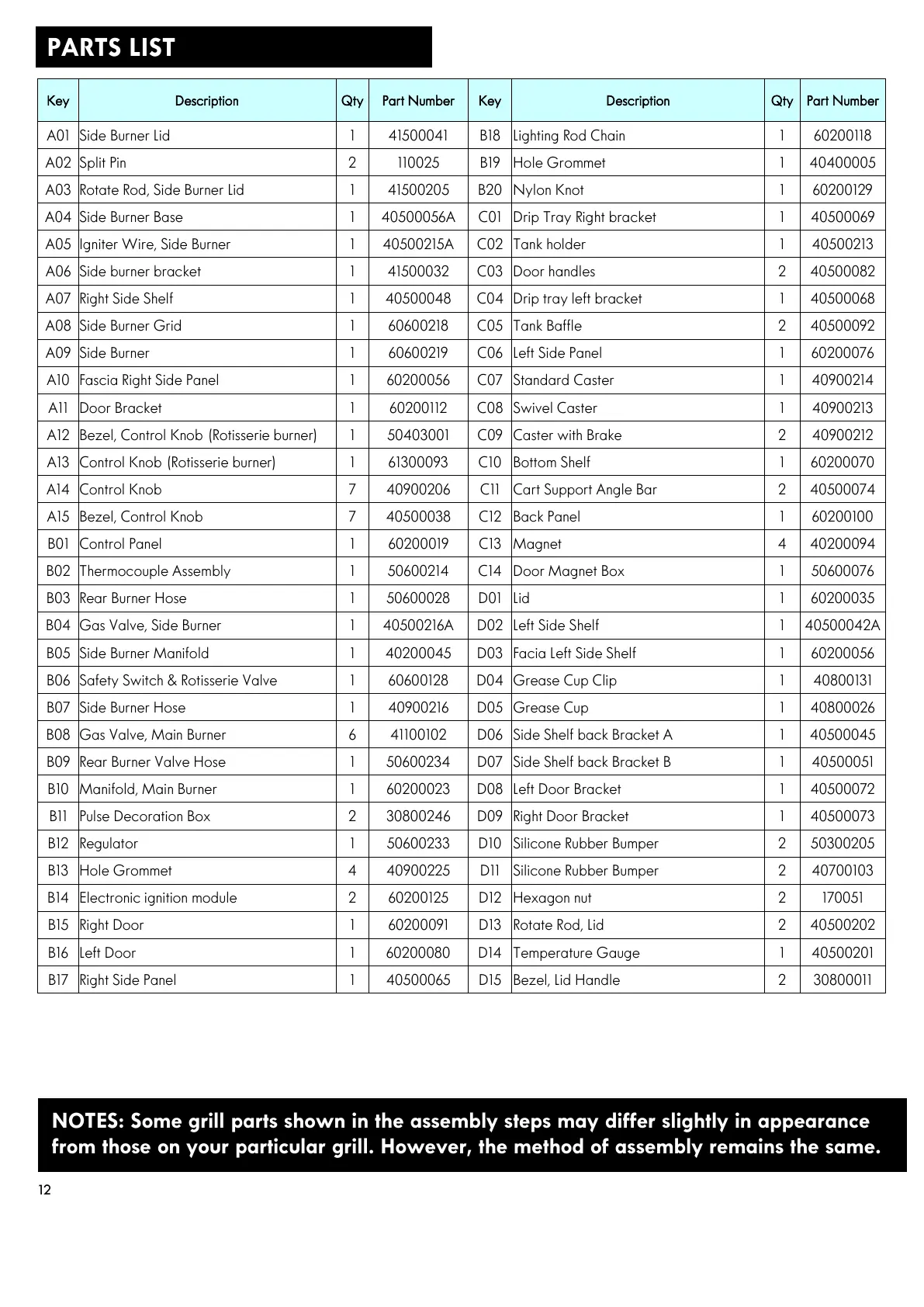

PARTS LIST
Key
Description
Qty
Part Number
Key
Description
Qty
Part Number
A01
Side Burner Lid
1
41500041
B18
Lighting Rod Chain
1
60200118
A02
Split Pin
2
110025
B19
Hole Grommet
1
40400005
A03
Rotate Rod, Side Burner Lid
1
41500205
B20
Nylon Knot
1
60200129
A04
Side Burner Base
1
40500056A
C01
Drip Tray Right bracket
1
40500069
A05
Igniter Wire, Side Burner
1
40500215A
C02
Tank holder
1
40500213
A06
Side burner bracket
1
41500032
C03
Door handles
2
40500082
A07
Right Side Shelf
1
40500048
C04
Drip tray left bracket
1
40500068
A08
Side Burner Grid
1
60600218
C05
Tank Baffle
2
40500092
A09
Side Burner
1
60600219
C06
Left Side Panel
1
60200076
A10
Fascia Right Side Panel
1
60200056
C07
Standard Caster
1
40900214
A11
Door Bracket
1
60200112
C08
Swivel Caster
1
40900213
A12
Bezel, Control Knob (Rotisserie burner)
1
50403001
C09
Caster with Brake
2
40900212
A13
Control Knob (Rotisserie burner)
1
61300093
C10
Bottom Shelf
1
60200070
A14
Control Knob
7
40900206
C11
Cart Support Angle Bar
2
40500074
A15
Bezel, Control Knob
7
40500038
C12
Back Panel
1
60200100
B01
Control Panel
1
60200019
C13
Magnet
4
40200094
B02
Thermocouple Assembly
1
50600214
C14
Door Magnet Box
1
50600076
B03
Rear Burner Hose
1
50600028
D01
Lid
1
60200035
B04
Gas Valve, Side Burner
1
40500216A
D02
Left Side Shelf
1
40500042A
B05
Side Burner Manifold
1
40200045
D03
Facia Left Side Shelf
1
60200056
B06
Safety Switch & Rotisserie Valve
1
60600128
D04
Grease Cup Clip
1
40800131
B07
Side Burner Hose
1
40900216
D05
Grease Cup
1
40800026
B08
Gas Valve, Main Burner
6
41100102
D06
Side Shelf back Bracket A
1
40500045
B09
Rear Burner Valve Hose
1
50600234
D07
Side Shelf back Bracket B
1
40500051
B10
Manifold, Main Burner
1
60200023
D08
Left Door Bracket
1
40500072
B11
Pulse Decoration Box
2
30800246
D09
Right Door Bracket
1
40500073
B12
Regulator
1
50600233
D10
Silicone Rubber Bumper
2
50300205
B13
Hole Grommet
4
40900225
D11
Silicone Rubber Bumper
2
40700103
B14
Electronic ignition module
2
60200125
D12
Hexagon nut
2
170051
B15
Right Door
1
60200091
D13
Rotate Rod, Lid
2
40500202
B16
Left Door
1
60200080
D14
Temperature Gauge
1
40500201
B17
Right Side Panel
1
40500065
D15
Bezel, Lid Handle
2
30800011
NOTES: Some grill parts shown in the assembly steps may differ slightly in appearance
from those on your particular grill. However, the method of assembly remains the same.
