Kenmore PG-40602SRL - Page 20

Swivel Caster
Standard Caster
Caster with Brake
Caster with Brake
19
1

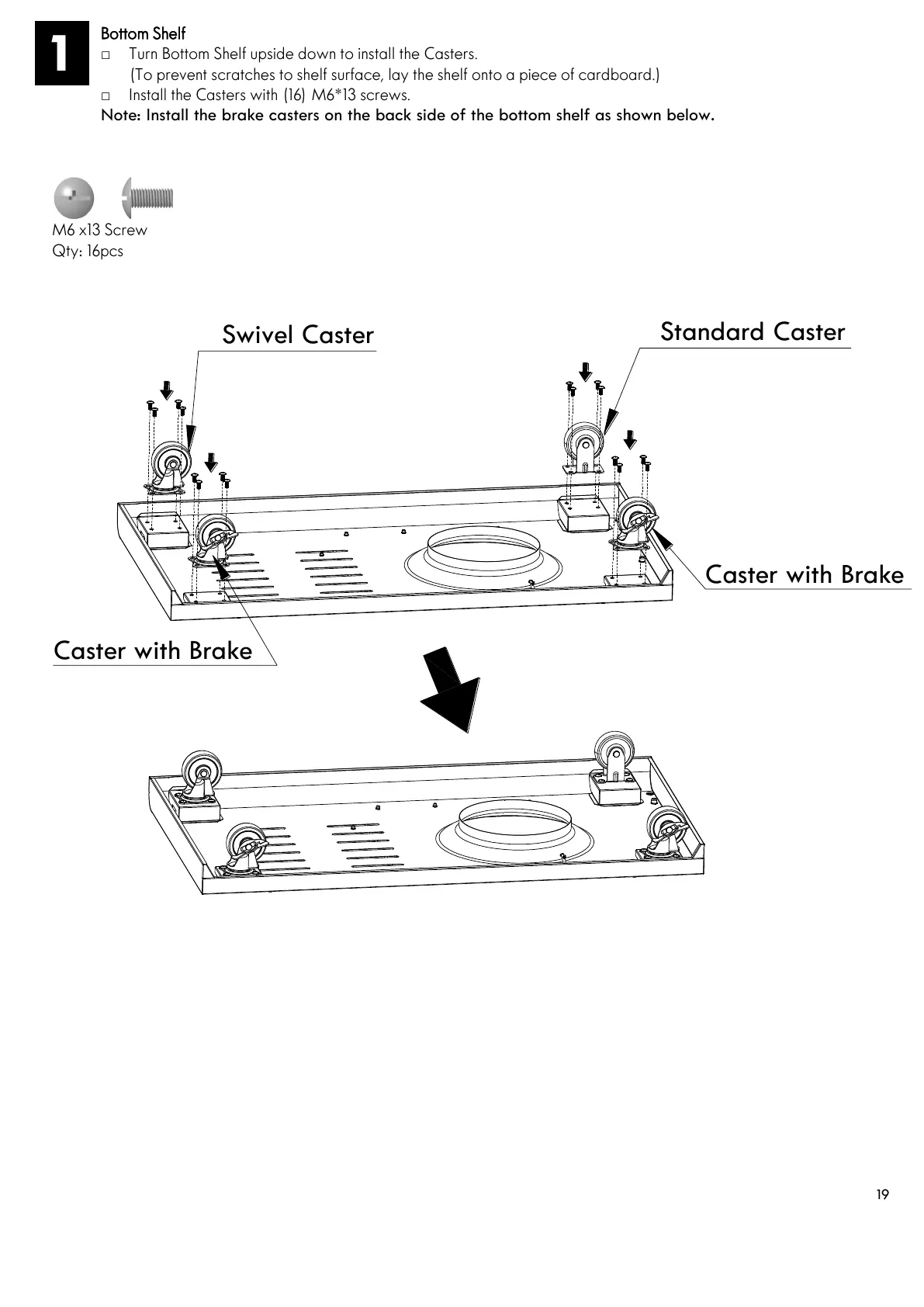

Bottom Shelf
□ Turn Bottom Shelf upside down to install the Casters.
(To prevent scratches to shelf surface, lay the shelf onto a piece of cardboard.)
□ Install the Casters with (16) M6*13 screws.
Note: Install the brake casters on the back side of the bottom shelf as shown below.
M6 x13 Screw
Qty: 16pcs
