Kenmore PG-40602SRL - Page 29

28
Step 1
Step 2
Step 2
Step 4
Step 3
9

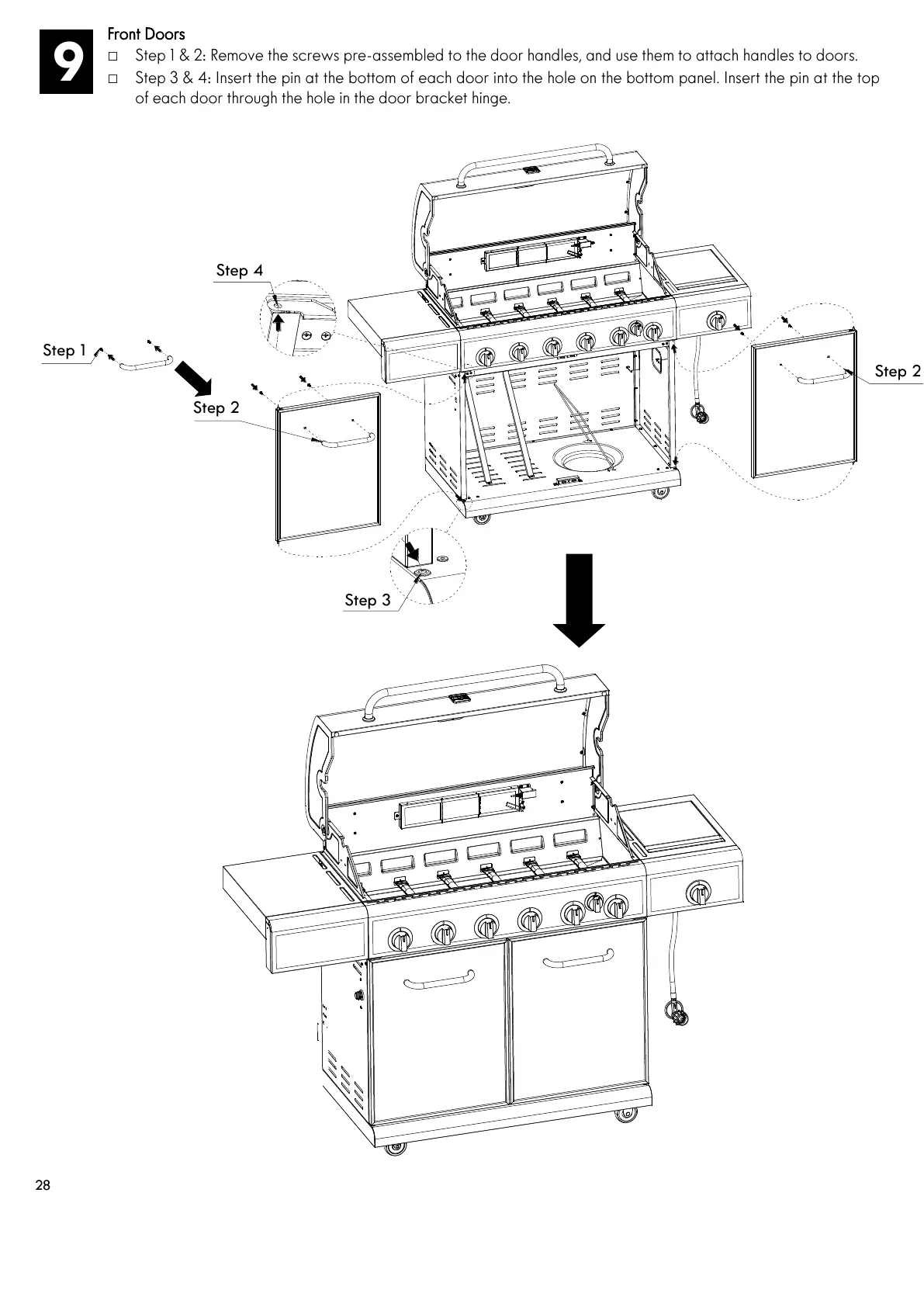

Front Doors
□ Step 1 & 2: Remove the screws pre-assembled to the door handles, and use them to attach handles to doors.
□ Step 3 & 4: Insert the pin at the bottom of each door into the hole on the bottom panel. Insert the pin at the top
of each door through the hole in the door bracket hinge.
