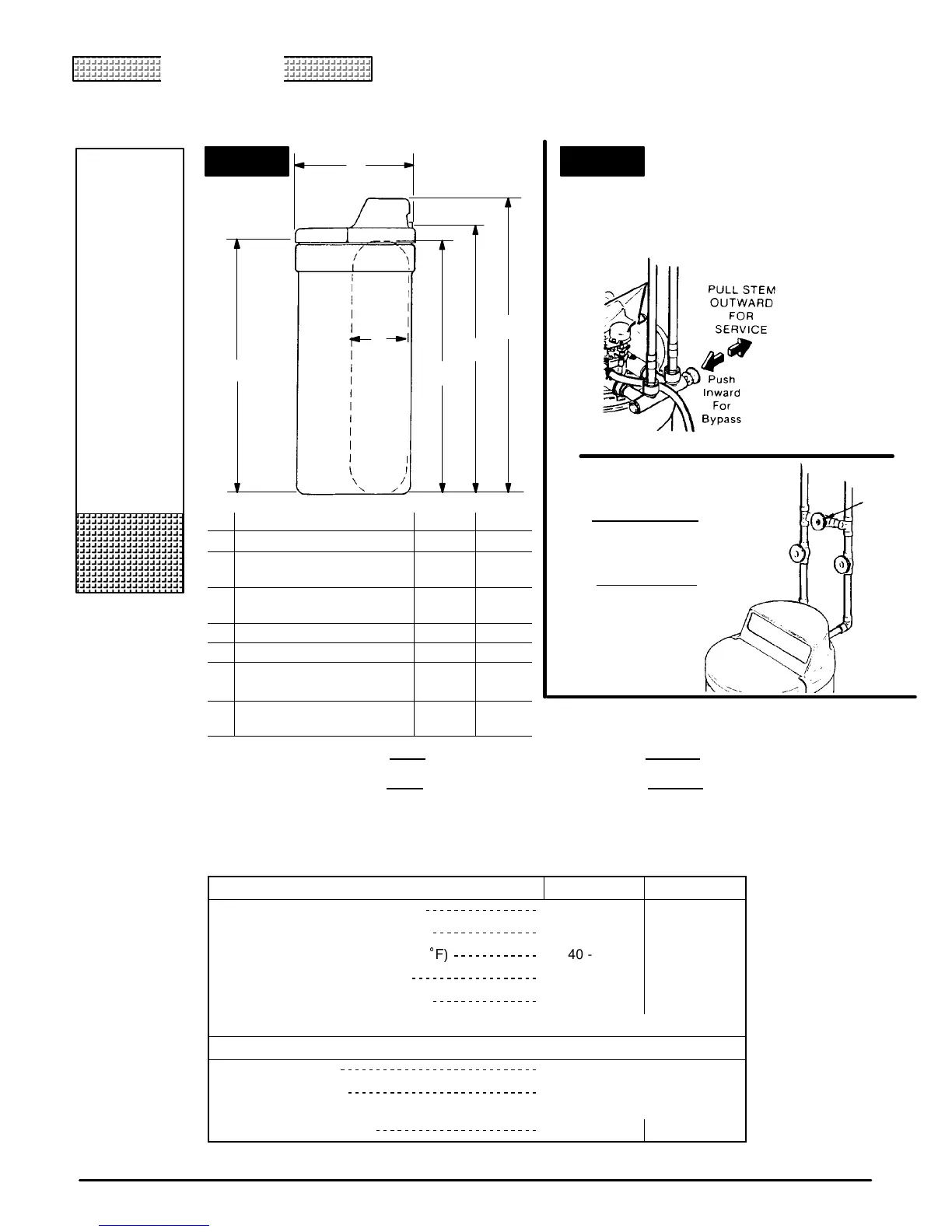

Kenmore UltraSoft 100 User Manual

Bypass
Valve
Inlet
Valve
Outlet
Valve
A
B
C
D
E
F
FOR SERVICE
close bypass valve
open inlet & outlet valves
FOR BYPASS
open bypass valve
close inlet & outlet valves
%\SDVV YDOYHV VKRXOG DOZD\V UHPDLQ LQ VRIW
ZDWHU VHUYLFH SRVLWLRQ 3RVLWLRQ LQ ´E\SDVVµ RQO\
LI QHHGHG IRU VRIWHQHU UHSDLUV
FIG. 14FIG. 13
%<3$66 9$/9(6
3 - VALVE BYPASS
SINGLE BYPASS
KNOW ABOUT YOUR WATER SOFTENER
SECTION 4

3UREOHPV 4XHVWLRQV" &DOO     .HQPRUH :DWHU /LQH
A. DIMENSIONS / SPECIFICATIONS
Inches CM
A Salt Tank Height 40-1/4 102.2
B Resin Tank Diameter
(nominal)
8 20.3
C Resin Tank Height
(nominal)
40 101.6
D Inlet-Outlet Height 41-1/2 105.4
E Overall Height 46 116.8
F
1
Length 19-1/2 49.5
F
2
Width 16-1/2 41.9
— Distance between inlet-
outlet center lines
3-3/8 8.6
ULTRASOFT 100 TIMERSRCODESR22
ULTRASOFT 150 TIMERSRCODESR24
1RWH 3OHDVH VHH WKH UDWLQJ GHFDO IRU RSHUDWLQJ FDSDFLW\ VDOW XVDJH DQG VHUYLFH IORZ UDWHSUHVVXUH ORVV
SHUIRUPDQFH VSHFLILFDWLRQV 3HUIRUPDQFH VSHFLILFDWLRQV DUH YDOLGDWHG E\ WKH :DWHU 4XDOLW\ $VVRFLDWLRQ
:4$ 7KH UDWLQJ GHFDO LV ORFDWHG RQ WKH ULP XQGHU WKH VDOW KROH FRYHU VHH SDJH $ LQVLGH IURQW FRYHU
WATER SUPPLY TO WATER SOFTENER UltraSoft 100 UltraSoft 150
Minimum water system flow (gpm) 3 3
Minimum-Max. water pressure (psi) 20 - 125 20 - 125
Minimum-Max. water temperature ( ) 40 - 120 40 - 120
Maximum water hardness (gpg) 95 95
Maximum ‘‘clear water’’ iron (ppm) 45
SALT FOR WATER SOFTENER
Type of salt needed nugget or pellet
Alternate type of salt pure, evaporated, compacted
water softener salt
Salt storage capacity (lbs) 200 200
S
E
C
T
I
O
N
4

Kenmore UltraSoft 100 Specifications
