Kenner KND800 - Wiring Connections for Accessories; Push Button and Exit Wand Wiring; Battery and Receiver Wiring; Wired Keypad Wiring

11
terminal to the “12” terminal.

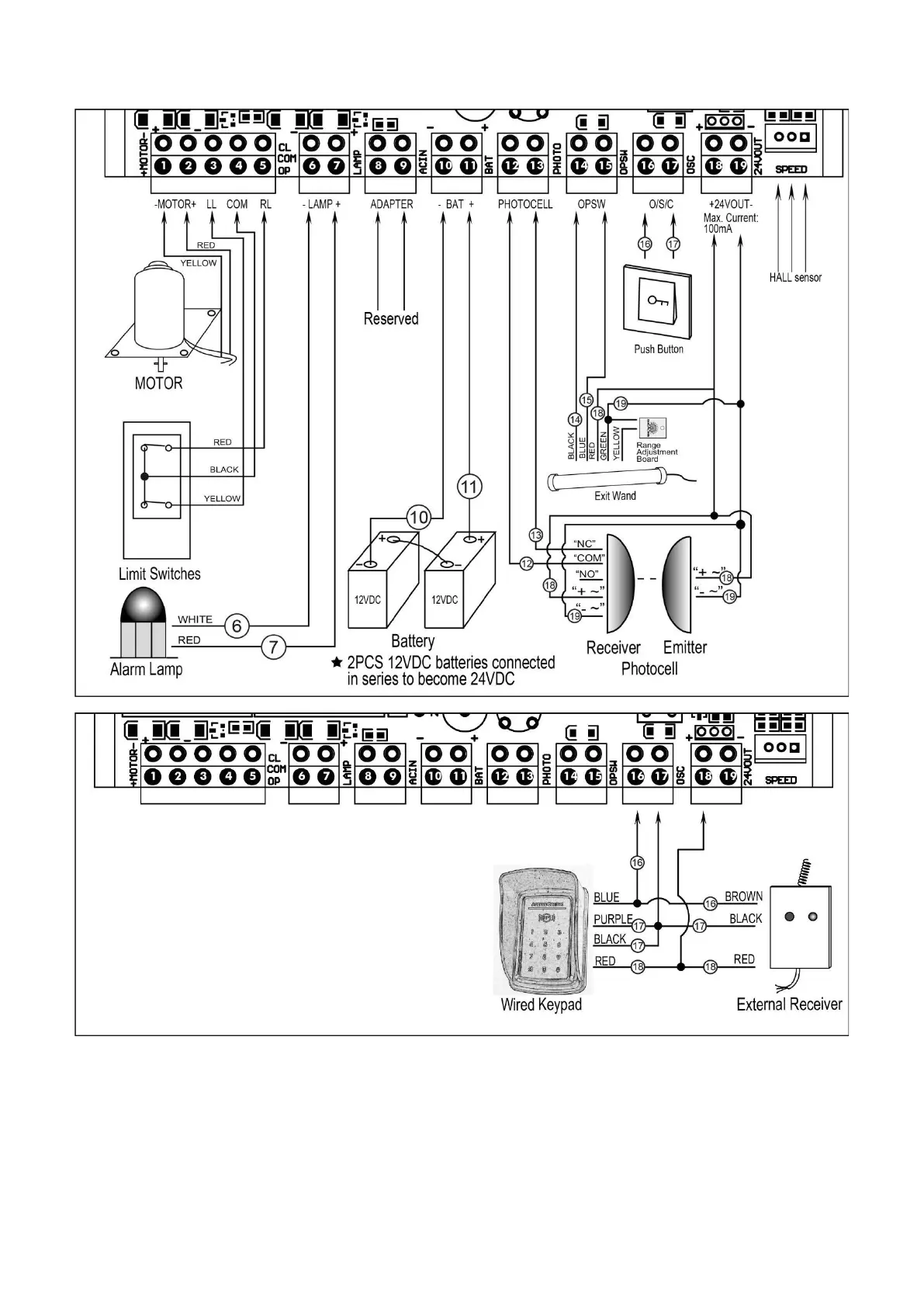

5. Push Button
The push button should be wired to the “16 and “17” terminals. The polarity does not matter. If the button is
pressed repeatedly, the opener will work in the following sequence (open-stop-close-stop-open).
6. Exit Wand (optional)
The BLACK wire of the exit wand should be connected to the “14” terminal.
