Testing the reversing sensitivity
For the sake of safety, it is very important to test the reversing sensitivity as soon as the control board set is
finished.
The reversing sensitivity adjustment is inversely correlated with the stall force adjustment in potentiometer A
and B. In other words, the stall force level is higher when the reversing sensitivity level is lower.
Put an immobile object along the gate path, and then operate the gate to strike it during the close cycles. The
gate must reverse as soon as it hits the object. If the gate doesn’t reverse, please increase the reversing
sensitivity by turning the potentiometer in counter-clockwise direction. (Turning the stall force potentiometer
toward MIN position to increase the reversing sensitivity)
Note 1: If the sensitivity setting is too high, the gate will stop or reverses very easily by itself while
there is little obstruction or resistance such as strong wind or heavy snow.
Note 2: Always check the gate reversing function each time the control board is set or when restarting
after power off.

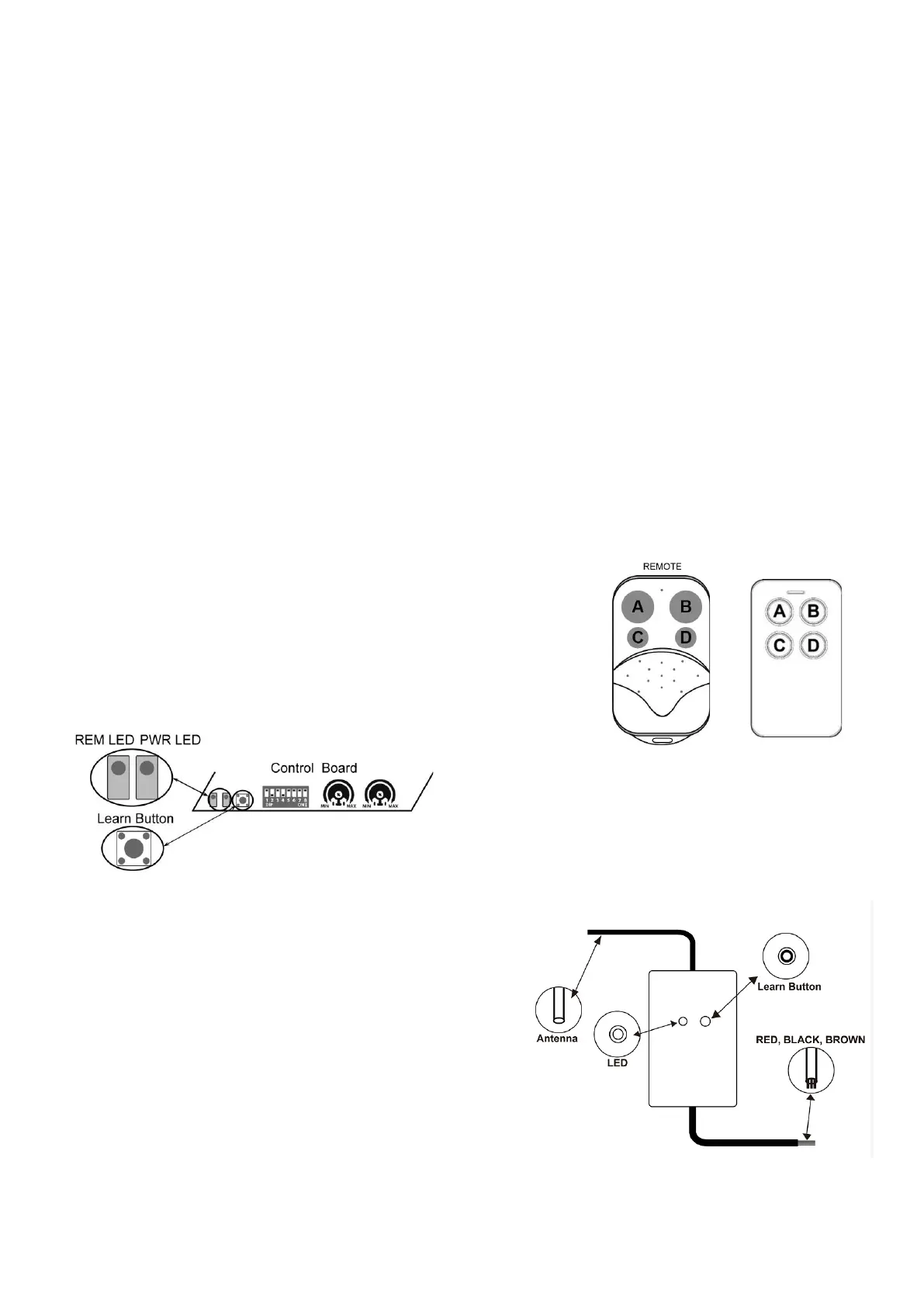

Pairing or clearing remote controls
Pairing Remote Controls
While the power is on, and the motor cover is removed, press the ‘LEARN’
button on the control board, until the ‘REM’ LED turns on, then release
the button. While the LED is on, press the first button on the remote
control twice in 2 seconds, the LED will flash repeatedly and then turn off
when remote control is paired. Up to 10 remote controls can be paired.
Pairing Remote Controls with the External receiver
Currently, an external receiver is provided with the opener to
avoid signal interference from the nearby environment. It is
strongly recommended that you pair all remotes and
wireless devices to the opener through this external
receiver.
While the power is on, and the motor cover is removed, press
the ‘LEARN’ button on the external receiver, until the ‘REM’
LED turns on, then release the button. While the LED is on,
press the first button on the remote control twice in 2 seconds,
the LED will flash repeatedly and then turn off when remote control is paired. Up to 200 remote controls can
be paired.
