Kenwood BASIC M1 Current Source Modification
www.drmaudtioht.com
10/9/2008 6:56 PM page 7 of 10

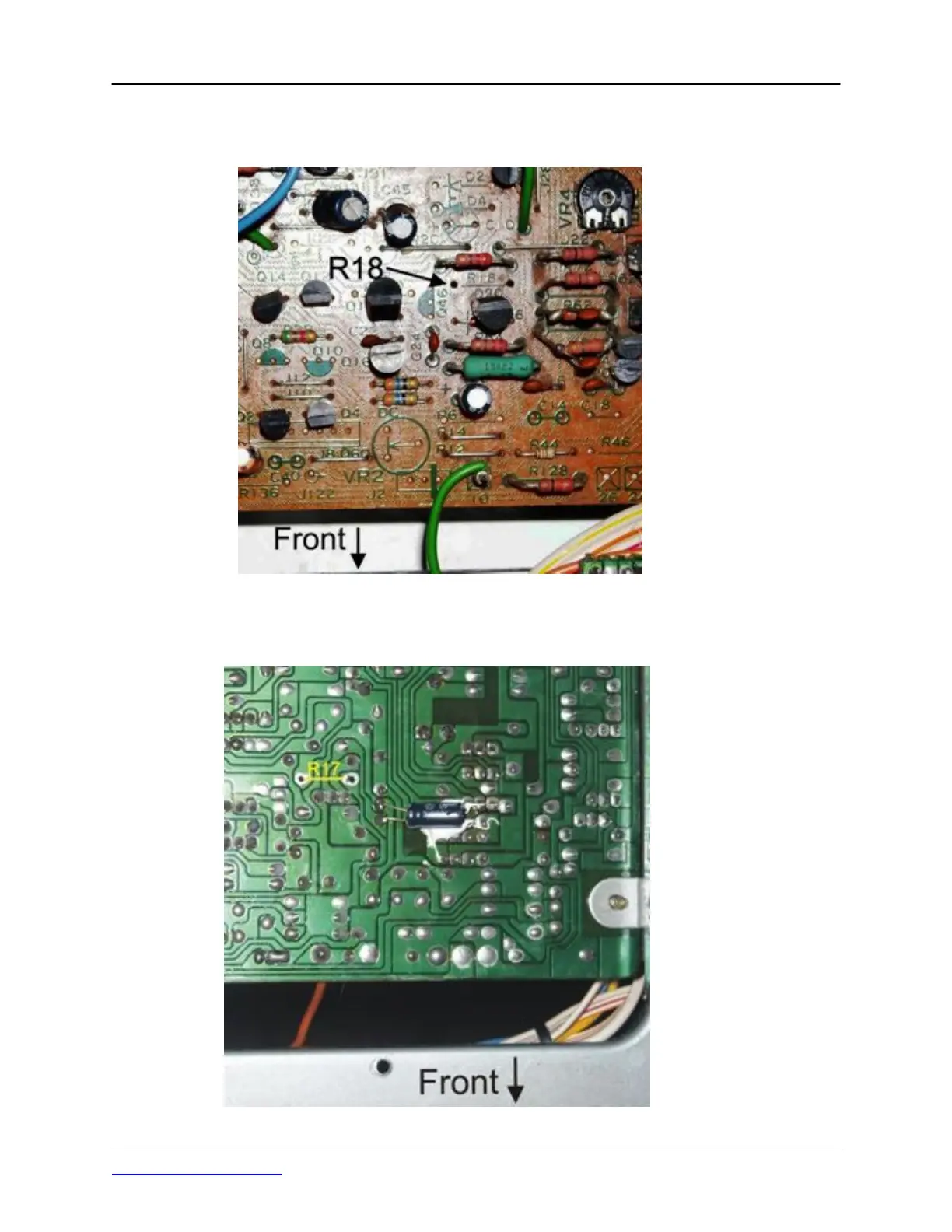

This photo shows the top side of the amplifier pc board assembly with the original current source resistor
R18 removed:
This photo shows the bottom side of the amplifier pc board assembly with the original current source
resistor R17 removed:
