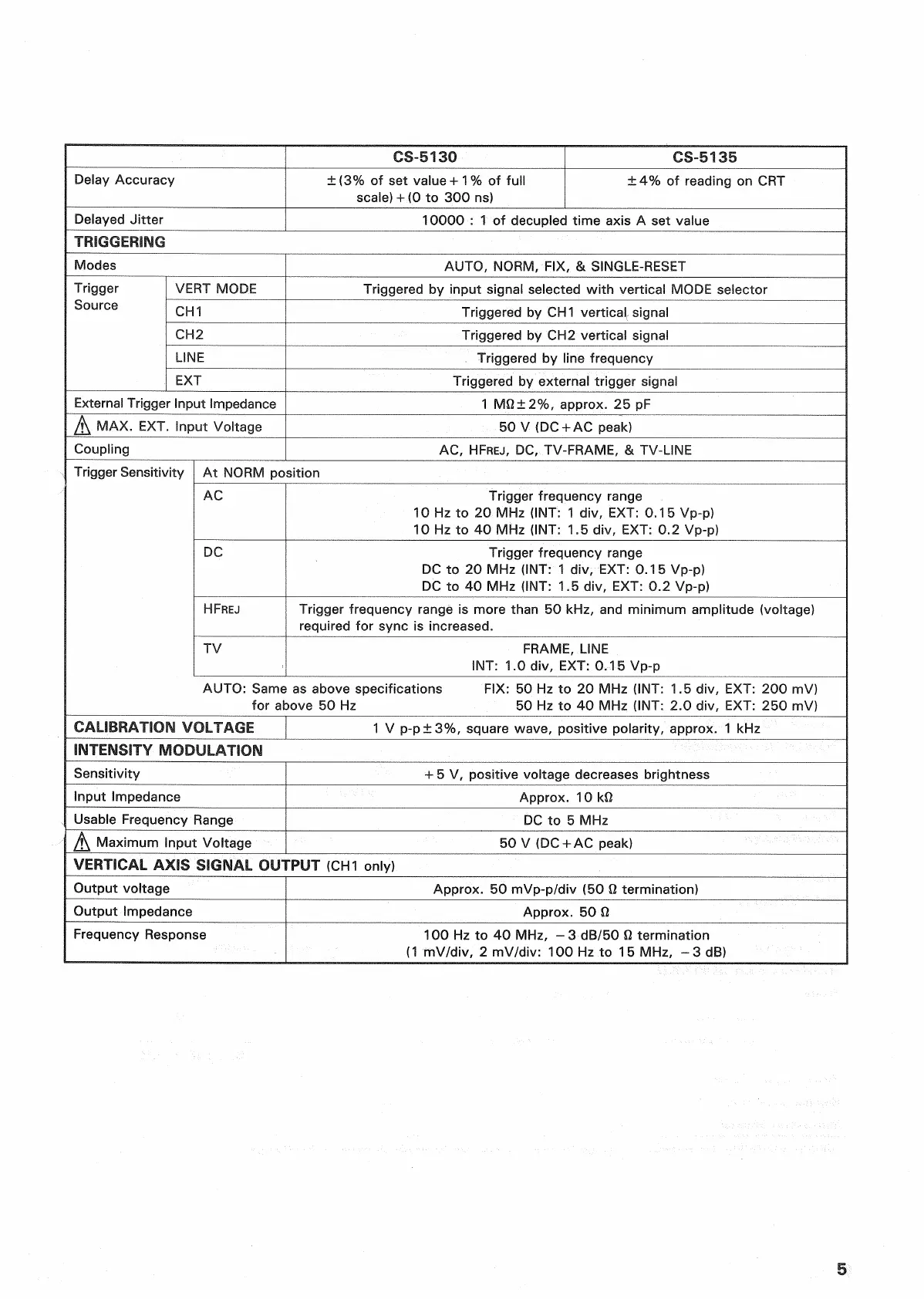

CS-5130
CS-5135
Delay
Accuracy
± (3% of set value +
1
% of
full
scale)
+ (0 to 300 ns)
± 4% of reading on CRT
Delayed
Jitter
10000
: 1 of decupled
time
axis
A set value
TRIGGERING
Modes
AUTO,
NORM, FIX, &
SINGLE-RESET
Trigger
Source
VERT
MODE
Triggered by
input
signal selected
with
vertical MODE selector
Trigger
Source
CH1
Triggered by CH1 vertical signal
Trigger
Source
CH2
Triggered by CH2 vertical signal
Trigger
Source
LINE
Triggered by line frequency
Trigger
Source
EXT
Triggered by external
trigger
signal
External
Trigger
Input
Impedance
1
MO ±2%, approx. 25 pF
^ MAX. EXT.
Input
Voltage
50
V (DC + AC peak)
Coupling
AC,
HFREJ,
DC,
TV-FRAME,
&
TV-LINE
Trigger Sensitivity
At NORM
position
Trigger Sensitivity
AC
Trigger frequency range
10
Hz to 20 MHz (INT: 1 div,
EXT:
0.1 5 Vp-p)
10
Hz to 40 MHz (INT: 1.5 div,
EXT:
0.2 Vp-p)
Trigger Sensitivity
DC
Trigger frequency range
DC
to 20 MHz (INT: 1 div,
EXT:
0.15 Vp-p)
DC
to 40 MHz (INT: 1.5 div,
EXT:
0.2 Vp-p)
Trigger Sensitivity
HFREJ
Trigger frequency range is more than 50 kHz, and minimum amplitude (voltage)
required for sync is increased.
Trigger Sensitivity
TV
FRAME,
LINE
INT:
1.0 div,
EXT:
0.15 Vp-p
AUTO:
Same as above specifications FIX: 50 Hz to 20 MHz (INT: 1.5 div, EXT: 200 mV)
for above 50 Hz 50 Hz to 40 MHz (INT: 2.0 div, EXT: 250 mV)
CALIBRATION
VOLTAGE
1
V p-p±3%, square wave, positive polarity, approx. 1 kHz
INTENSITY
MODULATION
Sensitivity
+
5 V, positive voltage decreases brightness
Input
Impedance
Approx. 10 kfi
Usable
Frequency Range
DC
to 5 MHz
Maximum
Input
Voltage
50
V (DC + AC peak)
VERTICAL
AXIS SIGNAL OUTPUT (CH1 only)
Output
voltage
Approx. 50 mVp-p/div (50 0 termination)
Output
Impedance
Approx. 50 Q
Frequency
Response
100
Hz to 40 MHz, -3 dB/50 0
termination
(1
mV/div, 2 mV/div: 100 Hz to 15 MHz, -3 dB)
5
