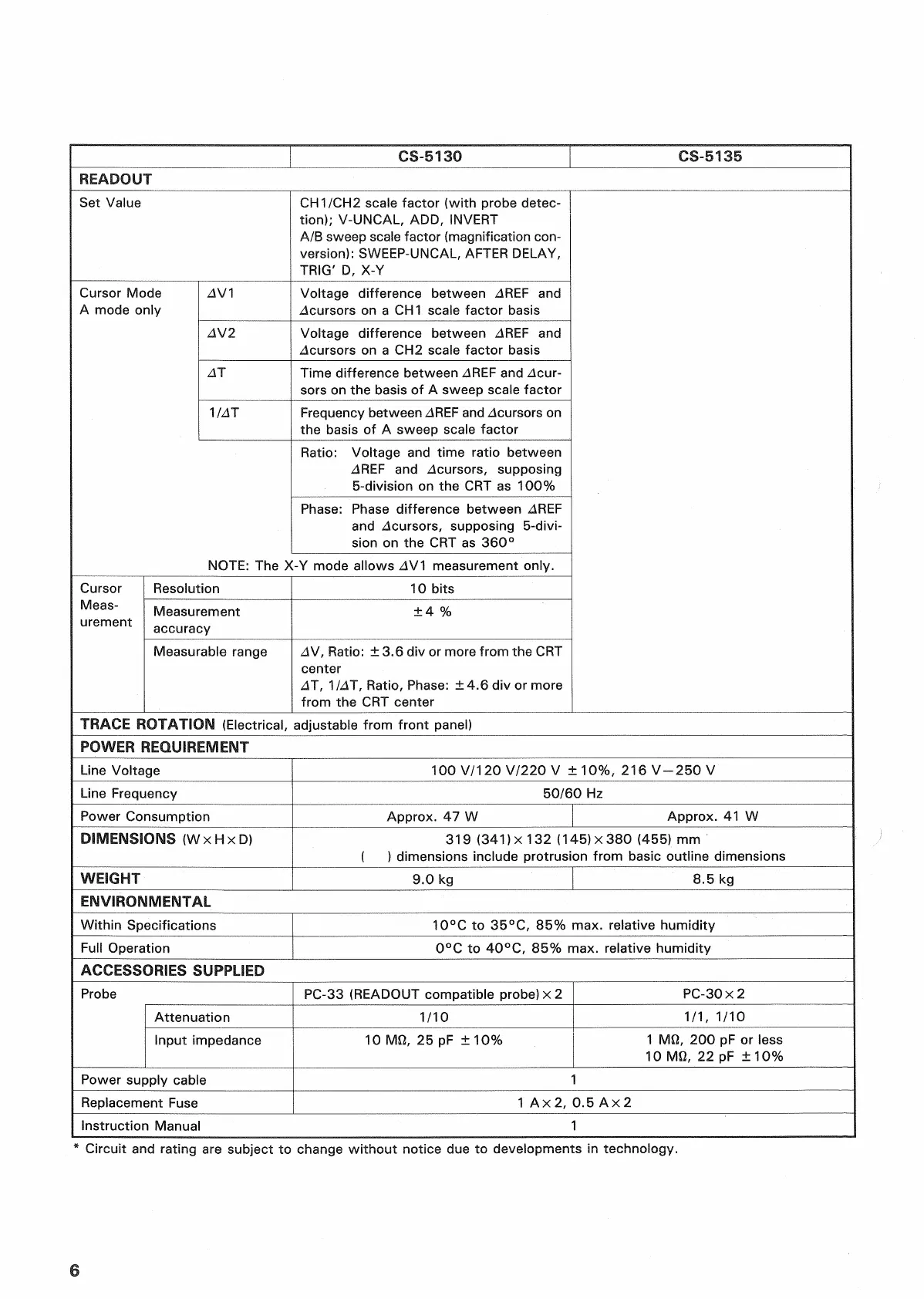

CS-5130
CS-5135
READOUT
Set
Value
CH1/CH2
scale
factor (with probe detec-
tion);
V-UNCAL,
ADD,
INVERT
A/B
sweep
scale
factor (magnification con-
version):
SWEEP-UNCAL,
AFTER
DELAY,
TRIG'
D, X-Y
Cursor
Mode
A
mode only
AV^
Voltage difference between
ZiREF
and
zlcursors
on a CH1
scale
factor
basis
Cursor
Mode
A
mode only
A\I2
Voltage difference between
ziREF
and
zicursors
on a CH2
scale
factor
basis
Cursor
Mode
A
mode only
AT
Time
difference between
zlREF
and zicur-
sors
on the
basis
of A sweep
scale
factor
Cursor
Mode
A
mode only
1/AT
Frequency
between
AREF
and zlcursors on
the
basis
of A sweep
scale
factor
Ratio:
Voltage and time ratio between
AREF
and ^cursors, supposing
5-division on the CRT as 100%
Phase:
Phase
difference between
zlREF
and
^cursors, supposing 5-divi-
sion
on the CRT as 360°
NOTE:
The X-Y mode allows ZiV1 measurement only.
Cursor
Meas-
urement
Resolution
10
bits
Cursor
Meas-
urement
Measurement
accuracy
±4 %
Cursor
Meas-
urement
Measurable
range
AV, Ratio: ±3.6 div or more from the
CRT
center
AT, MAT, Ratio,
Phase:
±4.6 div or more
from the CRT center
TRACE
ROTATION
(Electrical,
adjustable from
front
panel)
POWER
REQUIREMENT
Line
Voltage
100
V/120 V/220 V ±10%, 216 V-250 V
Line
Frequency
50/60
Hz
Power
Consumption Approx. 47 W
Approx. 41 W
DIMENSIONS
(WxHxD)
319
(341) x 132 (145)x380 (455) mm
(
) dimensions include protrusion from
basic
outline dimensions
WEIGHT
9.0 kg
8.5
kg
ENVIRONMENTAL
Within Specifications 10°C to 35°C, 85% max. relative humidity
Full
Operation 0°C to 40°C, 85% max. relative humidity
ACCESSORIES
SUPPLIED
Probe
PC-33
(READOUT
compatible probe) x 2
PC-30x2
Attenuation 1/10
1/1,
1/10
Input impedance
10
MO, 25 pF ±10%
1
MO, 200 pF or
less
10
MO, 22 pF ± 10%
Power
supply cable
1
Replacement
Fuse
1
Ax 2, 0.5 Ax2
Instruction Manual 1
* Circuit and rating are subject to change
without
notice due to developments in technology.
