Kenwood CS-5170 User Manual

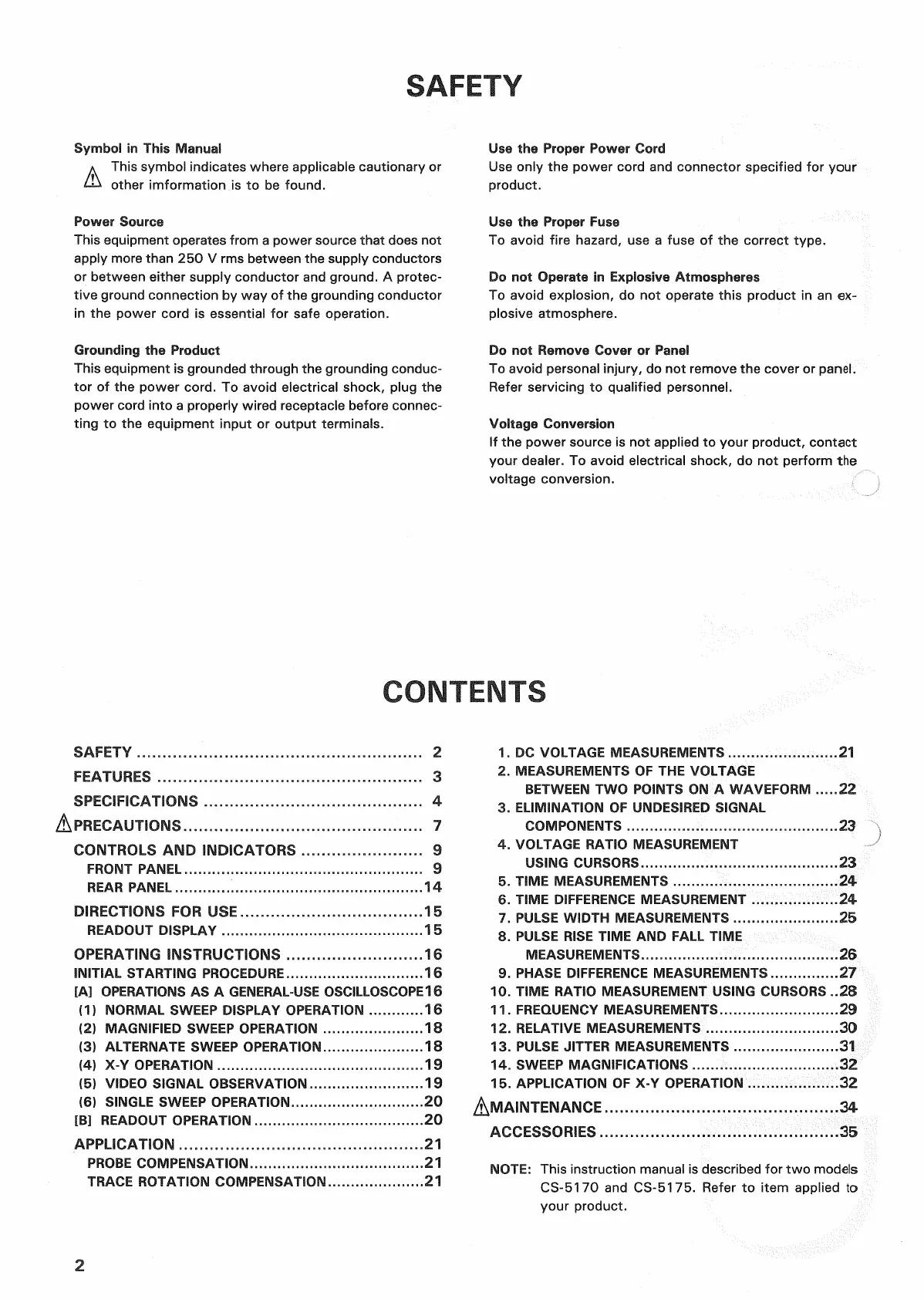

SAFETY
Symbol in This Manual
A
This symbol indicates where applicable cautionary or
other imformation is to be found.
Power Source
This equipment operates from a power source that does not
apply more than 250 V rms between the supply conductors
or between either supply conductor and ground. A protec-
tive ground connection by way of the grounding conductor
in the power cord is essential for safe operation.
Grounding the Product
This equipment is grounded through the grounding conduc-
tor of the power cord. To avoid electrical shock, plug the
power cord into a properly wired receptacle before connec-
ting to the equipment input or output terminals.
Use the Proper Power Cord
Use only the power cord and connector specified for your
product.
Use the Proper Fuse
To avoid fire hazard, use a fuse of the correct type.
Do not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an ex-
plosive atmosphere.
Do not Remove Cover or Panel
To avoid personal injury, do not remove the cover or panel.
Refer servicing to qualified personnel.
Voltage Conversion
If the power source is not applied to your product, contact
your dealer. To avoid electrical shock, do not perform the
voltage conversion.
CONTENTS
SAFETY 2
FEATURES 3
SPECIFICATIONS 4
A PRECAUTIONS 7
CONTROLS AND INDICATORS 9
FRONT PANEL 9
REAR PANEL 14
DIRECTIONS FOR USE 15
READOUT DISPLAY 15
OPERATING INSTRUCTIONS 16
INITIAL STARTING PROCEDURE 16
[A] OPERATIONS AS A GENERAL-USE OSCILLOSCOPE 16
(1) NORMAL SWEEP DISPLAY OPERATION ..16
(2) MAGNIFIED SWEEP OPERATION 18
(3) ALTERNATE SWEEP OPERATION 18
(4) X-Y OPERATION 19
(5) VIDEO SIGNAL OBSERVATION 19
(6) SINGLE SWEEP OPERATION 20
[B] READOUT OPERATION 20
APPLICATION 21
PROBE COMPENSATION.... 21
TRACE ROTATION COMPENSATION ...21
1. DC VOLTAGE MEASUREMENTS 21
2. MEASUREMENTS OF THE VOLTAGE
BETWEEN TWO POINTS ON A WAVEFORM 22
3. ELIMINATION OF UNDESIRED SIGNAL
COMPONENTS 23
4. VOLTAGE RATIO MEASUREMENT
USING CURSORS 23
5. TIME MEASUREMENTS 24
6. TIME DIFFERENCE MEASUREMENT 24
7. PULSE WIDTH MEASUREMENTS 25
8. PULSE RISE TIME AND FALL TIME
MEASUREMENTS 26
9. PHASE DIFFERENCE MEASUREMENTS 27
10. TIME RATIO MEASUREMENT USING CURSORS ..28
11. FREQUENCY MEASUREMENTS 29
12. RELATIVE MEASUREMENTS 30
13. PULSE JITTER MEASUREMENTS 31
14. SWEEP MAGNIFICATIONS 32
15. APPLICATION OF X-Y OPERATION 32
/^MAINTENANCE 34
ACCESSORIES .35
NOTE: This instruction manual is described for two models
CS-51 70 and CS-51 75. Refer to item applied to
your product.
