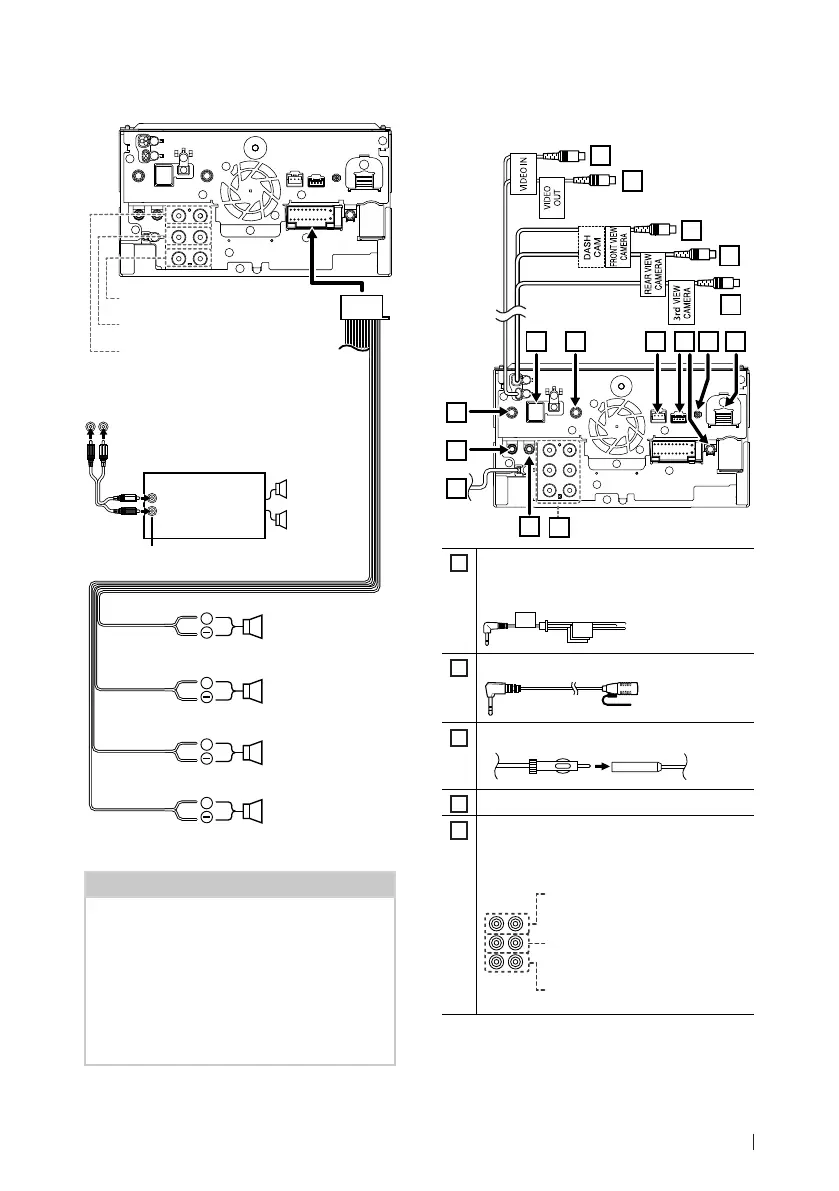

Connection/Installation
87English
+
+
+
+
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Gray
Subwoofer Preout
Mid Range Preout
Tweeter Preout
White/Black
Gray/Black
Green/Black
Purple/Black
Speaker impedance: 4-8 Ω
Purple
Green
White
To mid range left
speaker
To mid range right
speaker
To tweeter left speaker
To tweeter right
speaker
Power amplifier
(optional
accessory)
RCA Cable
(Sold separately)
Input
Speaker
Preout
NOTE
• For speaker system setup, see 3-way speaker
system setup (P.60).
• For speaker setup and crossover setup, see
Speaker / X’over setup (P.61).
• For how to connect speaker wires to terminals
other than speaker terminals and Preout
terminals, see Connecting the system and
external components (P.87) and Connecting
wires to terminals (P.86).
Ñ 3-way speaker system setup Ñ Connecting the system and
external components
16
15
14
13
12
10 11 689 7
2
1
3
4
5
1
Accessory ! : Steering remote harness
Connect to vehicle’s steering remote harness.
Contact your KENWOOD dealer for details.
2
Accessory 3 : Bluetooth Microphone
3
FM/AM antenna input
4
AV Audio output (ø3.5 mini jack)
5
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
!B5A-3356-00_20DDX_M_FP_En.indb 87 2020/08/04 8:15
