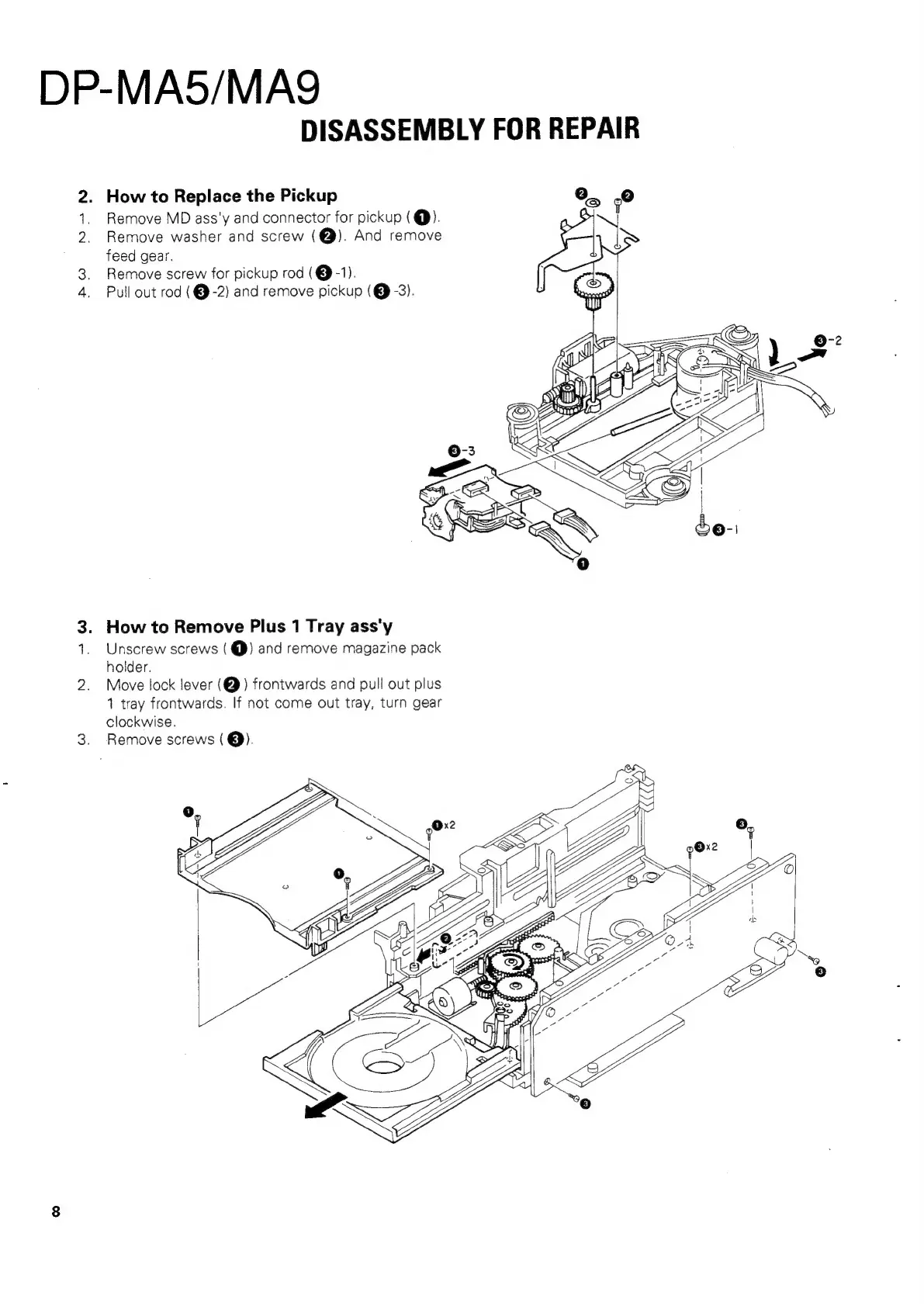

Kenwood DP-MA5 User Manual

DP-MA5/MA9
Nand
. How to Replace the Pickup
DISASSEMBLY
FOR
REPAIR
Remove MD ass'y and connector for pickup ( @).
Remove washer and screw (@). And remove
feed gear.
Remove screw for pickup rod (@-1).
Pull out rod (@-2) and remove pickup ( -3).
. How to Remove Plus 1 Tray ass'y
Unscrew screws ( @) and remove magazine pack
hoider.
Move lock lever (@) frontwards and pull out plus
1 tray frontwards. If not come out tray, turn gear
clockwise.
Remove screws ( @).
