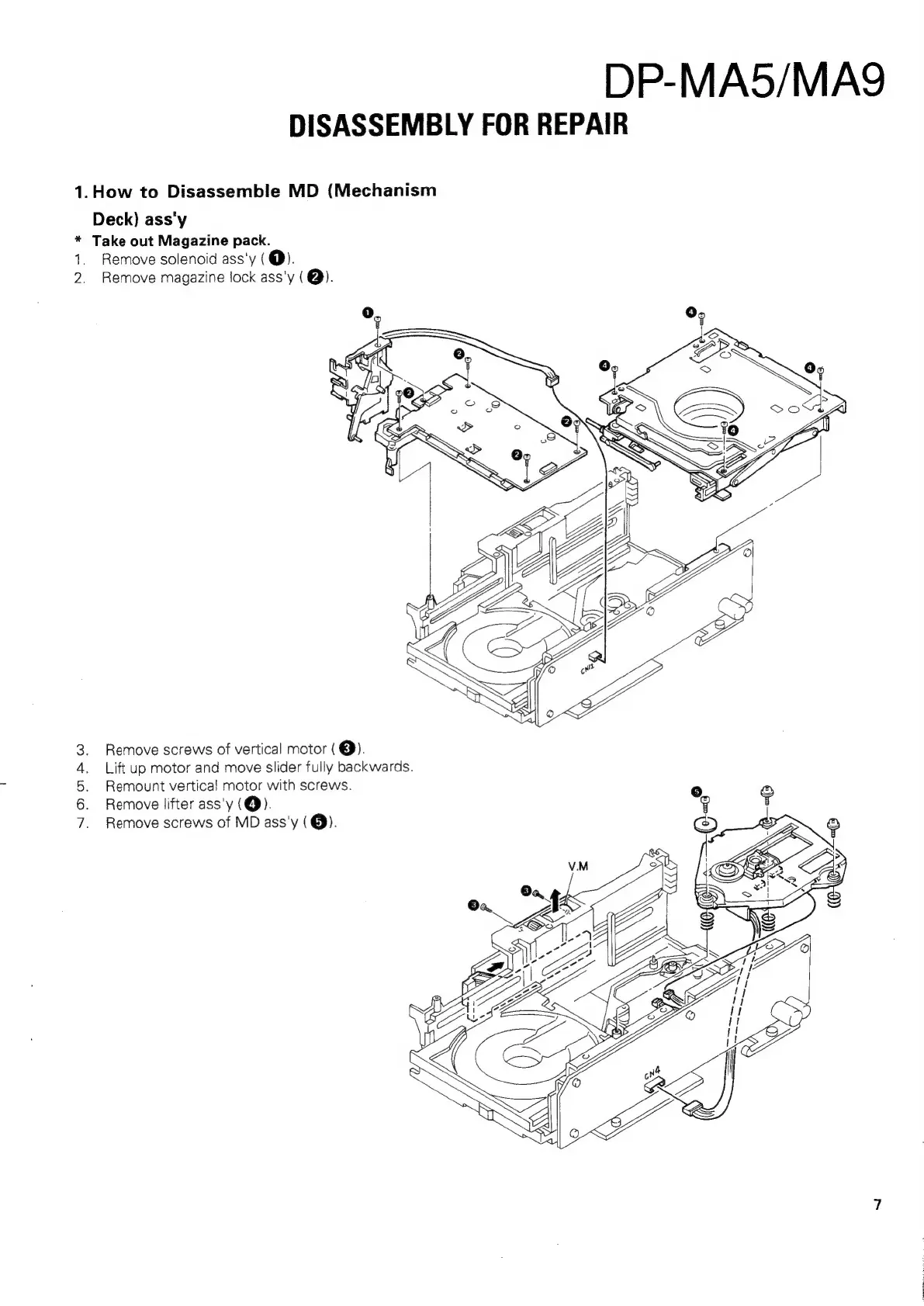

DP-MA5/MA9
DISASSEMBLY
FOR
REPAIR
1.
How
to
Disassemble
MD
(Mechanism
Deck)
ass'y
*
Take
out
Magazine
pack.
1.
Remove
solenoid
ass'y
(
@).
2.
Remove
magazine
lock
ass'y
(@).
Remove
screws
of
vertical
motor
(
@).
Lift
up
motor
and
move
slider
fully
backwards.
Remount
vertical
motor
with
screws.
Remove
lifter
ass'y
(@).
Remove
screws
of
MD
ass'y
(
@).
i“)
a
NOaRY
