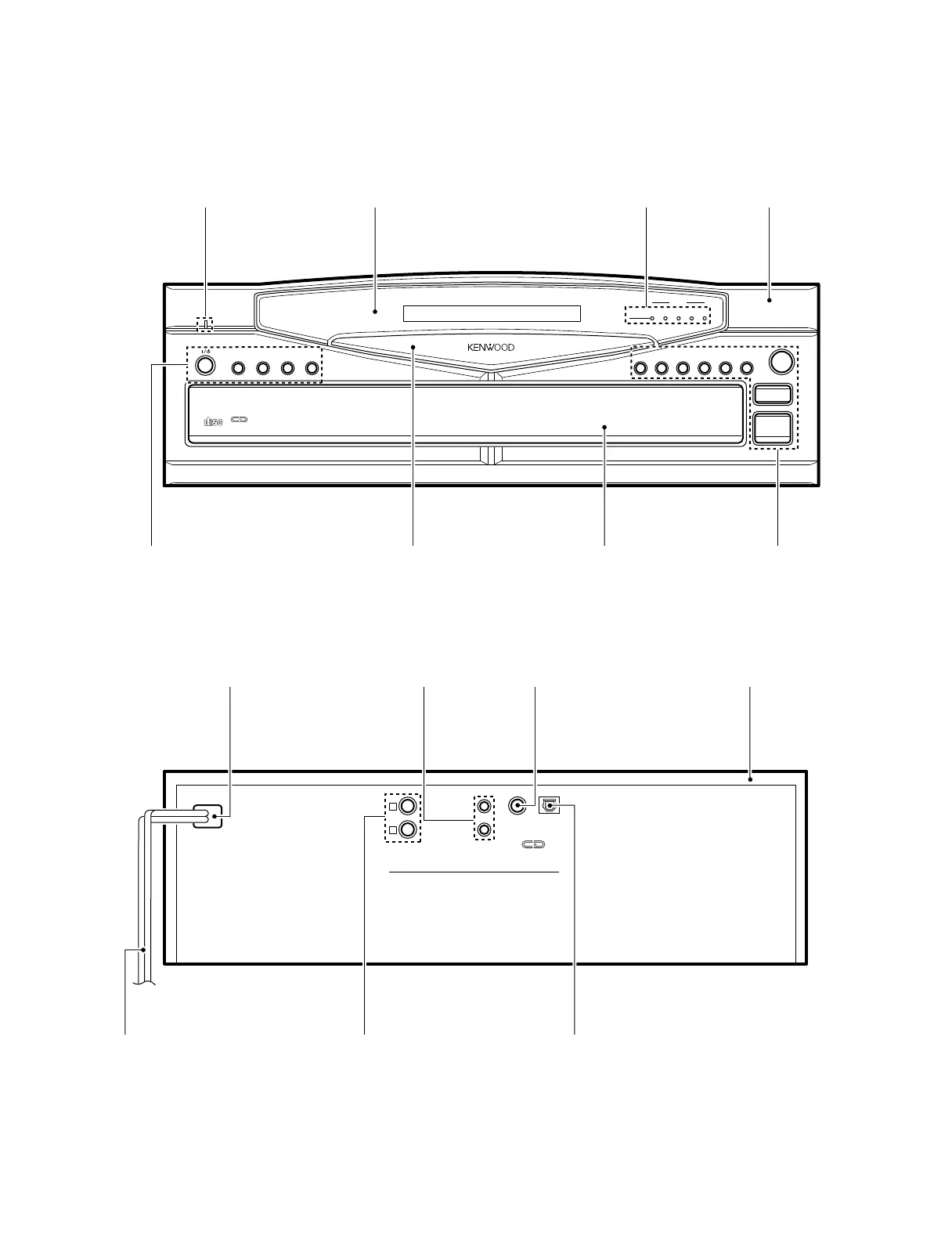

EXTERNAL VIEW
DISC SELECTOR
DISC
1
1 2¢4 3
MULTIPLE CD PLAYER D-R350
REPEAT
ON/STANDBY
D.R.I.V.E.
RANDOM 4 5
0
7
6
DISC SKIP
2 3 4 5

TEXT
DIGITAL AUDIODIGITAL AUDIO
COMPACTCOMPACT
L
R
LINE OUTPUT
DIGITAL OUTPUT
OPTICAL
COAXIAL
SISTEM
CONTROL
TEXT
Front glass
(B10-2353-22)
Dressing panel
(A21-1964-03)
Indicator
(B12-0312-04)
Indicator
(B12-0313-14)
Panel *
(A60-)
Power cord bushing
(J42-0083-05)
Miniature phone jack
(E11-0293-05)
Phono jack
(E63-0199-05)
Metallic cabinet
(A01-3440-01)
Knob
(K29-6649-02)
Panel
(A29-0858-12)
Knob
(K29-6648-12)
Oscillating module
(W02-1114-05)
AC power cord *
(E30-)
Phono jack
(E63-1009-05)
Illust is D-R350.
* Refer to parts list on page 21.
