KDC-2031SA/2031SAY
KDC-2031SG/2031SGY

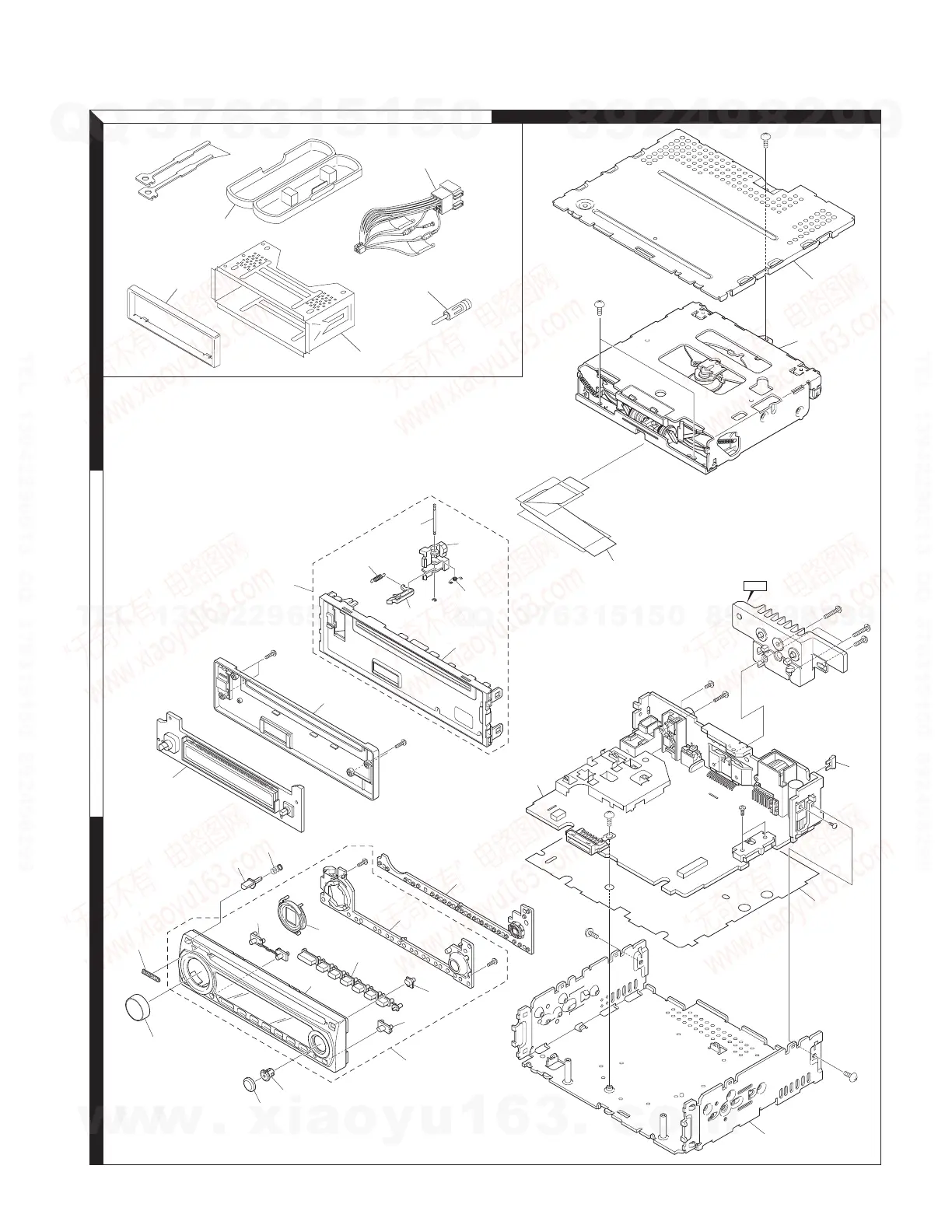

EXPLODED VIEW (UNIT)
Parts with the exploded numbers larger than 700 are not supplied.
3
2
1
DC
(X34-)
(X16-)
F1
FC1
DC1
268
242
207
209
201
DME1
A
B
C
D
E
F
G
H
J
: N29-0205-04
: N80-2006-48
: N80-2008-43
: N83-3005-48
: N86-2610-48
: N80-3010-48
: N83-3005-48
: N83-3020-48
: N86-2606-48
223
x2
D
D
x2
Hx2
F
F
J
D
D
D
G
H
(X34)
785
Ex2
772
732
701
A
705
204
237
222
236
221
224
Cx2
Cx2
771
206
B
B
PA1
261
259
257
213
210
241
255
708
254
253
238
252
251
226
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299

Kenwood KDC-2031SA Specifications

Power

maximum power	45W x 4
power (DIN45324, +B=14.4V)	28W x 4
operating voltage	14.4V
current consumption	10A

Frequency and Sensitivity

frequency range (FM)	87.5MHz~108.0MHz
frequency range (AM)	531kHz~1611kHz
frequency range (LW)	153kHz~281kHz
usable sensitivity (FM, S/N : 26dB)	0.7µV/75Ω
quieting sensitivity (FM, S/N : 46dB)	1.6µV/75Ω
usable sensitivity (AM, S/N : 20dB)	25µV
usable sensitivity (LW, S/N : 20dB)	45µV

Weight and Dimensions

width	182mm
height	53mm
depth	155mm
weight	1.40kg (3.1 lbs)
