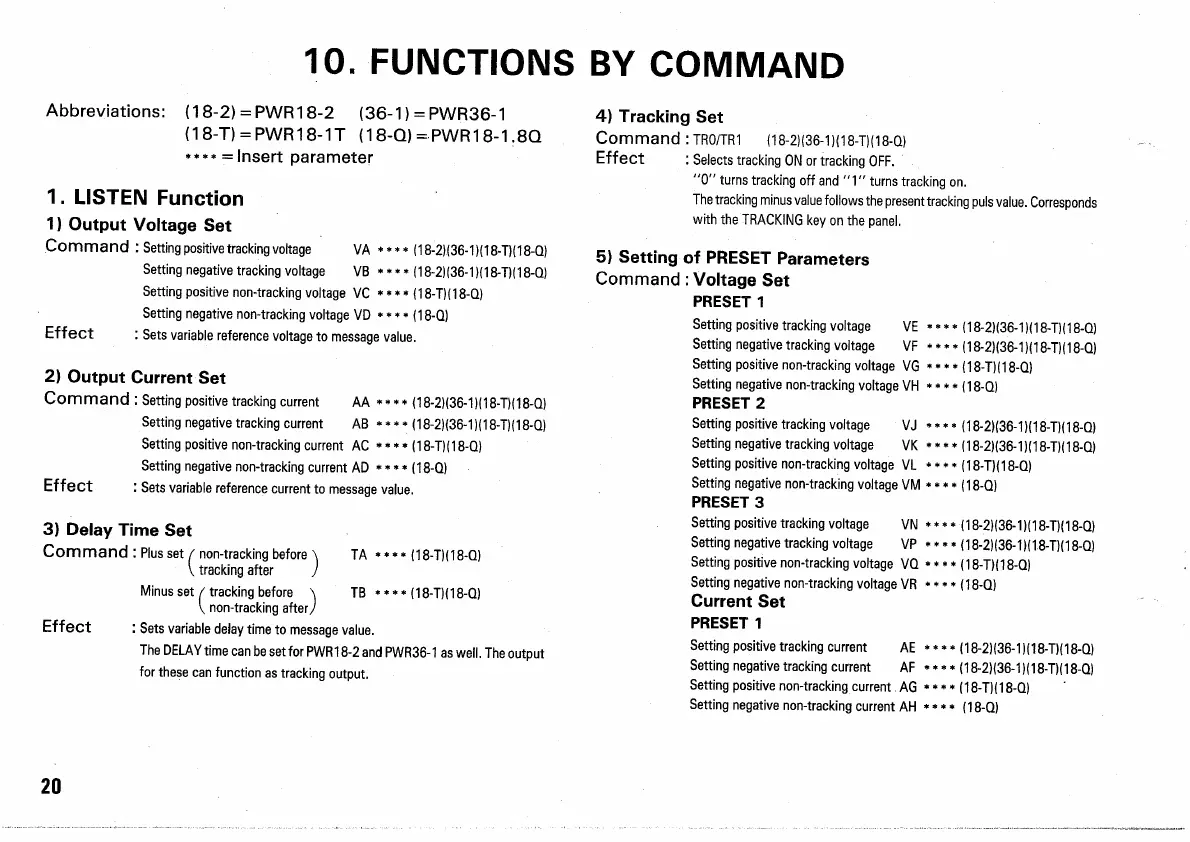

10. FUNCTIONS
BY
COMMAND
Abbreviations:
(18-2)
=
PWR
18-2
(36-1)
=
PWR36-1
(18-T)
=
PWR
18-1T
(18-Q)
=
PWR
18-1.
8Q
****
=
Insert parameter
1.
LISTEN
Function
1) Output Voltage
Set
Command
:
Setting
positive
tracking
voltage
VA
****
(18-21(36-1
)(18-T)(18-Q)
Setting negative tracking voltage
VB
****
(18-2)(36-1)(18-T)(18-Q)
Setting positive non-tracking voltage
VC *
*
* *
(18-T)(18-Q)
Setting negative non-tracking voltage VD
* *
* *
(18-Q)
Effect
:
Sets
variable
reference
voltage
to
message value.
2) Output Current
Set
Command
:
Setting positive tracking current
AA
****
(18-2)136-1
)(18-T)(18-Q)
Setting negative tracking current
AB
****
(18-2) (36-1)
(18-T)
{18-Q)
Setting positive non-tracking current
AC * * * *
(18-T)
(18-Q)
Setting negative non-tracking current AD
*
* *
*
(18-Q)
Effect
:
Sets
variable
reference
current
to
message value.
3) Delay Time
Set
Command
:
Plus
set
/
non-tracking before
\ TA * ***
(18-T)(18-Q)
V
tracking after
J
Minus set
/
tracking before
\ TB *
*
*
*
(18-T)
(18-Q)
\ non-tracking after/
Effect
:
Sets
variable delay
time
to
message value.
The
DELAY
time
can
be
set
for
PWR
18-2 and
PWR36-1
as
well.
The
output
for
these
can
function
as
tracking
output.
4) Tracking
Set
Command
:
TR0/TR1
(18-2)(36-1)(18-T)(18-Q)
Effect
:
Selects
tracking
ON
or tracking
OFF.
"0"
turns tracking
off
and
"1"
turns tracking on.
The
tracking
minus
value
follows
the
present
tracking
puis
value.
Corresponds
with
the
TRACKING
key on the
panel.
5) Setting
of
PRESET
Parameters
Command:
Voltage
Set
PRESET
1
Setting positive tracking voltage
VE
* * *
*
(18-21(36-1
)(18-T)( 18-Q)
Setting negative tracking voltage
VF
****
(18-2)(36-1)(18-T)(18-Q)
Setting positive non-tracking voltage
VG
*
* * *
(18-T)
(18-Q)
Setting negative non-tracking voltage
VH
* *
*
*
(18-Q)
PRESET
2
Setting positive tracking voltage
VJ
* * * *
(18-2)(36-1)(18-T)(18-Q)
Setting negative tracking voltage
VK
****
(18-2)(36-1)(18-T)(18-Q)
Setting positive non-tracking voltage
VL * *
* *
(18-T)( 18-Q)
Setting negative non-tracking voltage
VM
*
*
* *
(18-Q)
PRESET
3
Setting positive tracking voltage
VN
****
(18-2)(36-1)(18-T)(18-Q)
Setting
negative
tracking voltage
VP
»
* *
*
(18-2)(36-1)(18-T)(18-Q)
Setting positive non-tracking voltage
VQ *
* *
*
(18-TM18-Q)
Setting negative non-tracking voltage
VR
*
*
* *
(18-Q)
Current
Set
PRESET
1
Setting positive tracking current
AE * *
* *
(18-2)(36-1)(18-T)(18-Q)
Setting negative tracking current
AF * *
* *
(18-2){36-1)(18-T)(18-Q)
Setting positive non-tracking current
AG *
*
* *
(18-TM18-Q)
Setting negative non-tracking current AH ****
(18-Q)
20
