7 2-Channel mono configuration
In this configuration you can connect 2 speakers (such as 2
subwoofers) to the MX-5000 and send a single preamp signal (such
as a mono subwoofer output) to both speakers without using a Y-
adapter. The amplifier delivers its rated stereo power output to each
speaker.
1 Make sure that the MX-5000’s power cord is unplugged
from the wall outlet before making any connections.
2 According to the speakers to be used, set the speaker
impedance selector switch as follows:
• For 2 Ω speakers: Set the 2Ω (STEREO)/6Ω OVER switch
to 2Ω (STEREO) and 6Ω OVER/2Ω switch to 2Ω.
• For 6-16 Ω speakers: Set the 2Ω (STEREO)/6Ω OVER
switch to 6Ω OVER and 6Ω OVER/2Ω switch to 6Ω OVER.

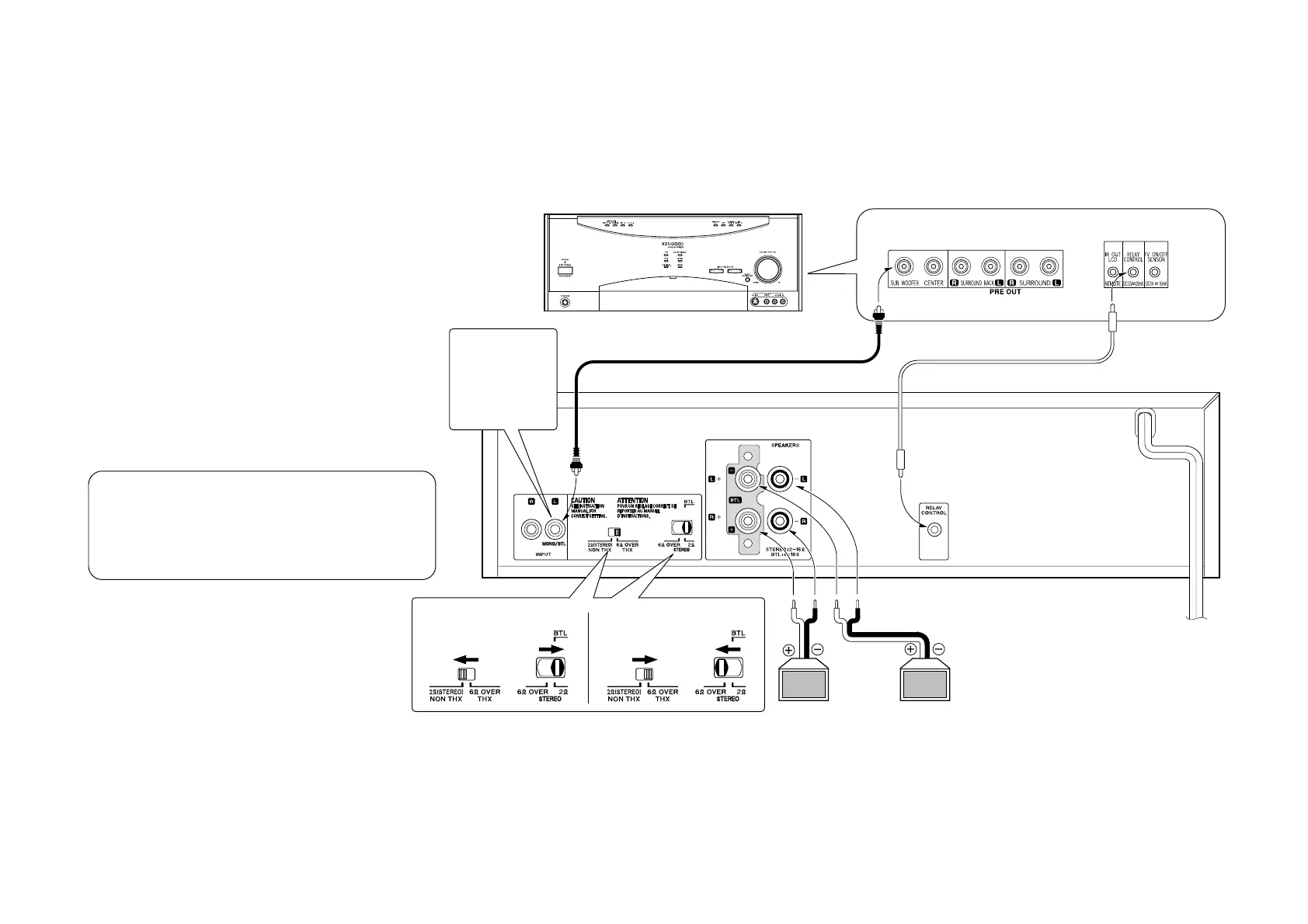

3 Connect the amplifier as shown in the diagram.
•
Make sure to connect the audio input cable to the MONO/BTL
input.
Now you can plug the power cord of this
unit into the AC outlet!
CAUTION:
Before reconnecting a speaker cord or switching a
selector switch, turn OFF the power and unplug the
power cord to avoid malfunctions or damage to the
unit.
VR-5900
Audio cord (not supplied)
Stereo mini-plug cord (supplied)
To wall AC outlet
(Left)
(Right)
Subwoofers
(2Ω-16Ω)
When a monaural
pre-out signal is to
be connected, be
sure to connect it to
the MONO/BTL
terminal.
For 12 V RELAY CONTROL, see page 7.
* If you connect more than one pair of speakers to the MX-5000, move the 2Ω (STEREO)/6Ω OVER (THX) switch to the 2Ω (STEREO)
position. The amplifier’s performance is not THX
®
-certified when the switch is set in the 2Ω (STEREO) position.
* In the case of 2 Ω In the case of 6 Ω
