Kenwood TH-K20A Service Manual

TH-K20A/K20E
13

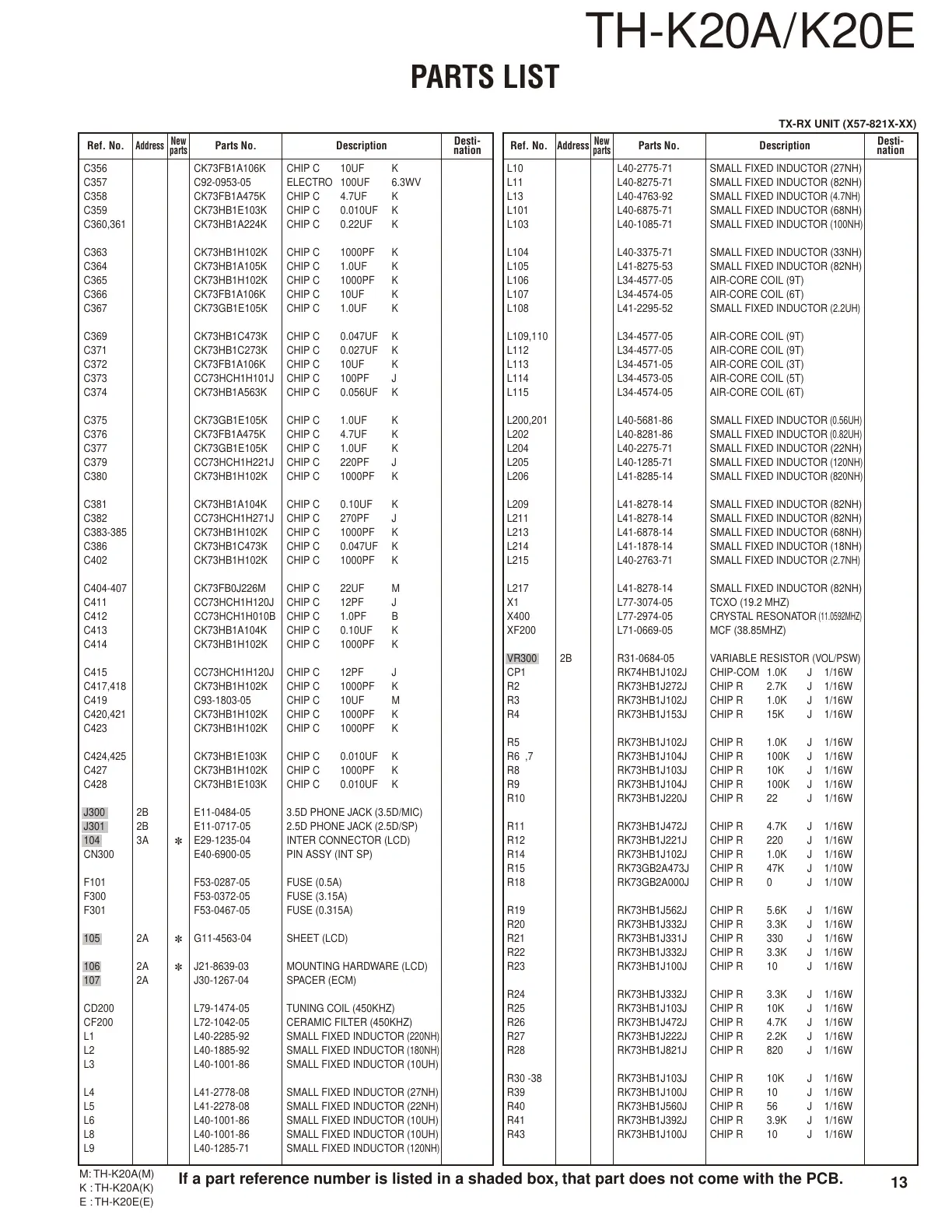

PARTS LIST
Ref. No. Address Parts No. Description
Desti-
nation
New
parts
Ref. No. Address Parts No. Description
Desti-
nation
New
parts
M: TH-K20A(M)
K : TH-K20A(K)
E : TH-K20E(E)
TX-RX UNIT (X57-821X-XX)
C356 CK73FB1A106K CHIP C 10UF K
C357 C92-0953-05 ELECTRO 100UF 6.3WV
C358 CK73FB1A475K CHIP C 4.7UF K
C359 CK73HB1E103K CHIP C 0.010UF K
C360,361 CK73HB1A224K CHIP C 0.22UF K
C363 CK73HB1H102K CHIP C 1000PF K
C364 CK73HB1A105K CHIP C 1.0UF K
C365 CK73HB1H102K CHIP C 1000PF K
C366 CK73FB1A106K CHIP C 10UF K
C367 CK73GB1E105K CHIP C 1.0UF K
C369 CK73HB1C473K CHIP C 0.047UF K
C371 CK73HB1C273K CHIP C 0.027UF K
C372 CK73FB1A106K CHIP C 10UF K
C373 CC73HCH1H101J CHIP C 100PF J
C374 CK73HB1A563K CHIP C 0.056UF K
C375 CK73GB1E105K CHIP C 1.0UF K
C376 CK73FB1A475K CHIP C 4.7UF K
C377 CK73GB1E105K CHIP C 1.0UF K
C379 CC73HCH1H221J CHIP C 220PF J
C380 CK73HB1H102K CHIP C 1000PF K
C381 CK73HB1A104K CHIP C 0.10UF K
C382 CC73HCH1H271J CHIP C 270PF J
C383-385 CK73HB1H102K CHIP C 1000PF K
C386 CK73HB1C473K CHIP C 0.047UF K
C402 CK73HB1H102K CHIP C 1000PF K
C404-407 CK73FB0J226M CHIP C 22UF M
C411 CC73HCH1H120J CHIP C 12PF J
C412 CC73HCH1H010B CHIP C 1.0PF B
C413 CK73HB1A104K CHIP C 0.10UF K
C414 CK73HB1H102K CHIP C 1000PF K
C415 CC73HCH1H120J CHIP C 12PF J
C417,418 CK73HB1H102K CHIP C 1000PF K
C419 C93-1803-05 CHIP C 10UF M
C420,421 CK73HB1H102K CHIP C 1000PF K
C423 CK73HB1H102K CHIP C 1000PF K
C424,425 CK73HB1E103K CHIP C 0.010UF K
C427 CK73HB1H102K CHIP C 1000PF K
C428 CK73HB1E103K CHIP C 0.010UF K
J300 2B E11-0484-05 3.5D PHONE JACK (3.5D/MIC)
J301 2B E11-0717-05 2.5D PHONE JACK (2.5D/SP)
104 3A
✽
E29-1235-04 INTER CONNECTOR (LCD)
CN300 E40-6900-05 PIN ASSY (INT SP)
F101 F53-0287-05 FUSE (0.5A)
F300 F53-0372-05 FUSE (3.15A)
F301 F53-0467-05 FUSE (0.315A)
105 2A
✽
G11-4563-04 SHEET (LCD)
106 2A
✽
J21-8639-03 MOUNTING HARDWARE (LCD)
107 2A J30-1267-04 SPACER (ECM)
CD200 L79-1474-05 TUNING COIL (450KHZ)
CF200 L72-1042-05 CERAMIC FILTER (450KHZ)
L1 L40-2285-92 SMALL FIXED INDUCTOR
(220NH)
L2 L40-1885-92 SMALL FIXED INDUCTOR (180NH)
L3 L40-1001-86 SMALL FIXED INDUCTOR (10UH)
L4 L41-2778-08 SMALL FIXED INDUCTOR (27NH)
L5 L41-2278-08 SMALL FIXED INDUCTOR (22NH)
L6 L40-1001-86 SMALL FIXED INDUCTOR (10UH)
L8 L40-1001-86 SMALL FIXED INDUCTOR (10UH)
L9 L40-1285-71 SMALL FIXED INDUCTOR
(120NH)
L10 L40-2775-71 SMALL FIXED INDUCTOR (27NH)
L11 L40-8275-71 SMALL FIXED INDUCTOR (82NH)
L13 L40-4763-92 SMALL FIXED INDUCTOR
(4.7NH)
L101 L40-6875-71 SMALL FIXED INDUCTOR (68NH)
L103 L40-1085-71 SMALL FIXED INDUCTOR
(100NH)
L104 L40-3375-71 SMALL FIXED INDUCTOR (33NH)
L105 L41-8275-53 SMALL FIXED INDUCTOR (82NH)
L106 L34-4577-05 AIR-CORE COIL (9T)
L107 L34-4574-05 AIR-CORE COIL (6T)
L108 L41-2295-52 SMALL FIXED INDUCTOR
(2.2UH)
L109,110 L34-4577-05 AIR-CORE COIL (9T)
L112 L34-4577-05 AIR-CORE COIL (9T)
L113 L34-4571-05 AIR-CORE COIL (3T)
L114 L34-4573-05 AIR-CORE COIL (5T)
L115 L34-4574-05 AIR-CORE COIL (6T)
L200,201 L40-5681-86 SMALL FIXED INDUCTOR
(0.56UH)
L202 L40-8281-86 SMALL FIXED INDUCTOR
(0.82UH)
L204 L40-2275-71 SMALL FIXED INDUCTOR (22NH)
L205 L40-1285-71 SMALL FIXED INDUCTOR
(120NH)
L206 L41-8285-14 SMALL FIXED INDUCTOR
(820NH)
L209 L41-8278-14 SMALL FIXED INDUCTOR (82NH)
L211 L41-8278-14 SMALL FIXED INDUCTOR (82NH)
L213 L41-6878-14 SMALL FIXED INDUCTOR (68NH)
L214 L41-1878-14 SMALL FIXED INDUCTOR (18NH)
L215 L40-2763-71 SMALL FIXED INDUCTOR
(2.7NH)
L217 L41-8278-14 SMALL FIXED INDUCTOR (82NH)
X1 L77-3074-05 TCXO (19.2 MHZ)
X400 L77-2974-05 CRYSTAL RESONATOR
(11.0592MHZ)
XF200 L71-0669-05 MCF (38.85MHZ)
VR300 2B R31-0684-05 VARIABLE RESISTOR
(VOL/PSW)
CP1 RK74HB1J102J CHIP-COM 1.0K J 1/16W
R2 RK73HB1J272J CHIP R 2.7K J 1/16W
R3 RK73HB1J102J CHIP R 1.0K J 1/16W
R4 RK73HB1J153J CHIP R 15K J 1/16W
R5 RK73HB1J102J CHIP R 1.0K J 1/16W
R6 ,7 RK73HB1J104J CHIP R 100K J 1/16W
R8 RK73HB1J103J CHIP R 10K J 1/16W
R9 RK73HB1J104J CHIP R 100K J 1/16W
R10 RK73HB1J220J CHIP R 22 J 1/16W
R11 RK73HB1J472J CHIP R 4.7K J 1/16W
R12 RK73HB1J221J CHIP R 220 J 1/16W
R14 RK73HB1J102J CHIP R 1.0K J 1/16W
R15 RK73GB2A473J CHIP R 47K J 1/10W
R18 RK73GB2A000J CHIP R 0 J 1/10W
R19 RK73HB1J562J CHIP R 5.6K J 1/16W
R20 RK73HB1J332J CHIP R 3.3K J 1/16W
R21 RK73HB1J331J CHIP R 330 J 1/16W
R22 RK73HB1J332J CHIP R 3.3K J 1/16W
R23 RK73HB1J100J CHIP R 10 J 1/16W
R24 RK73HB1J332J CHIP R 3.3K J 1/16W
R25 RK73HB1J103J CHIP R 10K J 1/16W
R26 RK73HB1J472J CHIP R 4.7K J 1/16W
R27 RK73HB1J222J CHIP R 2.2K J 1/16W
R28 RK73HB1J821J CHIP R 820 J 1/16W
R30 -38 RK73HB1J103J CHIP R 10K J 1/16W
R39 RK73HB1J100J CHIP R 10 J 1/16W
R40 RK73HB1J560J CHIP R 56 J 1/16W
R41 RK73HB1J392J CHIP R 3.9K J 1/16W
R43 RK73HB1J100J CHIP R 10 J 1/16W
If a part reference number is listed in a shaded box, that part does not come with the PCB.
