Kenwood TH-K20A Service Manual

TH-K20A/K20E
14
Ref. No. Address Parts No. Description
Desti-
nation
New
parts

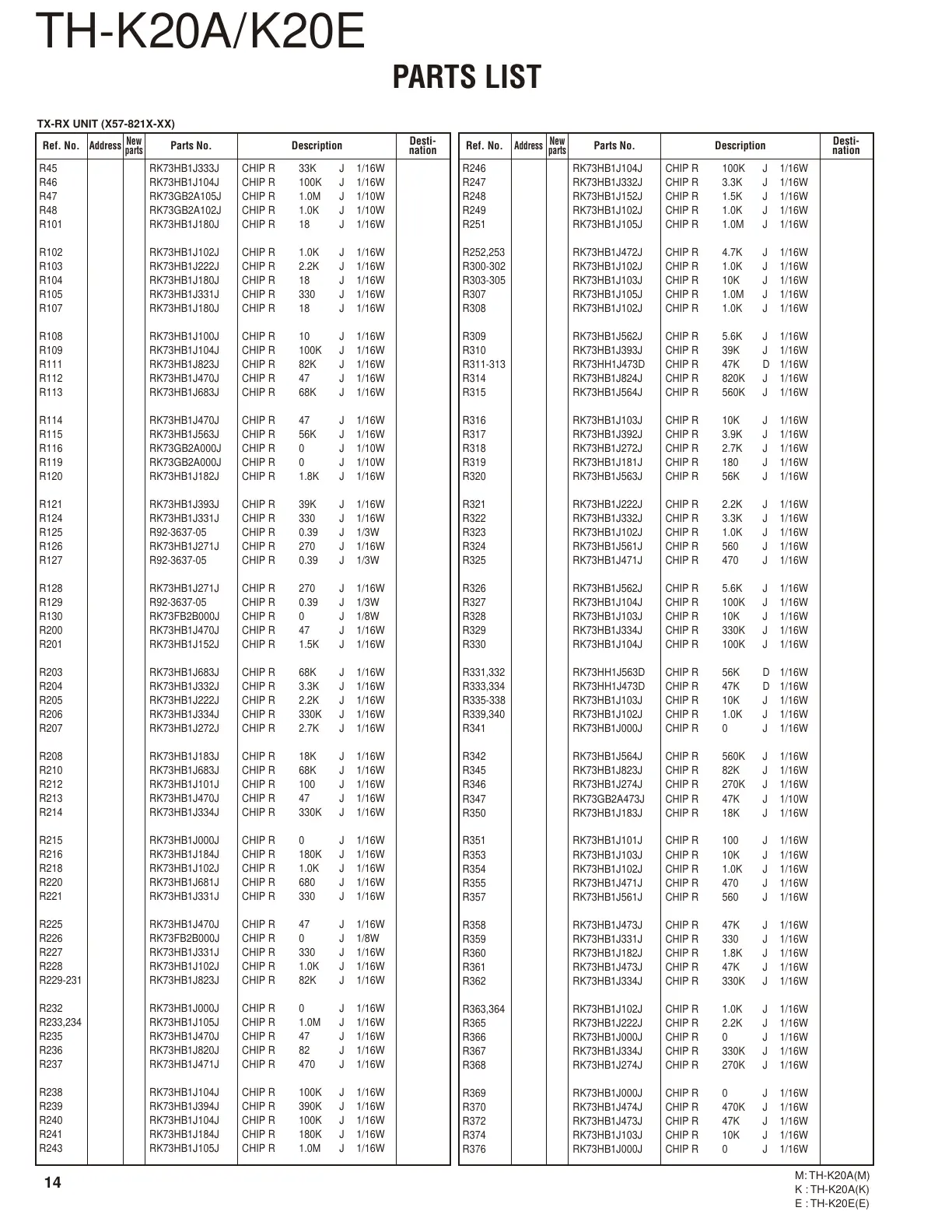

PARTS LIST
Ref. No. Address Parts No. Description
Desti-
nation
New
parts
M: TH-K20A(M)
K : TH-K20A(K)
E : TH-K20E(E)
TX-RX UNIT (X57-821X-XX)
R45 RK73HB1J333J CHIP R 33K J 1/16W
R46 RK73HB1J104J CHIP R 100K J 1/16W
R47 RK73GB2A105J CHIP R 1.0M J 1/10W
R48 RK73GB2A102J CHIP R 1.0K J 1/10W
R101 RK73HB1J180J CHIP R 18 J 1/16W
R102 RK73HB1J102J CHIP R 1.0K J 1/16W
R103 RK73HB1J222J CHIP R 2.2K J 1/16W
R104 RK73HB1J180J CHIP R 18 J 1/16W
R105 RK73HB1J331J CHIP R 330 J 1/16W
R107 RK73HB1J180J CHIP R 18 J 1/16W
R108 RK73HB1J100J CHIP R 10 J 1/16W
R109 RK73HB1J104J CHIP R 100K J 1/16W
R111 RK73HB1J823J CHIP R 82K J 1/16W
R112 RK73HB1J470J CHIP R 47 J 1/16W
R113 RK73HB1J683J CHIP R 68K J 1/16W
R114 RK73HB1J470J CHIP R 47 J 1/16W
R115 RK73HB1J563J CHIP R 56K J 1/16W
R116 RK73GB2A000J CHIP R 0 J 1/10W
R119 RK73GB2A000J CHIP R 0 J 1/10W
R120 RK73HB1J182J CHIP R 1.8K J 1/16W
R121 RK73HB1J393J CHIP R 39K J 1/16W
R124 RK73HB1J331J CHIP R 330 J 1/16W
R125 R92-3637-05 CHIP R 0.39 J 1/3W
R126 RK73HB1J271J CHIP R 270 J 1/16W
R127 R92-3637-05 CHIP R 0.39 J 1/3W
R128 RK73HB1J271J CHIP R 270 J 1/16W
R129 R92-3637-05 CHIP R 0.39 J 1/3W
R130 RK73FB2B000J CHIP R 0 J 1/8W
R200 RK73HB1J470J CHIP R 47 J 1/16W
R201 RK73HB1J152J CHIP R 1.5K J 1/16W
R203 RK73HB1J683J CHIP R 68K J 1/16W
R204 RK73HB1J332J CHIP R 3.3K J 1/16W
R205 RK73HB1J222J CHIP R 2.2K J 1/16W
R206 RK73HB1J334J CHIP R 330K J 1/16W
R207 RK73HB1J272J CHIP R 2.7K J 1/16W
R208 RK73HB1J183J CHIP R 18K J 1/16W
R210 RK73HB1J683J CHIP R 68K J 1/16W
R212 RK73HB1J101J CHIP R 100 J 1/16W
R213 RK73HB1J470J CHIP R 47 J 1/16W
R214 RK73HB1J334J CHIP R 330K J 1/16W
R215 RK73HB1J000J CHIP R 0 J 1/16W
R216 RK73HB1J184J CHIP R 180K J 1/16W
R218 RK73HB1J102J CHIP R 1.0K J 1/16W
R220 RK73HB1J681J CHIP R 680 J 1/16W
R221 RK73HB1J331J CHIP R 330 J 1/16W
R225 RK73HB1J470J CHIP R 47 J 1/16W
R226 RK73FB2B000J CHIP R 0 J 1/8W
R227 RK73HB1J331J CHIP R 330 J 1/16W
R228 RK73HB1J102J CHIP R 1.0K J 1/16W
R229-231 RK73HB1J823J CHIP R 82K J 1/16W
R232 RK73HB1J000J CHIP R 0 J 1/16W
R233,234 RK73HB1J105J CHIP R 1.0M J 1/16W
R235 RK73HB1J470J CHIP R 47 J 1/16W
R236 RK73HB1J820J CHIP R 82 J 1/16W
R237 RK73HB1J471J CHIP R 470 J 1/16W
R238 RK73HB1J104J CHIP R 100K J 1/16W
R239 RK73HB1J394J CHIP R 390K J 1/16W
R240 RK73HB1J104J CHIP R 100K J 1/16W
R241 RK73HB1J184J CHIP R 180K J 1/16W
R243 RK73HB1J105J CHIP R 1.0M J 1/16W
R246 RK73HB1J104J CHIP R 100K J 1/16W
R247 RK73HB1J332J CHIP R 3.3K J 1/16W
R248 RK73HB1J152J CHIP R 1.5K J 1/16W
R249 RK73HB1J102J CHIP R 1.0K J 1/16W
R251 RK73HB1J105J CHIP R 1.0M J 1/16W
R252,253 RK73HB1J472J CHIP R 4.7K J 1/16W
R300-302 RK73HB1J102J CHIP R 1.0K J 1/16W
R303-305 RK73HB1J103J CHIP R 10K J 1/16W
R307 RK73HB1J105J CHIP R 1.0M J 1/16W
R308 RK73HB1J102J CHIP R 1.0K J 1/16W
R309 RK73HB1J562J CHIP R 5.6K J 1/16W
R310 RK73HB1J393J CHIP R 39K J 1/16W
R311-313 RK73HH1J473D CHIP R 47K D 1/16W
R314 RK73HB1J824J CHIP R 820K J 1/16W
R315 RK73HB1J564J CHIP R 560K J 1/16W
R316 RK73HB1J103J CHIP R 10K J 1/16W
R317 RK73HB1J392J CHIP R 3.9K J 1/16W
R318 RK73HB1J272J CHIP R 2.7K J 1/16W
R319 RK73HB1J181J CHIP R 180 J 1/16W
R320 RK73HB1J563J CHIP R 56K J 1/16W
R321 RK73HB1J222J CHIP R 2.2K J 1/16W
R322 RK73HB1J332J CHIP R 3.3K J 1/16W
R323 RK73HB1J102J CHIP R 1.0K J 1/16W
R324 RK73HB1J561J CHIP R 560 J 1/16W
R325 RK73HB1J471J CHIP R 470 J 1/16W
R326 RK73HB1J562J CHIP R 5.6K J 1/16W
R327 RK73HB1J104J CHIP R 100K J 1/16W
R328 RK73HB1J103J CHIP R 10K J 1/16W
R329 RK73HB1J334J CHIP R 330K J 1/16W
R330 RK73HB1J104J CHIP R 100K J 1/16W
R331,332 RK73HH1J563D CHIP R 56K D 1/16W
R333,334 RK73HH1J473D CHIP R 47K D 1/16W
R335-338 RK73HB1J103J CHIP R 10K J 1/16W
R339,340 RK73HB1J102J CHIP R 1.0K J 1/16W
R341 RK73HB1J000J CHIP R 0 J 1/16W
R342 RK73HB1J564J CHIP R 560K J 1/16W
R345 RK73HB1J823J CHIP R 82K J 1/16W
R346 RK73HB1J274J CHIP R 270K J 1/16W
R347 RK73GB2A473J CHIP R 47K J 1/10W
R350 RK73HB1J183J CHIP R 18K J 1/16W
R351 RK73HB1J101J CHIP R 100 J 1/16W
R353 RK73HB1J103J CHIP R 10K J 1/16W
R354 RK73HB1J102J CHIP R 1.0K J 1/16W
R355 RK73HB1J471J CHIP R 470 J 1/16W
R357 RK73HB1J561J CHIP R 560 J 1/16W
R358 RK73HB1J473J CHIP R 47K J 1/16W
R359 RK73HB1J331J CHIP R 330 J 1/16W
R360 RK73HB1J182J CHIP R 1.8K J 1/16W
R361 RK73HB1J473J CHIP R 47K J 1/16W
R362 RK73HB1J334J CHIP R 330K J 1/16W
R363,364 RK73HB1J102J CHIP R 1.0K J 1/16W
R365 RK73HB1J222J CHIP R 2.2K J 1/16W
R366 RK73HB1J000J CHIP R 0 J 1/16W
R367 RK73HB1J334J CHIP R 330K J 1/16W
R368 RK73HB1J274J CHIP R 270K J 1/16W
R369 RK73HB1J000J CHIP R 0 J 1/16W
R370 RK73HB1J474J CHIP R 470K J 1/16W
R372 RK73HB1J473J CHIP R 47K J 1/16W
R374 RK73HB1J103J CHIP R 10K J 1/16W
R376 RK73HB1J000J CHIP R 0 J 1/16W
