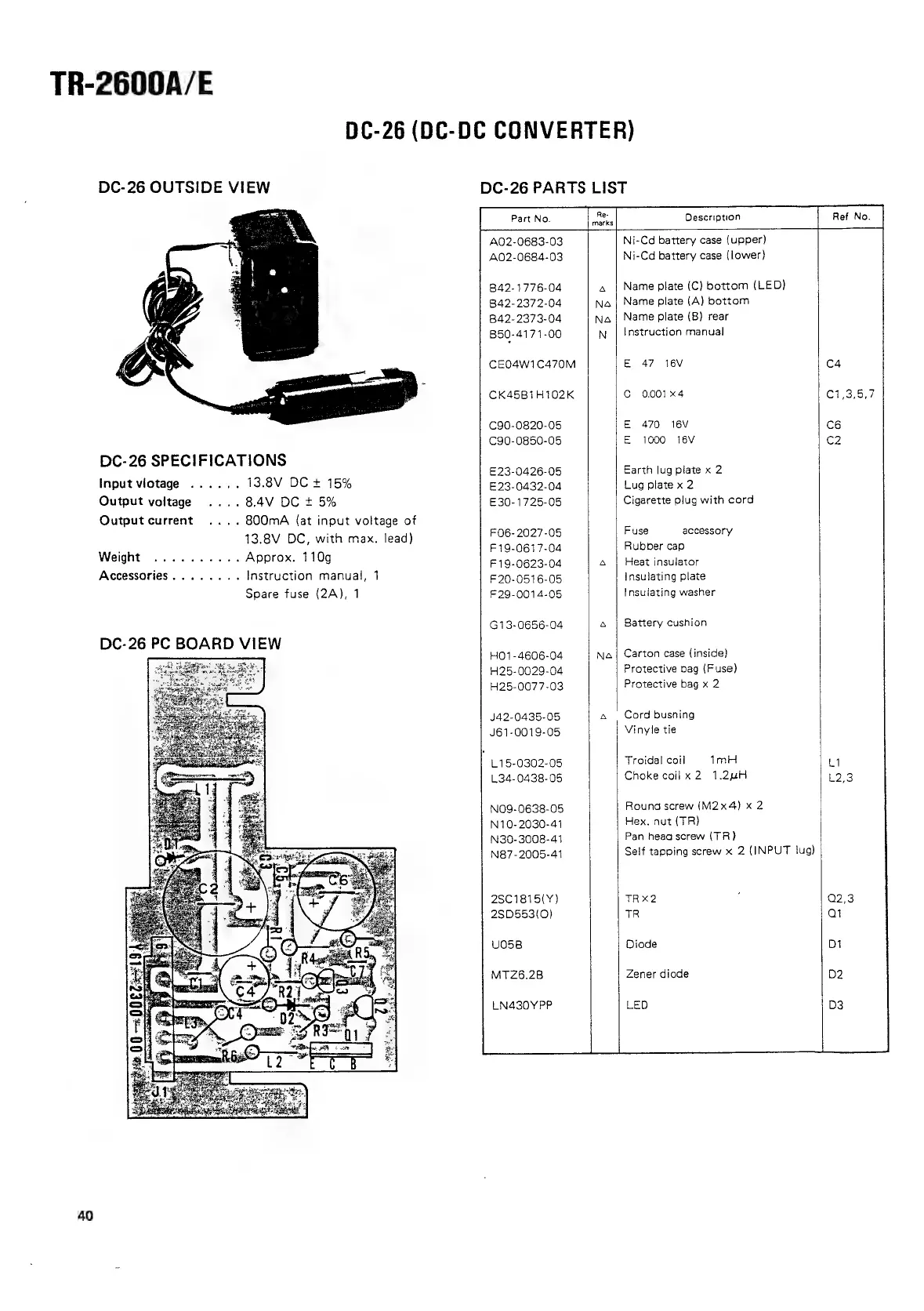

Kenwood TR-2600A - Pc Board View

TR-
40
2600A/E
DC-26 (DC-DC CONVERTER)
DC-26 OUTSIDE VIEW
DC-26 SPECIFICATIONS
Input viotage
Output voltage
Output current
Weight
DC-26 PC BOARD VIEW
13.8V DC + 15%
. 84V DC + 5%
. 800mA (at input voltage of
13.8V DC, with max. lead)
Approx. 110g
Instruction manual, 1
Spare fuse (2A), 1
DC-26 PARTS LIST
A02-0683-03
A02-0684-03
842-1776-04
842-2372-04
842-2373-04
B50-4171-00
CE04W1C470M
CK45B1H102K
C90-0820-05
C90-0850-05
€23-0426-05
E23-0432-04
E30- 1725-05
FO6- 2027-05
F19-0617-04
F19-0623-04
F20-0516-05
F29-0014-05
G13-0656-04
HO1-4606-04
H25-0029-04
H25-0077-03
J42-0435-05
J61-0019-05
L15-0302-05
L34-0438-05
NOQ9-0638-05
N10- 2030-41
N30-3008-41
N87- 2005-41
2SC1815(Y)
2SD553(0)
U05B
MTZ6.2B
LN430Y PP
Description
NS
Na
Ni-Cd battery case (upper)
Ni-Cd battery case (lower)
Name plate (C) bottom (LED)
Name plate (A) bottom
Name plate (B) rear
Instruction manual
E 47 16V
CG 0.001 x4
— 470 16V
E 1000 16V
Earth lug plate x 2
Lug plate x 2
Cigarette plug with cord
Fuse accessory
Rubber cap
Heat insulator
Insulating plate
Insulating washer
| Battery cushion
Carton case (inside)
Protective bag (Fuse)
Protective bag x 2
Cord bushing
Vinyle tie
Troidal coil imH
Choke coilx 2 1.2uH
Round screw (M2x4) x 2
Hex. nut (TR)
Pan head screw (TR)
Self tapping screw x 2 (INPUT lug)
TR
Diode
Zener diode
LED
c4
C1,3,5,7
C6
C2
1
L2,3
Q1
