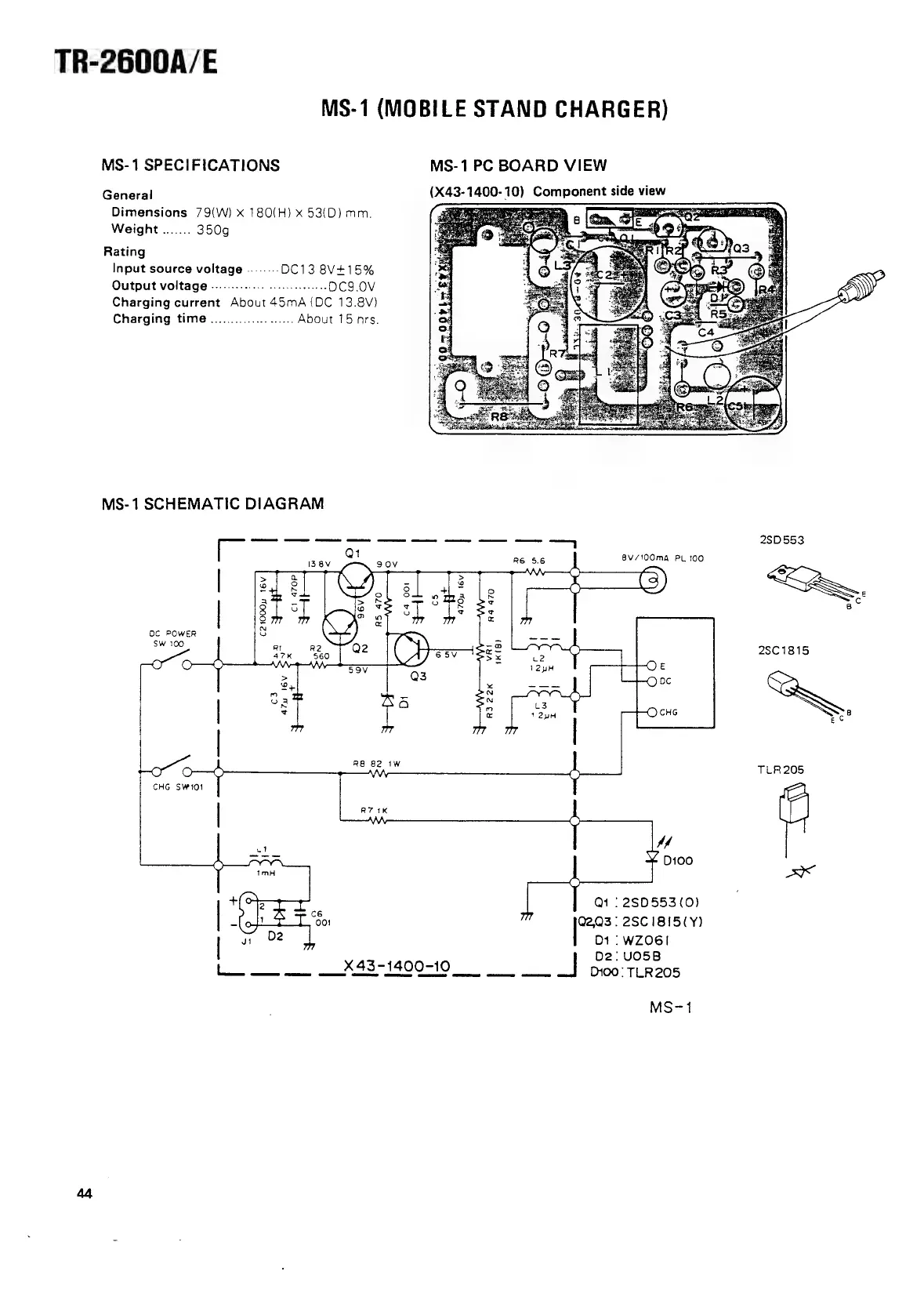

TR-2600A/E
MS-1 (MOBILE STAND CHARGER)
MS- 1 SPECIFICATIONS MS-1 PC BOARD VIEW
General
(X43-1400-10)
Component
side
view
Dimensions 79(W) x 180(H) x 53(D) mm.
Weight ....... 350g
Rating
Input source voltage ........0C13.8V+15%
Output voltage -.....-..-- ee OC9.OV
Charging current About 45mA (DC 13.8V)
Charging time .................... About 15 hrs.
MS-1 SCHEMATIC DIAGRAM
SS SS
’ 8V7100mA PL 100
C21000u 16V
Oc POWER
Sw 100
47u 16V
RB 82 1W
CHG Swot
Mf
¥ D100
Qi: 2SD553(0)
Pe 2SC1815(Y)
D1: WZ06I
D2: U05B
bo XS -1400-10 DI00: TLR205
MS~1
28D553
TLR 205
