Kenwood TR-2600A - Page 46

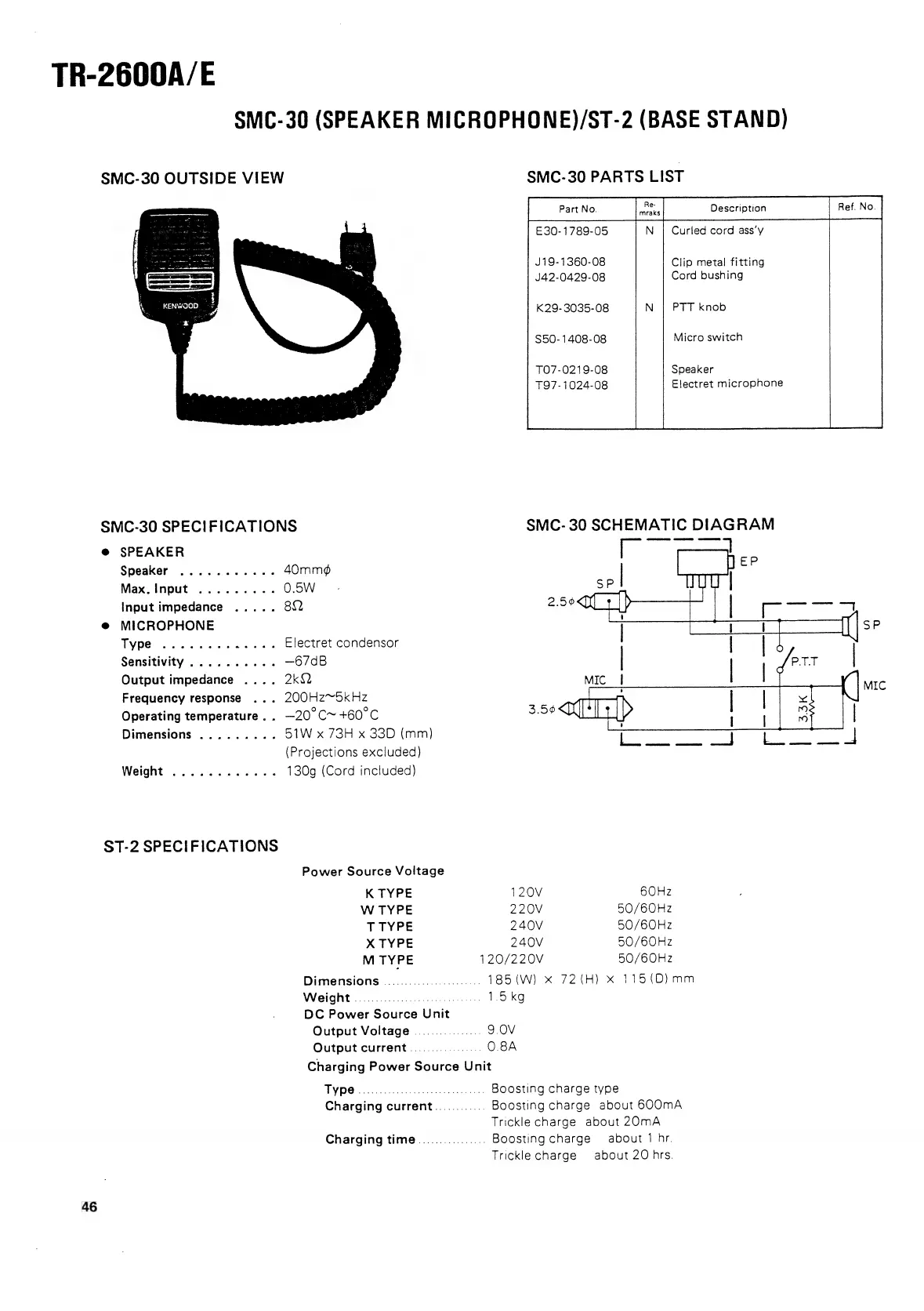

TR-2600A/E
SMC-30 (SPEAKER MICROPHONE)/ST-2 (BASE STAND)
SMC-30 OUTSIDE VIEW SMC-30 PARTS LIST
N | Curled cord ass‘y
E30-1789-05
J19-1360-08
J42-0429-08
Clip metal fitting
Cord bushing
, KENWOOD
She ere!
PTT knob
°.. K29-3035-08
$50- 1408-08 Micro switch
TO7-0219-08
T97-1024-08
Speaker
Electret microphone
SMC-30 SPECIFICATIONS SMC- 30 SCHEMATIC DIAGRAM
@ SPEAKER
Speaker ..........-- 40mm@
Max. Input ......... 0.5W
Input impedance ..... B82
@ MICROPHONE
TVG) Sox bah erin aes Electret condensor
Sensitivity .......... —67dB
Output impedance .... 2k{2
Frequency response ... 200HZ~SkHz
Operating temperature... —20 C~ +60°C
Dimensions ......... BIW x 73H x 33D (mm)
(Projections excluded)
Weight ...........2. 130g (Cord included)
ST-2 SPECIFICATIONS
Power Source Voltage
K TYPE 120V 6OHz
W TYPE 220V 50/60Hz
T TYPE 240V 50/60Hz
X TYPE 240V 50/60Hz
M TYPE TZ0/Z220V 50/60Hz
Dimensions ....................... 185 (W) x 72(H) x 115(0)mm
WY GIG Grsacdcecnssmnseantoonrass 1B. KG
DC Power Source Unit
Output Voltage................ 9.OV
Output current................. O.8A
Charging Power Source Unit
TV 0624. 2.42, olor ae Boosting charge type
Charging current............ Boosting charge about 600mA
Trickle charge about 20mA
Charging time................ Boosting charge about 1 hr.
Trickle charge about 20 hrs.
46
