Lite-Touch™ Q COOKTOP
# 8 X 1/4" SCREW
# 6 X 1 1/4" S/S SCREW
MOUNTING BRACKET
COUNTER SURFACE

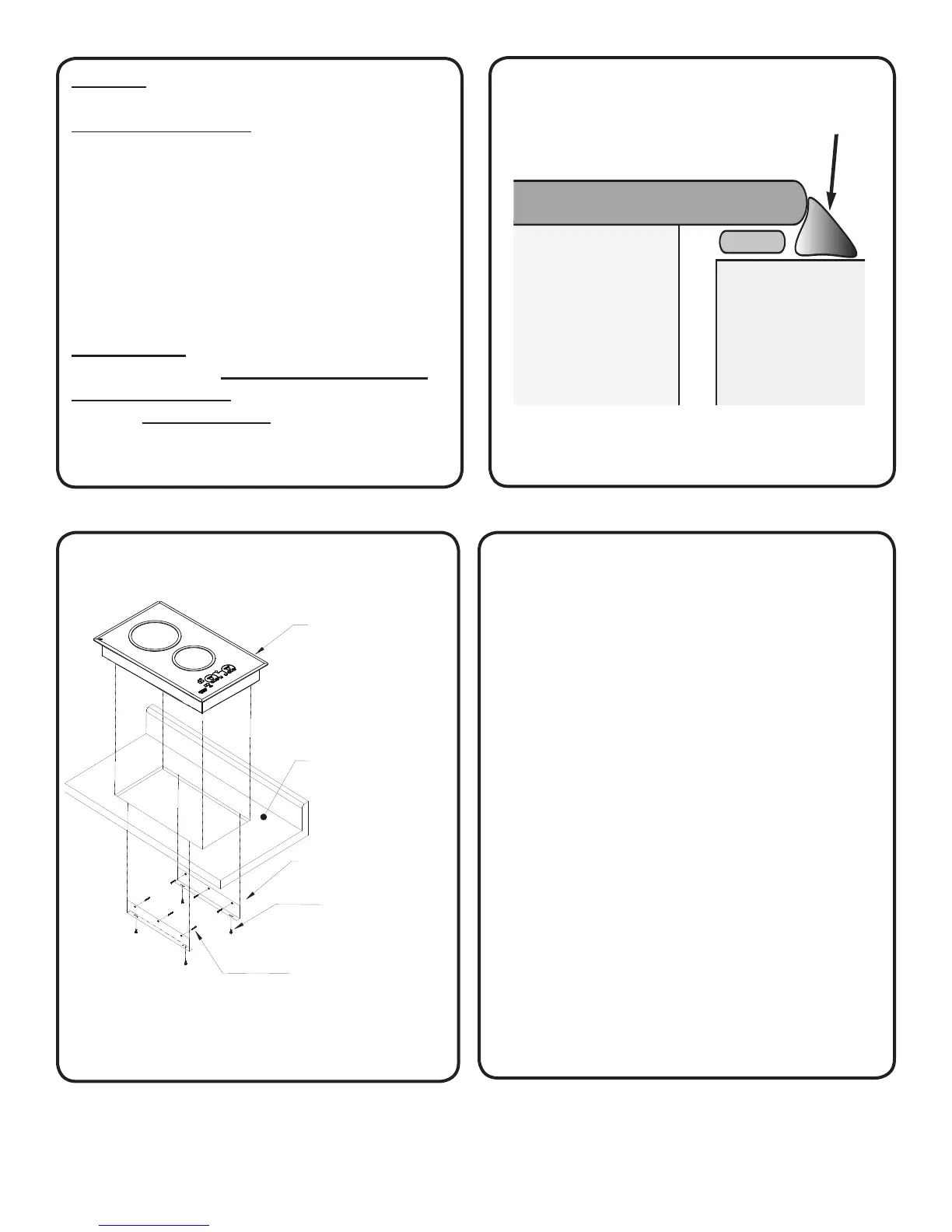

Fig. C
9
STEP #4
Installing the Cooktop
The cooktop is supplied with two metal
mounting brackets. These brackets are
designed to hold the cooktop rmly in place.
The cooktop does not have a metal frame
and should be sealed to the countertop. Use
a soft bedding compound that will
prevent damage if later removal for
service is necessary. We recommend a
nonadhesive type of sealant, such as
plumber’s putty, maximum compressed
thickness of 1/16”. Silicone may be used to
seal the glass edge only, if desired.
silicone to seal the
glass edge if desired
counter top
glass panel
putty strip
Attach the two mounting brackets as shown
(see Fig. C) to the inside vertical surface of the
cutout. The brackets are to be mounted on
opposing sides. Center the bracket in the
opening, ush with the countertop and
secure with #6 self-tapping screws that are
provided. Position the cooktop in the cutout
opening and press rmly on all sides to seal the
glass into the bedding compound. Secure the
cooktop to the brackets from underneath with
the small sheet metal screws that are supplied.
BE CAREFUL NOT TO
OVERTIGHTEN THE SCREWS.
.
