Kenyon Mediterranean - Page 10

Allow a 2” minimum clearance between the bottom of the metal pan of the cooktop and any
combustible surface located below, ie: the upper edge of a drawer installed below the
cooktop (see Fig. B on previous page). Failure to provide proper clearances and ventilation
mayresultinarehazard.

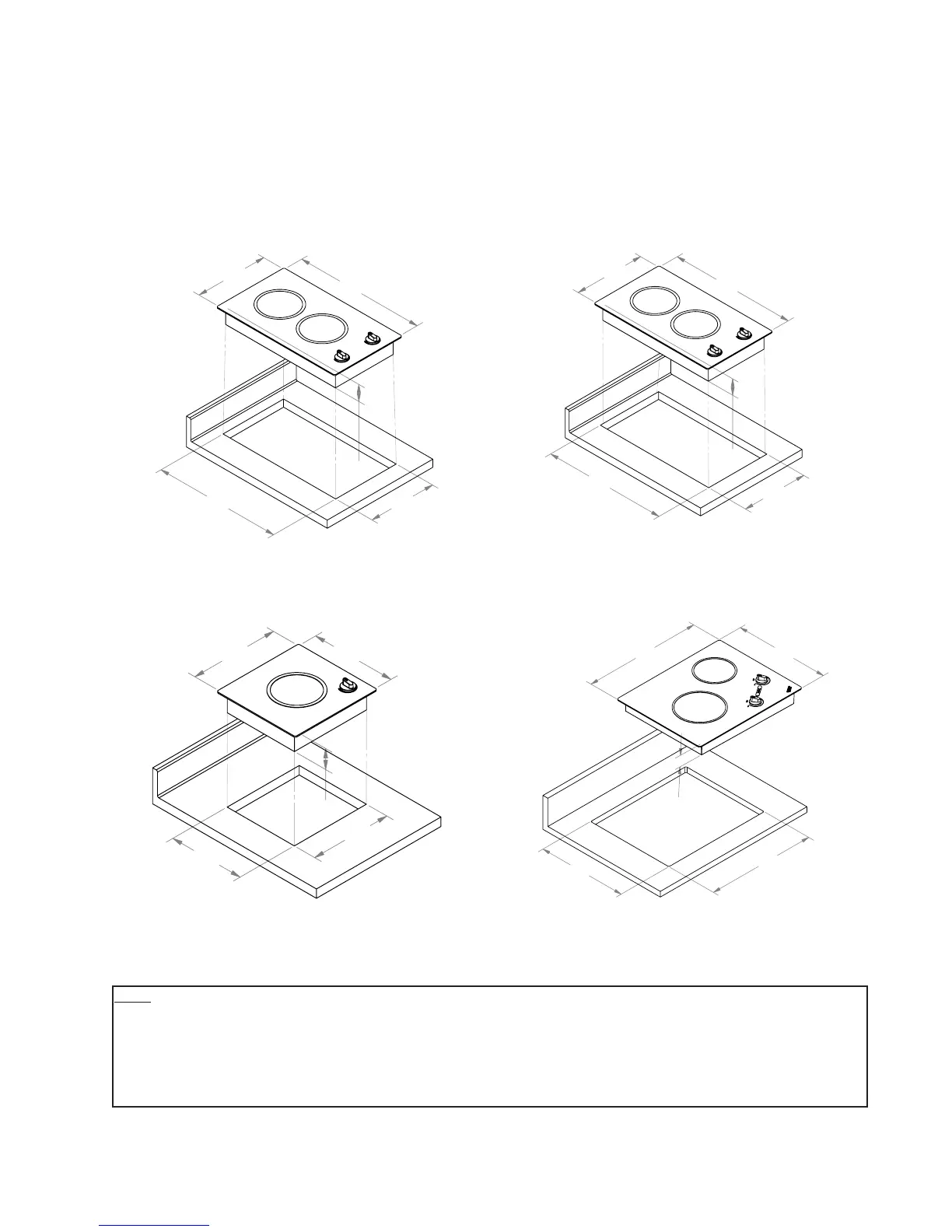

Cooktop dimensions and countertop cutout dimensions for each model are shown below:
Note:
When making countertop, radius the corner of the cutout (1/4” radius is typical). This will prevent
cracking of the countertop. Follow the countertop manufacturer’s instructions regarding the
minimum corner radius and reinforcement of corners.
12 " 12 1/2"
10 3/4"
11 1/2"
2 5/8"
Models: MED1, CAR1, ALP1, CORT1
23 1/4"
14 1/4"
2 5/8
21 3/4" 12 3/4"
Models: MED2, ALP2LG
12 "
21"
2 5/8"
10 3/4"
20"
Models: MED2TL, CAR2, ALP2SM, CORT2
4
19 1/2"
16"
17"21"
2 3/4"
Models: ARCTIC2, ANTARCTIC2
