SELENA Multifunctional LED Clock USER MANUAL V32D
KERA TECHNOLOGIES INC. 2013 www.ledclocks.com
20
Common
RESET
STOP / DN
START / UP
STANDARD OPTION

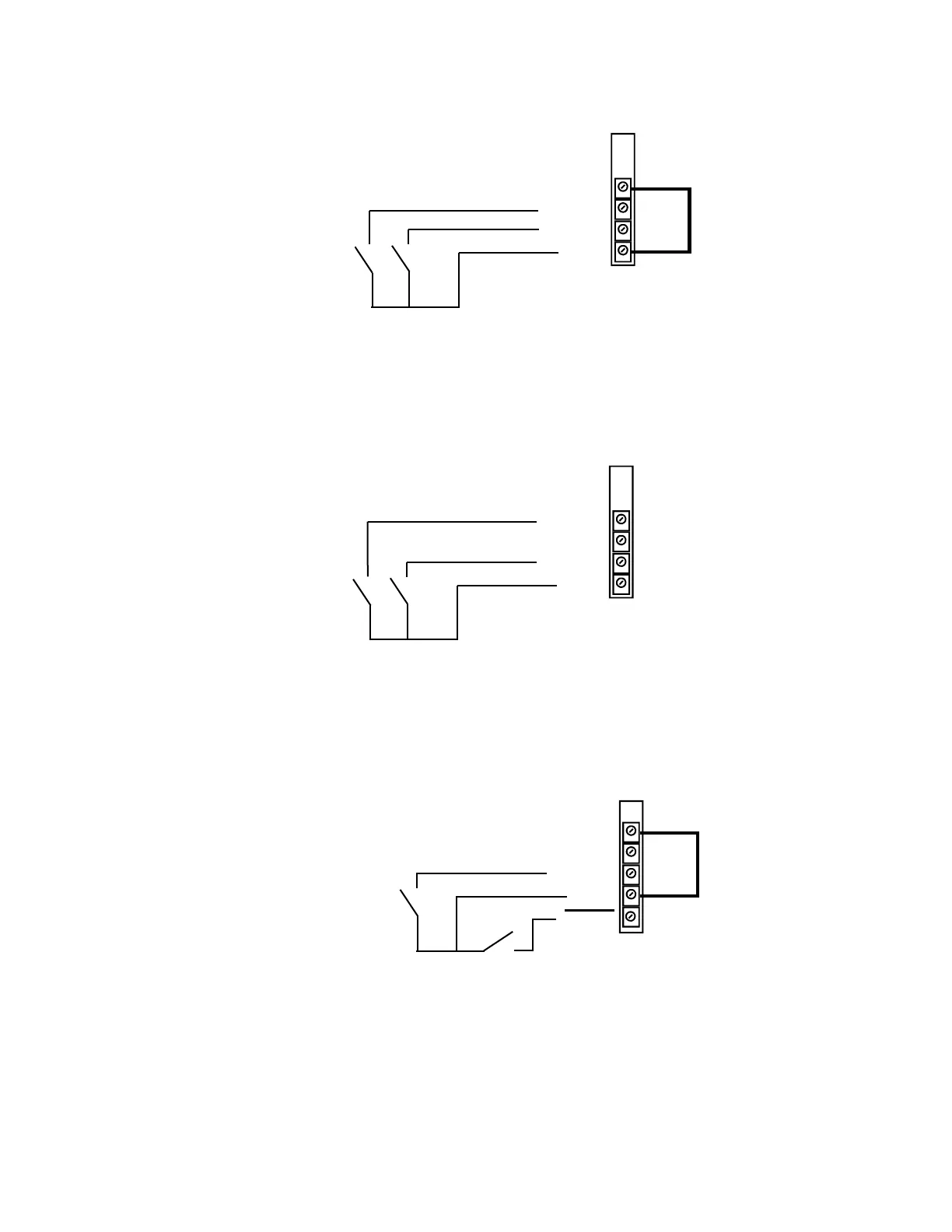

WIRING OF EXTERNAL DRY CONTACT SWITCHES FOR TIMER/COUNTER OPERATION
WITH THE STOP INPUT OPERATING AS THE TIMER / COUNTER ENABLE / DISABLE
( NORMALLY ENABLED )
OPEN = COUNT ENABLED
CLOSED = COUNT DISABLED
RESET
JUMPER
Common
RESET
STOP / DN
START / UP
SPECIAL OPTION
WIRING OF EXTERNAL DRY CONTACT SWITCHES FOR TIMER/COUNTER OPERATION
WITH THE STOP INPUT OPERATING AS THE TIMER / COUNTER ENABLE / DISABLE
( NORMALLY DISABLED )
CLOSED = COUNT ENABLED
OPEN = COUNT DISABLED
RESET
JUMPER
STOP / DN
Common
RESET
STOP / DN
START / UP
STANDARD OPTION
WIRING OF EXTERNAL DRY CONTACT SWITCHES FOR TIMER/COUNTER OPERATION
WITH THE START INPUT OPERATING AS THE TIMER / COUNTER START / STOP ( Fn 69 )
ALTERNATE START / STOP ACTION
RESET
