SEPARATE
AUDIO
OUTPUTS
MIDI
ооо
000
Look
о
о
©
N
om
SEQUENCER
PERSONAL
MACHINE
COMPUTER
PEDALBOARD

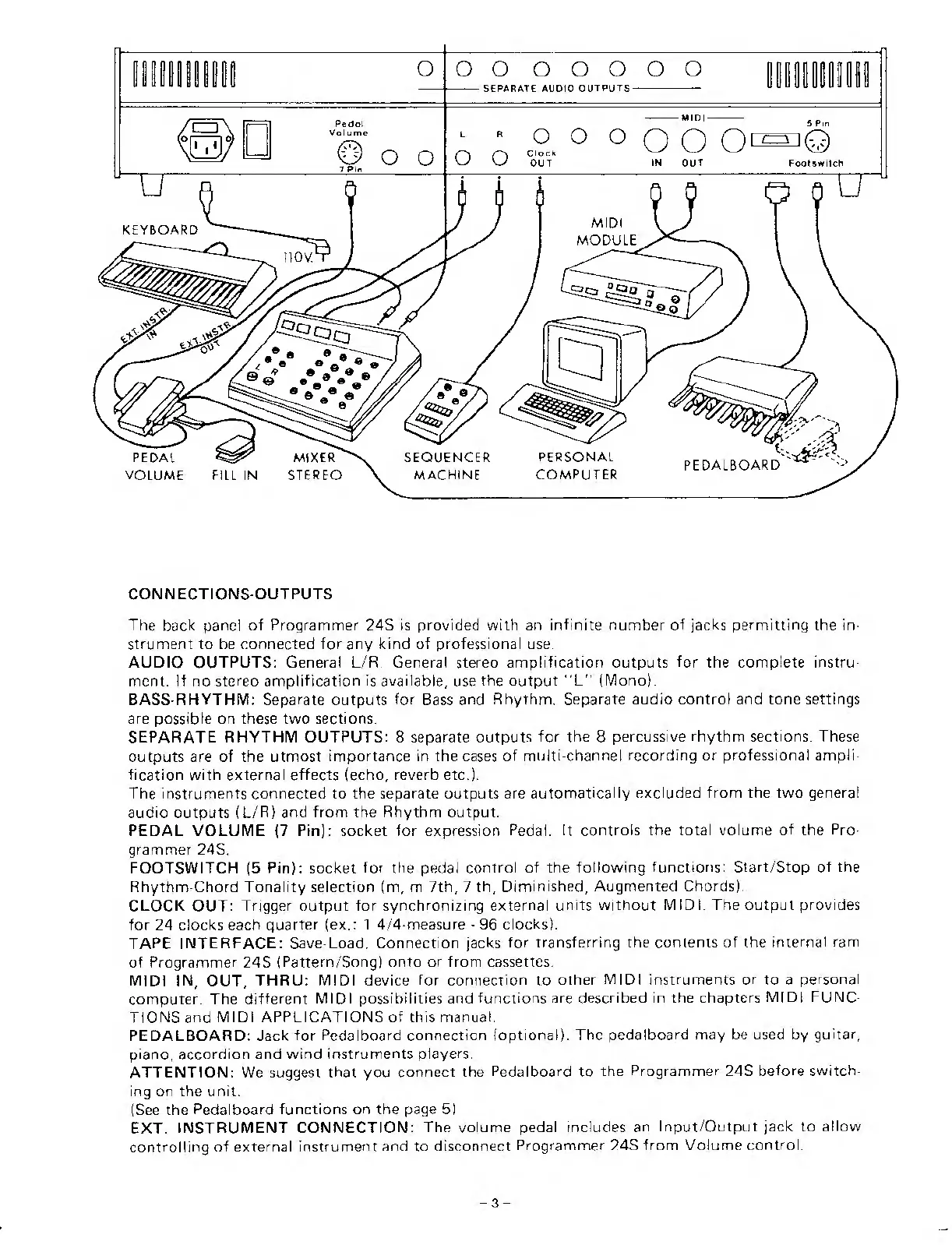

CONNECTIONS-OUTPUTS
The
back
panel
of
Programmer
24S
is
provided
with
an
infinite
number
of
jacks
permitting
the
in-
strument
to
be
connected
for
any
kind
of
professional
use
AUDIO
OUTPUTS:
General
L/R.
General
stereo
amplification
outputs
for
the
complete
instru-
ment.
If
no
stereo
amplification
is
available,
use
the
output
“L”
(Мопо)
BASS-RHYTHM:
Separate
outputs
for
Bass
and
Rhythm.
Separate
audio
control
and
tone
settings
are
possible
on
these
two
sections.
SEPARATE
RHYTHM
OUTPUTS:
8
separate
outputs
for
the
8
percussive
rhythm
sections.
These
outputs
are
of
the
utmost
importance
in
the
cases
of
multi-channel
recording
or
professional
ampli
fication
with
external
effects
(echo,
reverb
etc.).
The
instruments
connected
to
the
separate
outputs
are
automatically
excluded
from
the
two
generat
audio
outputs
(L/R)
and
from
the
Rhythm
output.
PEDAL
VOLUME
(7
Pin):
socket
for
expression
Pedal.
[t
controls
the
total
volume
of
the
Pro-
grammer
245,
FOOTSWITCH
(5
Pin):
socket
for
the
реда!
control
of
the
following
functions:
Start/Stop
of
the
Rhythm-Chord
Tonality
selection
(m,
m
7th,
7
th,
Diminished,
Augmented
Chords)
CLOCK
OUT:
Trigger
output
for
synchronizing
external
units
without
MIDI.
The
output
provides
for
24
clocks
each
quarter
(ех.:
1
4/4-measure
-
96
clocks}.
TAPE
INTERFACE:
Save-Load.
Connection
jacks
for
transferring
the
contents
of
the
internal
ram
of
Programmer
245
(Pattern/Song)
onto
or
from
cassettes.
MIDI
ІМ,
OUT,
THRU:
MIDI
device
for
connection
to
other
MIDI
instruments
or
to
a
personal
computer.
The
different
MIDI
possibilities
and
functions
are
described
in
the
chapters
MIDI
FUNC-
TIONS
and
MIDI
APPLICATIONS
of
this
manuat
PEDALBOARD:
Jack
for
Pedalboard connection
(орпопађ.
The
pedalboard
may
be
used
by
guitar,
piano,
accordion
and
wind
instruments
players
ATTENTION:
We
suggest
that
you
connect
the
Pedalboard
to
the
Programmer
245
before
switch-
ing
on
the
unit.
(See
the
Pedalboard
functions
on
the
page
5)
EXT.
INSTRUMENT
CONNECTION:
The
volume
pedal
includes
an
Input/Output
jack
to
allow
controlling
of
external
instrument
and
to
disconnect
Programmer
245
from
Volume
control.
