ENGLISH
MODELS AND CHARACTERISTICS
900CT-101 Control unit for 1 230 Vac motor sliding or overhead motor, set up for radio card.
TECHNICAL DATA CT-101
POWER SUPPLY 230Vac/50Hz
MAX. MOTOR LOAD 1200 W
ACCESSORIES POWER SUPPLY OUTPUT 24Vac 400mA
WORKING TIME 0-120sec
PAUSE TIME 0-120sec
OPERATING TEMPERATURE -20°C/+70°C

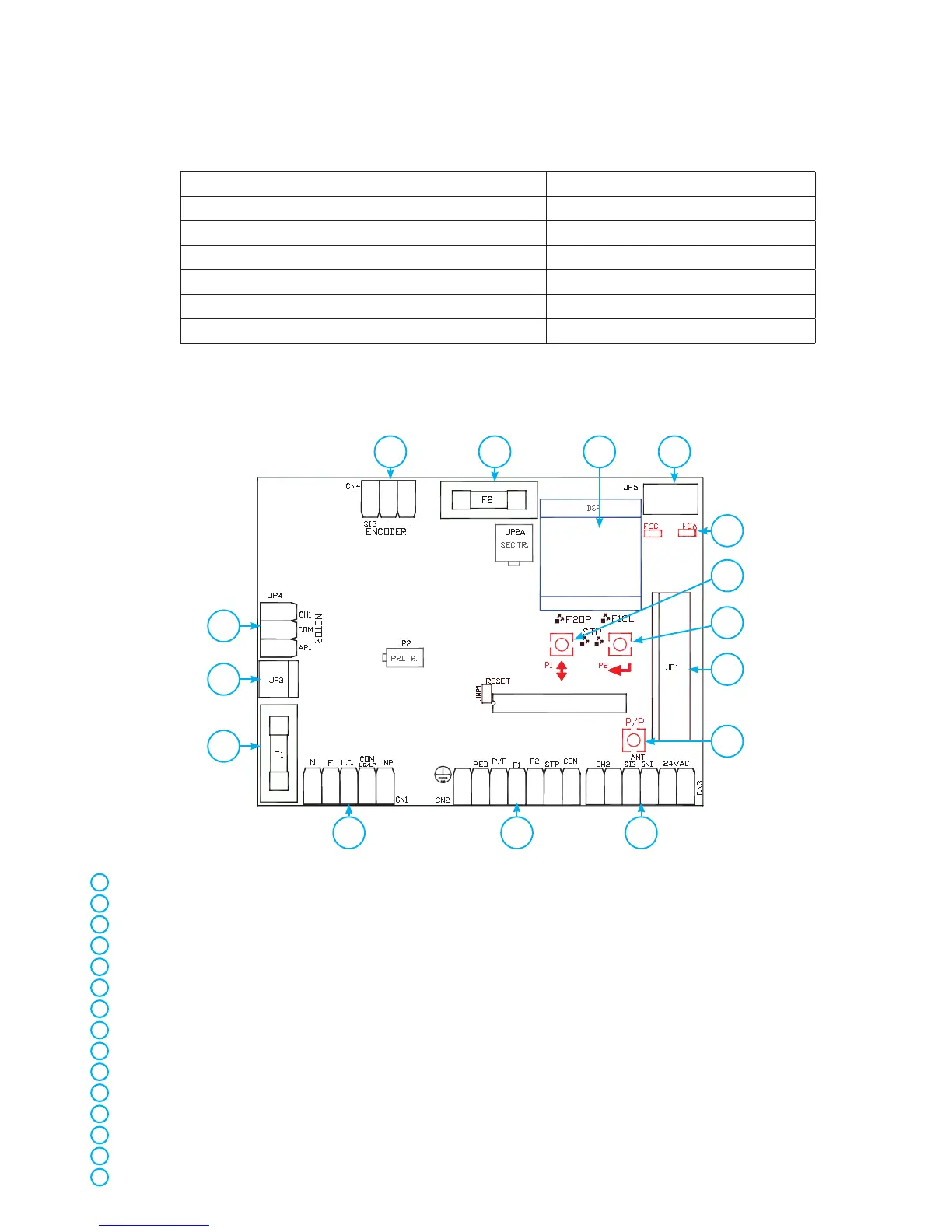

DESCRIPTION
DESCRIPTION
CN1 230Vac power supply terminal board, Àasher and courtesy light
CN2 Controls and safeties connection terminal board
CN3 Terminal board for connection of 24Vac accessories second radio channel and antenna
CN4 encoder
JP1 Connector for snap-in radio receiving card
JP3 Connector for capacitor
JP4 Motor connection terminal board
JP5 Limit switch connection terminal board
LCD Display for signalling functions and safety inputs
ENTER button for scrolling programming functions
UP/DOWN button for function settings (see table)
P/P Step/step button
F1 line protection 230Vac 10A delayed
F2 accessory line protection 230Vac 315mA delayed
FCC FCA Led limit switch
1 2 3 4 5
9
2
8
7
1
13
14
6
3
4
--
. .
6 7 8 9 10 11 12 13 14 15 16 17 18
22 23 24
21
20
19
25 26 27
5
12
11
10
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
15
