23
EN
4.4 - Learning a transmitter
A transmitter can be “learned” via the specic programming menu or by remote memorisation, using a previously memorised transmitter.
UP
SBS
DOWN
MENU

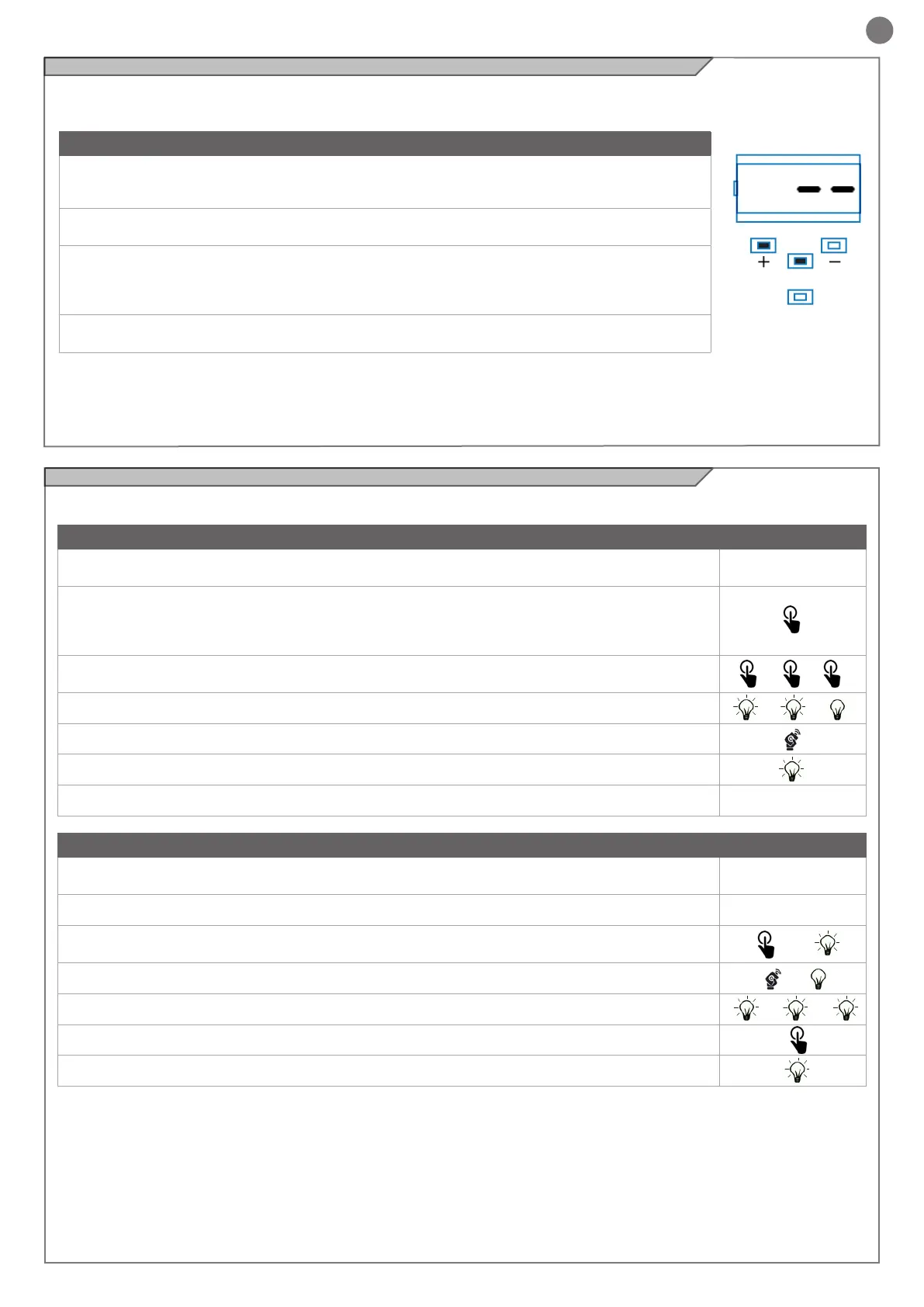

4.3 - Autolearning of the travel stroke
The rst time the control unit is powered up, an autolearning proce-
dure must be carried out to acquire fundamental parameters such
as the travel stroke length and deceleration points.
AUTOLEARNING OF THE TRAVEL STROKE AND MAIN PARAMETERS
The decelerations will be those set in the menu, with the same percentage during both opening and closing.
1. Release the gate or door, move it onto the central position and lock it in place again.
2. Hold down the + and MENU buttons SIMULTANEOUSLY for more than 5 seconds, until the screen shows
LOP and get ready to press the DOWN key (see illustration) if necessary.
3. If the rst operation is NOT opening of the gate, press the DOWN key to stop the autolearning.
Then press SBS to restart the acquisition: the gate starts moving again, in the right direction. The motor
opens the gate at low speed to the opening limit switch. On reaching the opening limit switch, the gate re-
starts in the closing direction at low speed until it reaches the closing limit switch, displaying LCL.
4. Perform a number of opening, closing and sudden stop commands to ensure that the system is solid with
no assembly defects.
All the main parameters are set with the default settings by the control unit. To customise the installation, proceed as described in point 4.5
below.
MEMORISING A REMOTE CONTROL
If you are in programming mode exit pressing the MENU button until -- appears. Press the DOWN (RADIO)
button for more than 2 seconds. Until the display shows the word “rad” (radio), then release the button
1. Press and release the DOWN (RADIO) button a number of times equal to the number of the output to be acti-
vated: once for output STEP BY STEP, twice for output PEDESTRIAN, three times for output ONLY OPEN, four
times for output LIGHT ON/OFF, ve times for output PRESET (button 1 = output 1, button 2 = output 2, button
3 = output 3, button 4 = output 4)
2. The KEY LED will ash a number of times equal to the number of the output selected, with 1 second pauses
between ashes
+ +
3. Press the key of the remote control to be memorised within 7 seconds, holding it down for at least 2 seconds
+1s +1s
4. If the memorisation has been successful, the KEY LED will give one long ash
2s
5. To memorise another remote control on the same output, repeat point 3
3s
N.B If no commands are given for 7 seconds, the receiver automatically quits the programming mode
DELETING A REMOTE CONTROL
If you are in programming mode exit pressing the MENU button until -- appears. Press the DOWN (RADIO)
button for more than 2 seconds. Until the display shows the word “rad” (radio), then release the button
1. Press the DOWN (RADIO) button until the LED lights up (about 3 seconds)
2. Press the key of the remote control to be deleted within 7 seconds, holding it down until the KEY LED goes
out. Release the remote control key
(>3s)->
3. About 1 second after the key is released, the KEY LED starts to ash
->
4. Conrm the deletion by pressing the DOWN (RADIO) button
0,5s 0,5s
5. If the deletion has been successful, KEY LED will give one long ash
N.B If no commands are given for 7 seconds, the receiver automatically quits the programming mode
3s
