50

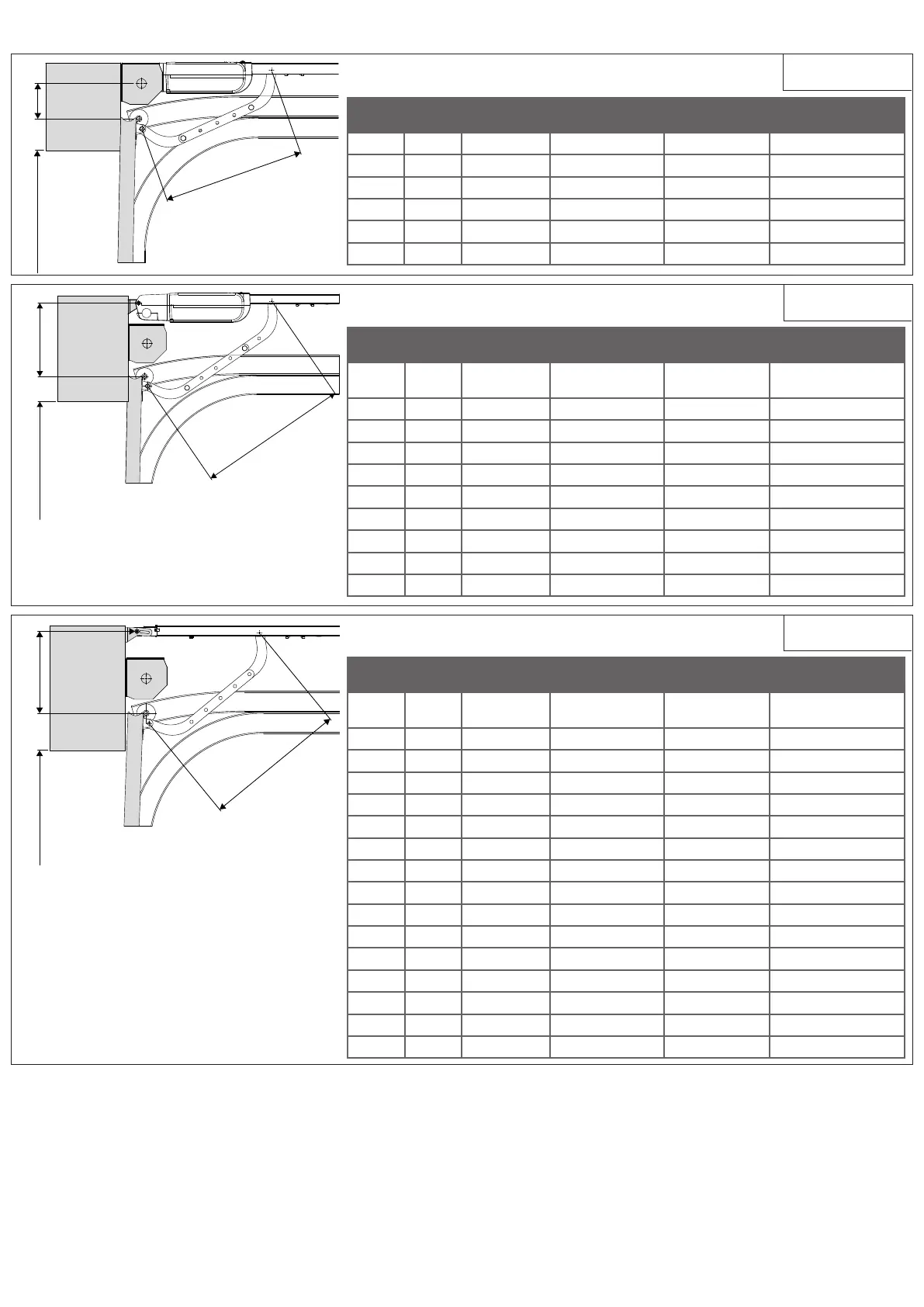

EN - The passage clearance may vary with respect to the dimensions shown in the tables according to the different geometry and curvature
values of the sectional garage door rail proles
TAB. 1B
TAB. 1A
B (mm) L (mm) Arm Type
Clear passage
H-10 cm (m)
Door Height
H (m)
Note
130 380 L2 2,5 2,6
door springs in
the back
150 380 L2 2,5 2,6
170 430 L3 2,5 2,6
190 430 L3 2,5 2,6
210 430 L3 2,5 2,6
230 480 L4 2,5 2,6
250 480 L4 2,5 2,6
270 530 L5 2,5 2,6
290 530 L5 2,5 2,6
310 530 L5 2,5 2,6
B
H
L
B (mm) L (mm) Arm Type
Clear passage
H-10 cm [m]
Door Height
H [m]
Note
90 380 L2 2,5 2,6
110 380 L2 2,5 2,6
130 430 L3 2,5 2,6
150 430 L3 2,5 2,6
170 430 L3 2,5 2,6
190 430 L3 2,5 2,6
B
H
L
B (mm) L (mm) Arm Type
Clear passage
H-10 cm (m)
Door Height
H (m)
Note
110 300 L1 2,5 2,6
door springs in
the back
130 300 L1 2,5 2,6
150 300 L1 2,5 2,6
170 300 L1 2,5 2,6
190 380 L2 2,5 2,6
210 380 L2 2,5 2,6
230 380 L2 2,5 2,6
250 430 L3 2,4 2,5
270 430 L3 2,4 2,5
290 480 L4 2,3 2,5
310 480 L4 2,4 2,5
330 530 L5 2,3 2,5
350 580 L6 2,2 2,4
370 580 L6 2,2 2,4
390 630 L7 2,2 2,4
410 630 L7 2,2 2,4
B
H
L
TAB. 1C
