UNIT BOTTOM
Dipswitches

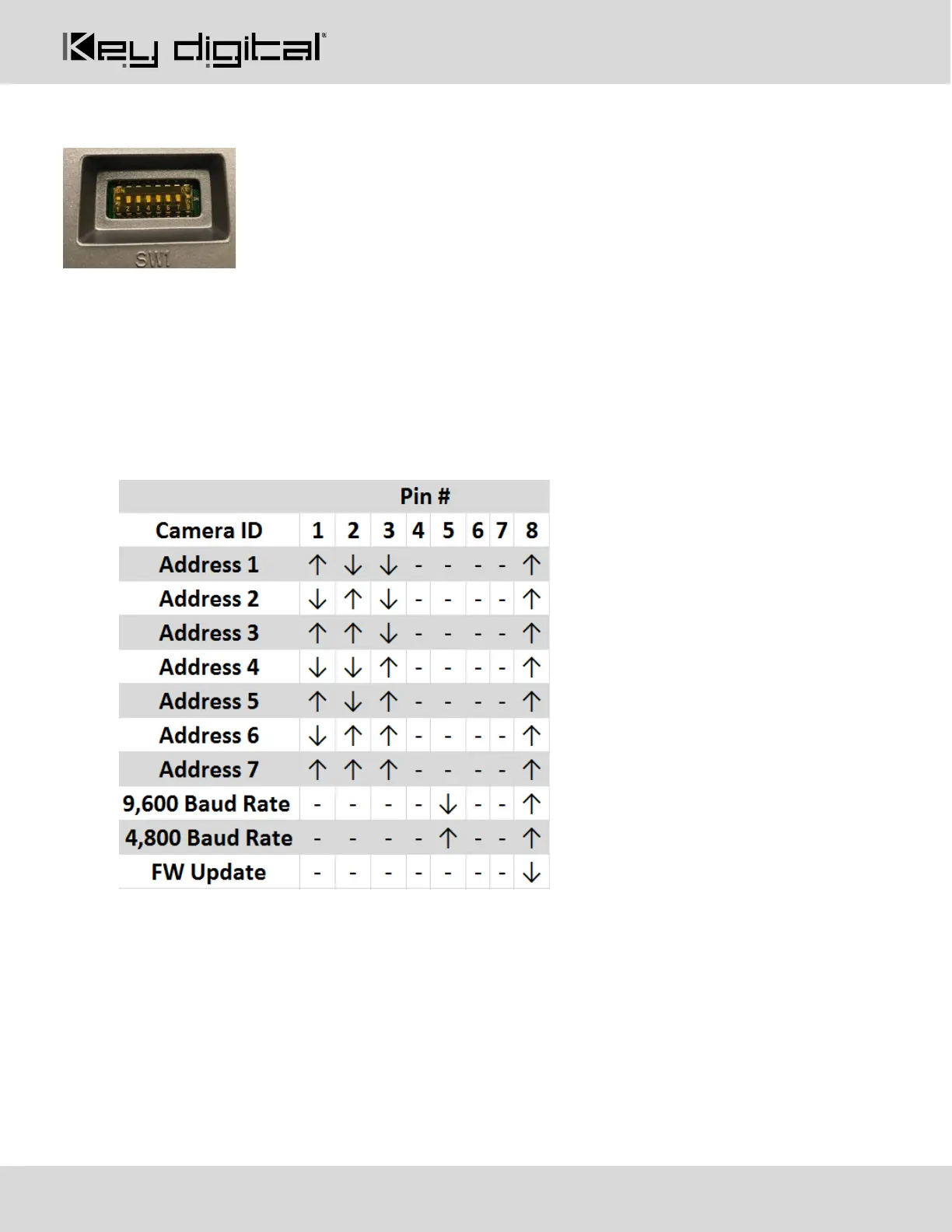

• 8 dipswitches
• Used for setting unit address, RS-232 baud rate, and loading firmware
• Default position = Up, Down, Down, Down, Down, Down, Down, Up
• Enables up to 7 unique unit addresses for discrete RS-232 and/or VISCA control
• Note: Changing dipswitch settings must be done when KD-CAMUSB's power is OFF. Then, power ON
unit for changes to apply.
