Audio Ports Specifications
› Each audio output drives audio signals up to 2VRMS with a sampling rate of 192KHz
› There are no volume or tone control features
› There are no DSP features
Audio Input Signal Format Audio L/R Output Digital Audio Output (Optical)
2ch PCM Pass-Through Pass-Though
Multi-Channel PCM Front L/R Pass-Through MUTE
Dolby DTS MUTE Pass-Though
HD Audio MUTE MUTE

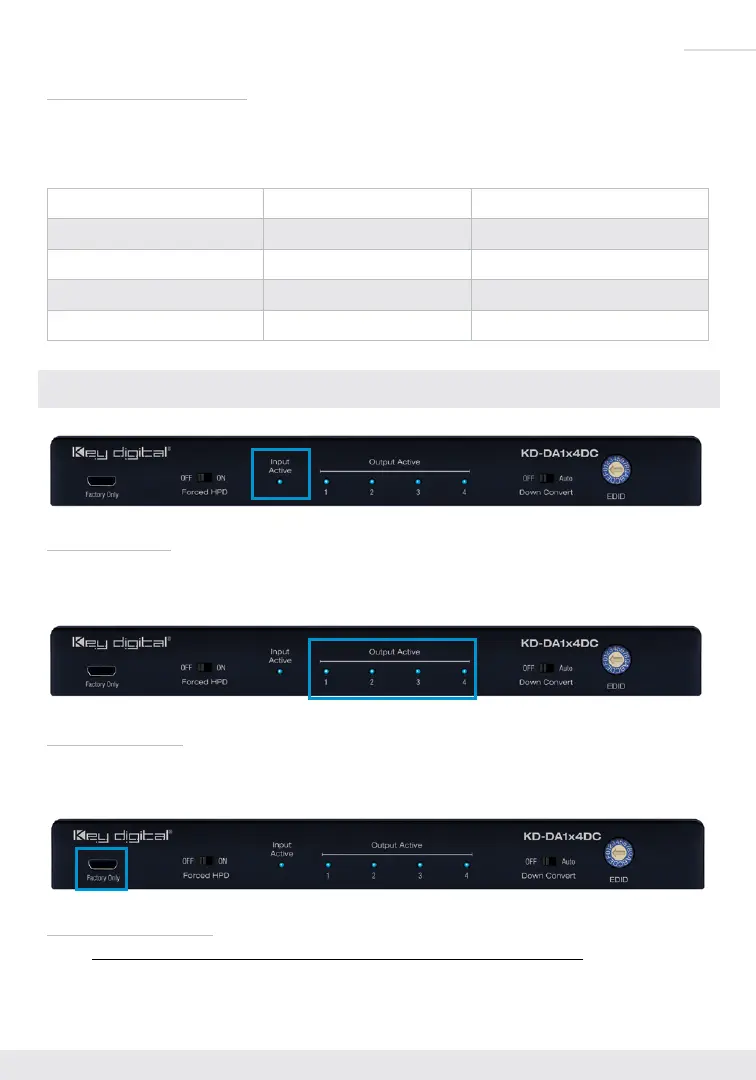

FRONT PANEL
Input Active LED
» 1 blue LED illuminates solid to indicate an active incoming HDMI signal
» LED blinks steadily if there is no active incoming signal.
Output Active LED
» 2 blue LEDs illuminate solid when Hot Plug Detection (HPD) is received from the connected display/
output device and there is an active incoming HDMI signal from video source.
Service (Factory) USB
» This port is for factory servicing only. Does not have standard USB functionality.
