Keyscan Technical Guide (PC109x - 04.12)

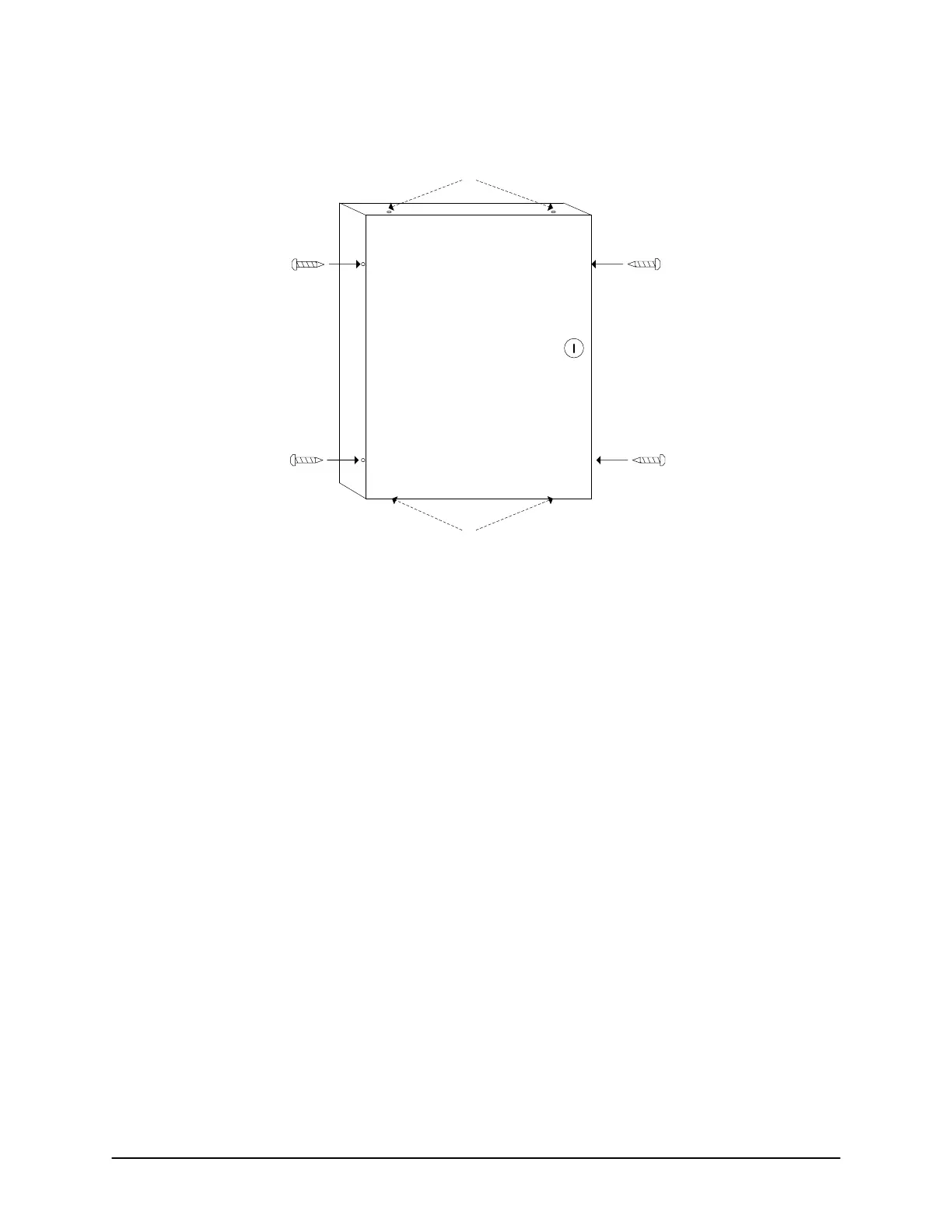

Figure 15 – Securing the Enclosure Cover

Front View

of Enclosure

with Cover

3/8“ x 4

Cover

Locking

Screw

Cover

Locking

Screw

Cover

Locking

Screw

Cover

Locking

Screw

Optional locations for

cover locking screws

Optional locations for

cover locking screws

KI-00118E-07-11

Table of Contents4
List of Figures5
List of Tables9
Foreword11
Installation Requirements12
Table 1 - Cable Requirements13
Figure 1 - Grounding Access Control Units and Cables with CB-485S15
Figure 2 - Grounding Access Control Units and Cables with CPB-10-2S16
General Installation Guidelines17
Mounting - Enclosure & Components19
Figure 3 - Mounting the Metal Enclosure20
Figure 4 - Mount and Fasten Pc109X Control Board to 3/8" Male/Female Standoffs21
Table 2 - Battery Duration Times22
Figure 5 - Plastic Stand off22
Figure 6 - Mounting Power Supplies23
Figure 7 - Communication Cable - Grounding the Shield24
Figure 8 - CA250 with Board Mounting Positions25
Figure 9 - CA4500 with Board Mounting Positions26
Figure 10 - CA8500 with Board Mounting Positions26
Figure 11 - EC1500 with Board Mounting Positions27
Figure 12 - EC2500 with Board Mounting Positions27
Figure 13 - Enclosure Tamper Switch Connected to TB3 Terminal28
Figure 14 - Enclosure Ground Strap Connection29
Figure 15 - Securing the Enclosure Cover30
Mounting - Readers & Door Hardware31
Figure 16 - Typical Door Layout31
Figure 17 - Typical Door Strike Connection32
Figure 18 - Typical Magnetic Lock Connection32
Figure 19 - Door Contacts, Exit Buttons, Pirs, & Auxiliary Inputs33
Figure 20 - Typical Door Reader Connection34
Table 3 - OCB-8 Specifications35
Terminate Wiring at the ACU35
Figure 21 - Lock State - Fail Safe Device37
Figure 22 - Lock State - Fail Secure Device37
Figure 23 - Terminate Lock Wiring CA250B38
Figure 24 - Terminate Lock Wiring CA4500B39
Figure 25 - Terminate Lock Wiring CA8500B40
Figure 26 - Terminate Input Wiring - Door Inputs (Contacts)42
Figure 27 - Terminate Input Wiring - RTE Push Button43
Figure 28 - Terminate Input Wiring - RTE PIR Motion Sensor44
Figure 29 - Terminate Input Wiring RTE - PIR & Push Button45
Figure 30 - Terminate Input Wiring - AI/SI Inputs46
Table 4 - OCB-8 to EC1500B Ribbon Cable Connections47
Table 5 - OCB-8 to EC2500B Ribbon Cable Connections47
Figure 31 - Terminate Floor Wiring EC1500B48
Figure 32 - Terminate Floor Wiring EC2500B49
Figure 33 - Terminate Floor Input Wiring EC1500B50
Figure 34 - Terminate Floor Input Wiring EC2500B51
Figure 35 - Terminate Reader Wiring52
Figure 36 - Terminate Auxiliary Outputs CA250B53
Figure 37 - Terminate Auxiliary Outputs CA4500B54
Figure 38 - Terminate Auxiliary Output CA8500B55
Figure 39 - System Configuration Jumper J1656
Jumper Settings56
Table 6 - System Jumper J16 Settings57
Figure 40 - System Configuration J16 Location58
Table 7 - System Mode Jumper J1759
Figure 41 - System Mode Jumper J1759
Figure 42 - System Mode J17 Location59
Table 8 - Reader Configuration Jumper J360
Figure 43 - Reader Configuration Jumper J361
Figure 44 - Reader Configuration J3 / Wiegand Bit Counter Leds65
Table 9 - J18 Jumper Settings68
Figure 45 - Address/External Jumper J1868
Figure 46 -Address /External Jumper J18 Location68
Figure 47 - Restore Default Settings (Clear Memory) J1 Location70
Communication71
Table 10 - CPB-10-2/CPB-10 Control Board Compatibility72
Table 11 - Single ACU Communication72
Table 12 - Multiple ACU Communication73
Figure 48 - Example of CB-485 Inter-Building Communication74
Figure 49 - RS-232 Data Cable Connections74
Figure 50 - Single ACU Communication - Direct Serial76
Figure 51 - Single ACU Communication - Serial CB-48577
Figure 52 - Single ACU Communication - Serial CPB-10-278
Figure 53 - Single ACU Communication - USB Adaptor79
Figure 54 - Single ACU Communication - USB Adaptor/Cb-485 (RS-232)80
Figure 55 - Single ACU Communication - USB Adaptor/Cb-485 (RS485)81
Figure 56 - Single ACU Communication - USB Adaptor/Cpb-10-2 (RS232)82
Figure 57 - Single ACU Communication - NETCOM2P or NETCOM6P/CB-48583
Figure 58 - Single ACU Communication - NETCOM2P or NETCOM6P/ACU84
Figure 59 - Single ACU Communication - NETCOM2 or NETCOM6/CB-48585
Figure 60 - Single ACU Communication - NETCOM2 or NETCOM686
Figure 61 - Single ACU Communication - NETCOM2 or NETCOM6/CPB-10-287
Figure 62 - Single ACU Communication NETCOM2WH or NETCOM6WH/CB-48588
Figure 63 - Single ACU Communication - NETCOM2WH or NETCOM6WH/CPB-10-289
Figure 64 - Single ACU Communication - NETCOM2WH or Netcom6Wh/Control Board90
Figure 65 - Single ACU Communication - CB-485M/MC33H91
Figure 66 - Single ACU Communication - MC9600/MC33H92
Figure 67 - Single ACU Communication - MC9600/MC33H/CPB-10-293
Figure 68 - Multiple ACU Communication - CB-48594
Figure 69 - Multiple ACU Communication - CPB-10-295
Figure 70 - Multiple ACU Communication - USB Adaptor/Cb-485 (RS-232)96
Figure 71 - Multiple ACU Communication - USB Adaptor/Cb-485 (RS-485)97
Figure 72 - Multiple ACU Communication - USB Adaptor/Cpb-10-298
Figure 73 - Multiple ACU Communication - NETCOM2P or NETCOM6P/CB-48599
Figure 74 - Multiple ACU Communication - NETCOM2 or NETCOM6/CB-485100
Figure 75 - Multiple ACU Communication - NETCOM2 or NETCOM6/CPB-10-2101
Figure 76 - Multiple ACU Communication - NETCOM2P or NETCOM6P/CB-485 (1 to 1)102
Figure 77 - Multiple ACU Communication - NETCOM2 or NETCOM6 (1 Per ACU)103
Figure 78 - Multiple ACU Communication - NETCOM2WH or NETCOM6WH/CB-485S104
Figure 79 - Multiple ACU Communication - NETCOM2WH or NETCOM6WH/CPB-10-2S105
Figure 80 - Multiple ACU Communication - NETCOM2WH or NETCOM6WH / 1 Per ACU106
Figure 81 - Multiple ACU Communication - CB-485M/CB-485/MC33H107
Figure 82 - Multiple ACU Communication - MC9600/CPB-10-2/MC33H108
Power-Up & Test Voltages110
Table 13 - ACU Supply - Current Calculation Table111
Table 14 - AUX RDR Supply - Current Calculation Table111
Figure 83 - Power Supply Wiring113
Table 15 - Control Board Test Points - Voltages114
Figure 84 - Control Board Test Points - Voltages115
Table 16 - Communication Voltage Test Points116
Figure 85 - Control Board Communication Test Points117
Figure 86 - CB-485 Communication Test Points117
Figure 87 - CPB-10-2 Communication Test Points118
Communication Diagnostics119
Table 17 - Communication Status Leds119
Figure 88 - Communication Leds - CA & EC Control Boards121
Figure 89 - Communication Leds on CB-485121
Table 18 - System Status LED122
Figure 90 - Communication Leds on CPB-10-2122
Figure 91 - Location of System Status LED122
Appendix A - Keyscan / HID Readers123
Table 19 - Keyscan & HID Reader Power Specifications123
Figure 92 - Keyscan K-PROX2 (125 Khz HID Compatible)125
Figure 93 - Keyscan K-VAN Proximity Reader (125 Khz HID Compatible)126
Figure 94 - Keyscan K-KPR Keypad / Proximity Reader (125 Khz HID Compatible)127
Figure 95 - Keyscan K-SMART Reader128
Figure 96 - Keyscan K-KPR SM129
Figure 97 - HID-5395 Wiring130
Figure 98 - HID 5365 / 6005 Wiring131
Figure 99 - HID 5355 Wiring132
Figure 100 - HID 5375 Wiring133
Figure 101 - HID 5355KP Wiring134
Figure 102 - HID Iclass KEYR10135
Figure 103 - HID Iclass KEYR40136
Figure 104 - HID Iclass KEYRW400137
Figure 105 - HID Iclass KEYRK40138
Appendix B - Indala Readers139
Table 20 - Indala Reader Power Specifications139
Figure 106 - Indala PX 603 and PX 605 Wiring140
Figure 107 - Indala PX610 Wiring141
Figure 108 - Indala PX 620 Wiring142
Figure 109 - Indala PXK 501 Wiring143
Appendix C - WSSKP-1 Keypad144
Table 21 - Keypad Power Specifications144
Figure 110 - WSSKP-1 Keypad Connection145
Figure 111 - WSSKP-1 Keypad/Reader Combination Connections146
Appendix D - K-RX / K-TX2147
Table 22 - K-RX (RF) Receiver & K-TX2 Series Transmitter Specifications147
Figure 112 - K-RX Receiver Overview148
Table 23 - K-RX LED & Beeper Indicators149
Table 24 - K-RX Button & Channel Selection149
Table 25 - K-RX Receiver Connections149
Figure 113 - K-RX Single Reader Connections - Channel a to ACU150
Figure 114 - K-RX Single Reader Connections - Channel B to ACU151
Figure 115 - K-RX Dual Reader Connections - Channels a & B to ACU152
Figure 116 - K-TX2 Series Transmitter153
Appendix E - Keyscan Commex154
Table 26 - Commex Power Specifications154
Table 27 - Commex Communication and Cables154
Figure 117 - Commex Overview155
Figure 118 - Commex Connections156
Appendix F -WIEEX2 & CWIEEX2157
Table 28 - WIEEX2 & CWIEEX2157
Table 29 - WIEEX2/CWIEEX2 Power Requirements157
Table 30 - WIEEX2/CWIEEX2 Cables and Distances158
Figure 119 - Wiegand Extender Overview159
Figure 120 - WIEEX2 RS485 Connections - (Firmware 6.00 or Higher)160
Figure 121 - CWIEEX2 Coaxial Connections - (Firmware Version 6.00 or Higher)161
Figure 122 - WIEEX2 to OCB-8 Cable Connection162
Table 32 - Accessibility HC Relay/ Door Assignment163
Appendix G - Accessibility HC Relay163
Table 31 - OCB8 Power Specifications163
Figure 123 - Accessibility HC Output Relay CA250B/OCB-8 Connections164
Figure 124 - Accessibility HC Output Relay CA4500B/OCB-8 Connections165
Figure 125 - Accessibility HC Output Relay CA8500B/OCB-8 Connections165
Table 33 - OCB-8 Power Specifications166
Table 34 - Pre-Alert Relay to Door Assignments166
Appendix H - Pre-Alert Relay166
Figure 126 - Pre-Alert Relay CA250B/OCB-8 Connections167
Figure 127 - Pre-Alert Relay CA4500B/OCB-8 Connections168
Figure 128 - Pre-Alert Relay CA8500B/OCB-8 Connections169
Table 35 - System Jumper J16 - Reverse Network Settings170
Appendix I - Reverse Network170
Figure 129 - Jumper J16 for Reverse Network170
Figure 130 - System Settings Jumper J16 Location for Reverse Network171
CA250B Quick Reference175
Figure 131 - CA250B Control Board175
Table 36 - CA250B Quick Reference176
CA4500B Quick Reference179
Figure 132 - CA4500B Control Board179
Table 37 - CA4500B Quick Reference180
CA8500B Quick Reference183
Figure 133 - CA8500B Control Board183
Table 38 - CA8500B Quick Reference184
EC1500B Quick Reference187
Figure 134 - EC1500B Control Board187
Table 39 - EC1500B Quick Reference188
EC2500B Quick Reference191
Figure 135 - EC2500B Control Board191
Table 40 - EC2500B Quick Reference192
Table 41 - Circuit Board Current Ratings194
Current Ratings194
Table 42 - List of Relay States195
Relay States195
Warranty197
Index198
